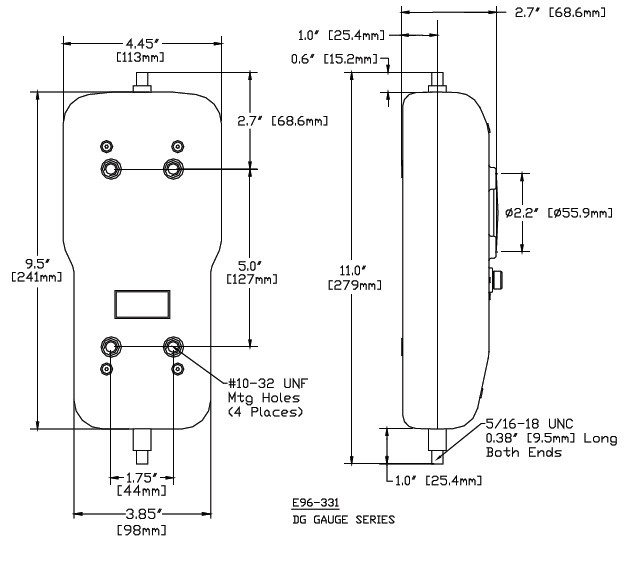

Specifications Chart

The Chatillon DG-series mechanical force gauge is ideal for a wide range of force testing applications up to 500 pounds. Based on Chatillon's popular DPPH series force gauge, the DG-series force gauges feature a larger, 2.25" dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +/-0.5% of full scale. The DG force gauge is an excellent, economical solution for tensile or compression testing.

The Chatillon DG Series gauge may be used as a hand-held device or can be equipped with optional handle set for two-hand operation. It is ideal for test stand applications, and when combined with the MT-500 series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 pounds.

The DG-series force gauge features an easy to read concentric dial that measures clockwise only. Dial rotates 360 degrees for taring. A peak hold switch captures peak readings and can be easilly and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in pounds, kilograms, or newtons versions. The DG gauges come complete with a protective carrying case and a set of stainless steel attachments. A certificate of calibration with NIST data is supplied standard.

• Accuracy: +/-0.5% of full scale
• Overload capacity: 110% of rated capacity
• Maximum overload: 150% of rate capacity
• Tare Capacity: 10% of rated capacity
• Dial resolution: 0.5% of full scale
• Deflection: 10 mm (.394") at full scale
• Operation Temperature: +40° to 110°F (+5° to +45° C)
• Instrument Weight: 5 lbs
• Shipping Weight 10 lbs
• Warranty: 2 years

Features:

• Easy to use, durable construction
• Tensile or compression testing
• Intrinsically safe
• Capacity up to 500 pounds (also newtons and kilograms versions available)
• Push or pull operation
• Tare ring
• Peak capture
• Universal Mounting Plate
• NIST calibration with data

Chatillon DG-Series Force Gauges
FREE Shipping
currently in stock
Shipping Weight: 10 lbs. (estimate shipping cost)
Other Force Testing Equipment
Other Chatillon Ametek gauges

Select DG-200 - $799.00 DG-300 - $799.00 DG-400 - $799.00 DG-500 - $799.00 DG_100KG - $799.00 DG-250KG - $799.00 DG-1000N - DG-2500N - $799.00 Adapter for DG Series to MT500 (SPK-MT-0005), Add $198.90 TT Adapter (SPK-DG-TT), Add $165.60 Hook with Latch 500 lbf Thread 5/16-18F (NC002500), Add $135.85 V-Notch Fixture, Large 500 lbf Thread 5/16-18F (NC000725), Add $63.65 V-Notch Fixture, Small 500 lbf Thread 5/16-18F (SPK-FMG-142), Add $55.10 Curved Compression Fixture 500 lbf Thread 5/16-18F (SPK-FMG-012B), Add $57.00 Compression Plate, Flat 500 lbf Thread 5/16-18F (SPK-FMG-143), Add $61.75 Palm Fixture (Mushroom) 500 lbf Thread 5/16-18F (SPK-FMG-144), Add $102.00 Compression Plate, Small (Rectangular) 500 lbf Thread 5/16-18F (SPK-FMG-145), Add $45.60 Grasping Loop 500 lbf (NC002844) , Add $57.00 Handle Assembly (SPK-DG-HANDLE) , Add $164.35 Soft Carrying Case, Fanny Pack (NC002845) , Add $85.50

Chatillon DG-series force gauge with case and accessories

Standard Accessories: Stainless steel accessories are included for performing a wide variety of measurements. Complete with a cushioned carrying case.

Optional Accessories: Optional gripping fixtures add flexibility to production, laboratory and general testing use. Please click here for the Chatillon line of gripping fixtures.

Test Stand Usage: The DG series force gauge can be mounted on Chatillon test stands for greater control of repetitive testing. Please click here for recommended Test Stand configurations
