Detecto's 7550 wall-mount wheelchair scale features a unique fold-up storage design that saves space when not in use. The 7550 easily accommodates most wheelchairs with its spacious 32.3-in W x 33-in D (82-cm W x 84-cm D) platform, and yet requires very little floor space when folded up. The slim 6.6-inch / 17-cm profile takes up minimal space when installed in a medical facility hallway, clinical office, or patient room.
- Compact Vertical Fold-Up Platform Conserves Space
- Pushbutton and Keypad Tare for Wheelchair Weights
- Accommodates Some Sizes of Power Wheelchairs
- May be Used on Carpet or Hard Floor Surfaces
- USA-Made Quality - ISO 9001:2008
- RS232 Serial and USB Ports Standard
- Body Mass Index Calculation
- Optional Printer Available

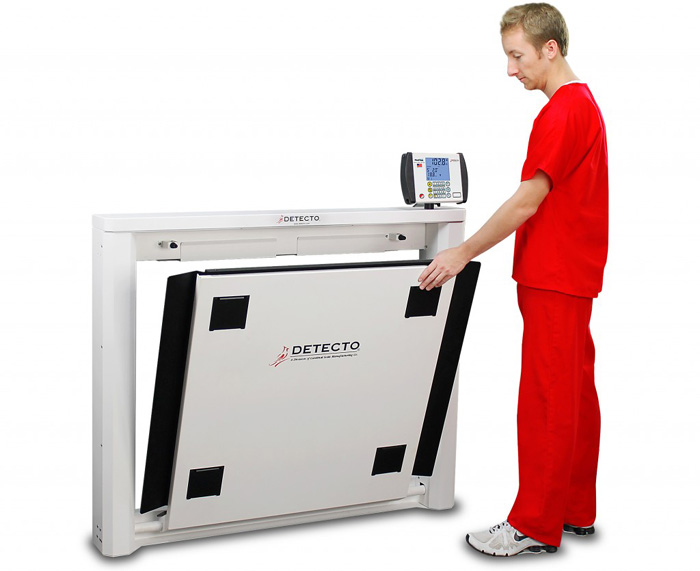

Compact Storage - After use, the 7550 may be folded up vertically to conserve space. Patients may be weighed in a wheelchair, chair, or standing
- Optional Wi-Fi for EMR/EHR
- Tilt-and-Swivel Rotating Indicator
- Sturdy Steel Construction for Durability
- Gas Spring Platform Lifting Mechanism
- Textured, Non-Skid Mat on Ramp and Platform
- Two-Way Easy Access Ramps
- Platform Lip to Hold Wheelchairs in Place on Scale
|
|
EFFICIENT MEASUREMENT - The 7550's MedVue® weight indicator is the clinical industry's most advanced, featuring EMR/EHR-ready serial, USB, and optional Wi-Fi connectivity, BMI calculation, yellow "quick keys" for basic weighing, and a multiline LCD display. The scale is powered by 6 C batteries (not included) or optional AC adapter.
The 7550's 1.5-inch/38-mm high platform is very low to the ground for easy patient access. This makes the process simple and minimal effort required in order to roll a patient on and off the weighing platform
- 2-Way Easy Access Ramps
- BMI Calculation
- Compact Vertical Fold-Up Platform Conserves Space
- Gas Spring Lifting Mechanism
- May be Used on Carpet or Hard Floor Surfaces
- RS232 Serial and USB Ports Standard
- Slim 6.6-inch Profile
- Spacious Platform
- Sturdy Steel Construction
- Wi-Fi and Ethernet Optional
| Model |
7550 |
| Price |
$4,414.51
In Stock - Ships within 24 hours
|
| Capacity x Readability |
1000 lb x 0.2 lb |
| 450 kg x 0.1 kg |
| PLATFORM DIMENSIONS (flat portion) |
32.3 in W x 33 in D x 1.5 in H |
| 81.9 cm W x 83.9 cm D x 3.8 cm H |
| Overall Dimensions |
Width: 50.3 in
Depth: 39.3 in (with platform extended)| 6.6 in (without platform extended)
Height: 48.8 in | 41.1 in (without indicator) |
Width: 127.6 cm
Depth: 99.7 cm (with platform extended)|16.8 cm (without platform extended)
Height: 123.8 cm (with indicator)| 104.4 cm (without indicator) |
| Weight Indicator Dimensions |
9.8 inch W x 6.8 inch H x 1.8 inch D |
| 248.9 mm W x 172.7 mm H x 45.7 mm D |
| LCD Display Size |
3.5 inch W x 3 inch H / 89 mm W x 76 mm H backlit blue LCD |
| Display |
Weight: 5 digit, seven segment, 0.875 inch / 22.2 mm high LCD
Height: 4 digit, seven segment, 0.5 inch / 12.7 mm high LCD
Body Mass Index: 3 digit, seven segment, 0.5 inch / 12.7 mm high LCD
ID: 14 digit, 14 segment, 0.35 inch / 8.9 mm high LCD |
| Resolution |
5,000 divisions, maximum |
| Keypad |
Sealed-membrane type with 19 color-coded keys |
| Connectivity Ports |
RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional) |
| Connectivity Ports |
RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional) |
| Power |
6 C cell Alkaline, Ni-Cad or NiMH batteries (not included)
OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR) |
| Battery Life |
7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF) |
| Weighing Mechanism |
USA-made electronic load cells |
| Lifting Mechanism |
Gas springs |
| Operating Temperature |
14º to 104º F (-10º to +40º C) |
| Construction |
Steel |
| Net Weight |
180 lb / 82 kg |
| Shipping Weight |
238 lb / 108 kg |
Detecto MV1 MedVue Medical Weight Analyzer Indicator
 Detecto's MedVue® medical weight analyzer is utilized on select clinical scales. The MedVue® features a striking blue 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue?s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and four different languages available in set-up (English, Spanish, French, and German). The MedVue® offers a host of both wired and optional wireless connectivity for sending measurement data to
Versatile Connectivity - DETECTO's MedVue medical weight analyzer offers a host of different options, both wired and optional wireless, for DETECTO scales to connect with multiple devices for efficient EMR/EHR.
Connect with:
- Printers
- PCs
- Networks
- Tablets
- Bar Code Scanners
- Even Mobile Phones
BENEFITS OF WI-FI CONNECTIVITY - DETECTOs MedVue offers optional Wi-Fi connectivity with up to 20 ft. range (varies depending upon environmental conditions). Wi-Fi offers a number of benefits over Bluetooth, including greater range and security.
Almost every MedVue port may be used simultaneously (with the exception of Ethernet and Wi-Fi connections).
For instance, a printer could be connected to the serial port, PC connected to the USB port, while a tablet is connected via Wi-Fi all at the same time. DETECTOs model P50 printer offers plug-and-play compatibility with the MedVue
350-Degree Swivel Mounting Bracket - Enjoy freedom of movement wherever you need to position the display with the MedVues 350-degree tilt-and-swivel mounting bracket.
EASY SET-UP NAVIGATION -
DETECTOs MedVue indicator features a tiered menu system with up/down navigation controls to quickly update any settings you wish to change, such as converting to kilograms-only weighing or lowering the backlight intensity to make the batteries last longer
MULTIPLE LANGUAGE SETTINGS -
DETECTOs MedVue features user-prompting in four different languages:
- English
- Spanish
- French
- German
- 14-Digit Patient ID
- 350-Degree Swivel Mounting Bracket
- 6 AA Batteries (not included)
- 99 Stored Tare Weights
- BMI Calculation
- EMR/EHR Ready
- Nearly 1-in-High Weight Readouts
- NTEP Legal for Trade
- RS232 Serial and USB Ports Standard
- Sturdy Steel Construction
- Wi-Fi and Ethernet Optional
|
