Mark-10 R04 Miniature Force Sensors	Authorized Dealer
Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions.
Force Measurement >> Mark-10

View Specifications Cart View Test Stands Specifications Chart

Mark-10 R04 Miniature Force Sensors FREE UPS Ground Shipping (within the 48 continental US States) Model: Select MR04-025 $1,662.50 MR04-05 $1,662.50 MR04-2 $1,662.50 MR04-5 $1,662.50 MR04-10 $1,662.50 MR04-20 $1,662.50 MR04-50 $1,662.50 MR04-100 $1,662.50

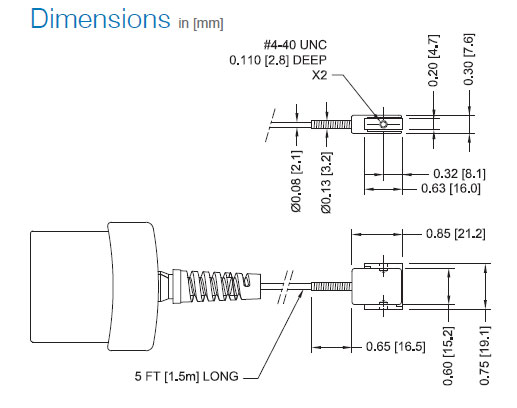

Series R04 smart sensors are designed for tension and compression measurement applications with tight space constraints. These extremely compact force sensors feature threaded holes on two sides, which can accept a variety of hooks and implements. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.

• Compatible with the 3i, 5i and 7i digital indicators
• Unique Plug & TestTM connector holds all calibration and configuration data
• Ultra-compact size
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration included
• Accuracy: ± 0.2% of full scale ±1 digit + indicatorWeight: 0.015 lbs (0.007 kg)
• Warranty: 3 years

Model		MR04-025	MR04-05	MR04-2	MR04-5	MR04-10	MR04-20	MR04-50	MR04-100
		$1,662.50	$1,662.50	$1,662.50	$1,662.50	$1,662.50	$1,662.50	$1,662.50	$1,662.50
Capacity x Resolution With Model 3i	lbF	0.25 x 0.0002	0.5 x 0.0005	2 x 0.002	5 x 0.005	10 x 0.01	20 x 0.02	50 x 0.05	100 x 0.1
	gF	100 x 0.1	250 x 0.2	-	-	-	-	-	-
	kgF	-	-	1 x 0.001	2.5 x 0.002	5 x 0.005	10 x 0.01	25 x 0.02	50 x 0.05
	N	1 x 0.001	2.5 x 0.002	10 x 0.01	25 x 0.02	50 x 0.05	100 x 0.1	250 x 0.2	500 x 0.5
Capacity x Resolution With Model 5i	lbF	0.25 x 0.0001	0.5 x 0.0002	2 x 0.001	5 x 0.002	10 x 0.005	20 x 0.01	50 x 0.02	100 x 0.05
	ozF	4 x 0.002	8 x 0.005	32 x 0.02	80 x 0.05	160 x 0.1	320 x 0.2	800 x 0.5	1600 x 1
	gF	100 x 0.05	250 x 0.1	1000 x 0.5	2500 x 1	5000 x 2	10000 x 5	25000 x 10	50000 x 20
	kgF	-	-	1 x 0.0005	2.5 x 0.001	5 x 0.002	10 x 0.005	25 x 0.01	50 x 0.02
	N	1 x 0.0005	2.5 x 0.001	10 x 0.005	25 x 0.01	50 x 0.02	100 x 0.05	250 x 0.1	500 x 0.2
	mN	1000 x 0.5	2500 x 1	-	-	-	-	-	-
