The Economical Choice for Jewelry Weighing!
The OHAUS PAJ Gold and Carat Series of precision jewelry balances are designed for basic routine
weighing in general and legal-for-trade jewelry applications, and offer uncomplicated performance for
all your basic weighing needs.

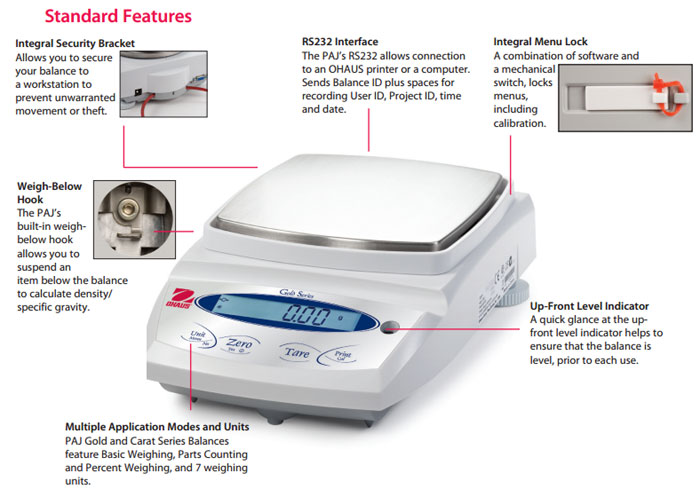

Standard Features Include:
- The large weighing pan—Large amounts of precious metals and gemstones can be accommodated in a single batch.
- Bright backlit LCD display—With a bright backlit LCD display, and auxiliary display available as an accessory, PAJ Gold and Carat Series displays can be read, even in dimly lit areas.
- Internal calibration—Internal calibration is available in select models to ensure the accuracy of weighing.

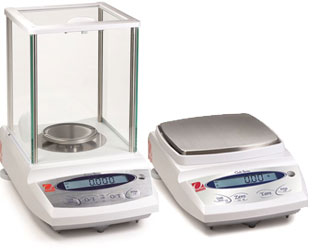

PAJ Gold and Carat Series Jewelry Balances
Multiple Modes and Weighing Units
Each PAJ Gold and Carat Series Balance can be set-up to weigh in one or more weighing units, including g, ct, lb,
oz, ozt, GN, dwt. The PAJ Series also includes weighing modes for parts counting and percent weighing, and a
weigh-below balance hook.
Up-front Level Indicator Ensures Accuracy
The PAJ has been designed with an up-front level indicator, eliminating the need to
look behind the balance during the leveling process. A quick glance at the up-front
level indicator helps you ensure that the balance is level prior to each use.
Selectable Environmental Settings For Working in
Practically Any Condition
To help adapt the balance to real life working conditions, the PAJ is
designed with selectable environmental settings. When working in harsh
environments, the balance can be adjusted to compensate for vibrations
and other disturbances. Conversely, the balance can be adjusted for
working in slow filling applications where sensitivity is a must.
|
|
| Model with Internal Calibration |
PAJ1003CN |
PAJ2003CN |
$2,187.57
|
$1,256.34
|
| Capacity x Readability |
1050 x 0.001 ct |
2050 x 0.01 ct |
| Repeatability |
0.001 ct |
0.01 ct |
| Linearity |
0.002 ct |
| Legal For Trade |
NTEP CC 09-043
Measurement Canada NoA AM-5717 |
| Class I |
Class II |
| Legal Capacity x Readability |
1050 x 0.01 ct |
2050 x 0.1 ct |
| Tare Range |
To capacity by subtraction |
| Stabilization |
4 Seconds |
3 Seconds |
| Calibration |
CN models: Internal InCal Calibration or external calibration/all other models external calibration only |
| Linearity Calibration masses |
100 g, 200 g |
200 g, 400 g |
| Pan Size |
Ø3.5in / Ø9cm |
Ø4.7in/Ø12cm |
| Application Modes |
Weighing, parts counting (with APW optimization), percentage weighing |
| Weighing Units |
g, mg, ct, oz, ozt, gn, dwt |
| Interface |
RS232, bi-directional |
| Power |
AC adapter (included) |
| Operating Conditions |
50° F / 10° C to 86° F / 30° C at 10% to 80% relative humidity, non-condensing |
| Storage Temperature |
-40° F / -40° C to 131° F / 55° C at 10% to 80% relative humidity, non-condensing |

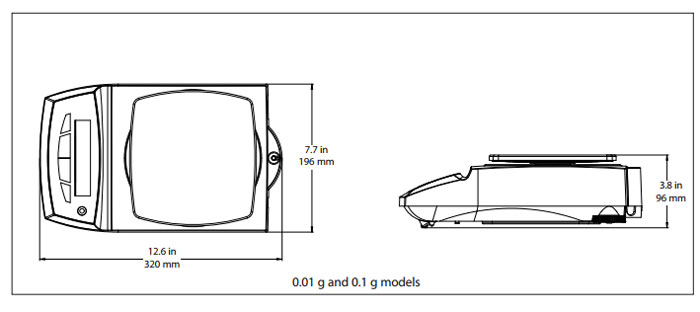

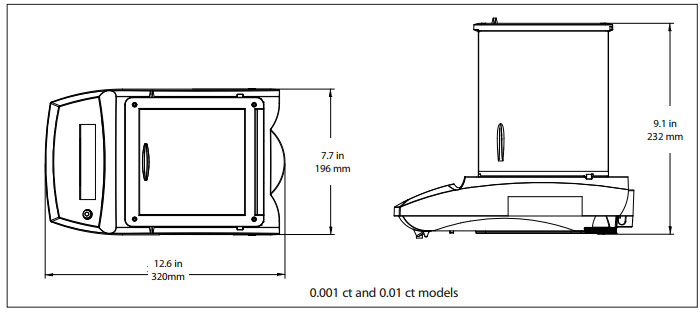

Balance Dimensions
(W × H × D) |
7.7 x 12.6 x 9.2 in
196 x 320 x 232 mm |
Carton Dimensions
(L × W × H) |
19.1 x 15.0 x 20.4 in
485 x 380 x 517 mm |
| Net Weight |
10.1 lb/4.6 Kg |
| Shipping Weight |
16.5 lb/7.5 Kg |
| Compliance |
Metrology: NIST Handbook 44 (NTEP CC 09-043);
Canada Weights and Measures Regulations (Measurement Canada NoA AM-5717)
Product Safety: CAN/CSA-C22.2 No. 61010-1; UL Std. No. 61010-1
Electromagnetic Compatibility: FCC Part 15 Class A; Industry Canada ICES-003 Class A
|
|
