Intercomp CS3000 100683-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 10,000 x 2lb

Features

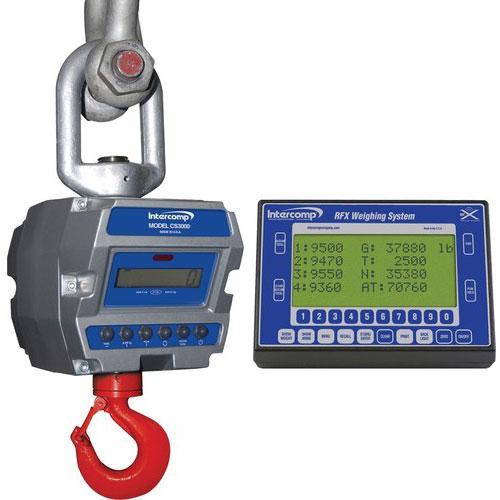

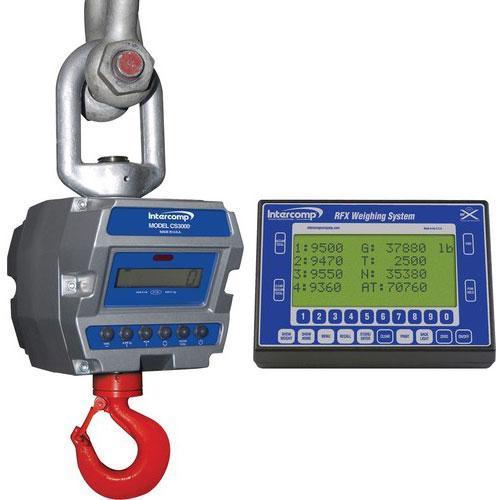

Rugged Crane Scale Comes Standard with S1 Swivel Hook & Handheld RFX™ Wireless Indicator

The CS3000™ now features Fully Integrated RFX™ Wireless Weighing Technology and Includes the new Handheld RFX™ Wireless Weighing Indicator which controls scale functions of multiple scales at safe distances, improving any operation. Available in capacities ranging from 2,000lb (1,000kg) to 100,000lb (50,000kg). The Ultra high-resolution, A/D conversion delivers unsurpassed accuracy and digital keypad setup and calibration enhance the ease of operation.

All crane unit electronics are shock-mounted in a weatherproof case and provide maximum protection against moisture, dust and rough usage.

Standard, commercially available, alkaline batteries last up to 3,000 hours in the scale, minimizing down time due to battery charging or replacement.

CS3000 Crane Scales

Fully Integrated RFX™ Wireless Weighing Technology
2,000lb (1,000kg) to 100,000lb (45,000kg) Capacities Available
Handheld RFX™ Wireless Weighing Indicator Fully Controls Scale Functions
NTEP Approved Models Available (Marked with *)
Large, Easy-to-Read 1½ LCD Display on Scale
0.5½ Backlit Display Characters on the Indicator
Standard D-Cell Rechargeable Batteries Last up to 3,000 Hours
in Scales & Rechargeable AA Batteries Last up to 40 Hours in
Handheld RFX™ Wireless Indicator

Includes:

Handheld RFX™ Wireless Indicator with Rechargeable Batteries, Battery Charger & Case
Top Eye Hook
Crosby S-1 Swivel Hook

Handheld RFX Wireless Indicator

Rfx ™ Wireless Indicator Eliminates the Use of Cables.

Wireless Weighing Saves Time & Increases the Efficiency & Safety of Weighing Operations
Control Scale Functions Directly from the Indicator, Including On & Off!
Easy to Use Indicator Allows Users to Show the Weights in Cumulative Total, Individual Weights Per Pad or Scale, and/or Center of Balance, has the Ability to Store & Recall Up to Ten Arm Records & Offers Continuous & On Demand Print Outputs for Up to Six Scales
The Indicator also Offers a ‘Read-Only’ Selection for Use with Pc Software
Batteries Not Included
View PDF

Specifications

Models	100681-RFX	100682-RFX	100683-RFX	100684-RFX	100685-RFX	100686-RFX	100687-RFX	100688-RFX
>Capacity Graduation	2,000 x 1 lb 1,000 x 0.5 kg	5,000 x 1 lb 5,000 x 0.5 kg	10,000 x 2 lb 5,000 x 1kg	20,000 x 5 lb 10,000 x 2 kg	30,000 x 10 lb 15,000 x 5 kg	50,000 x 10 lb 25,000 x 5 kg	70,000 x 20 lb 35,000 x 10 kg	100,000 x 20 lb 50,000 x 10 kg
Legal For Trade	YES	YES	YES	YES	YES	YES	YES	-
Legal For Trade	NTEP #97-135A4							-
Weight	52 lb	60 lb	60 lb	100 lb	125 lb	225 lb	253 lb	397 lb
Performance Accuracy:	±0.1% of reading
Controls General:	Power, Accum Total, Mode, Zero,lb/kg, Tare
Display:	1½ (265mm) LCD on Scale 0.5½ (13mm) Backlit Display on Indicator
Indicators:	Lb, Kg, Net, Gross, Total, Tare, S1, S2, Peak, Battery Life
Environmental Humidity:	10 to 95% Non-Condensing
Temperature:	-4° to 140°F (-20° to 60°C)
Physical Overload:	200% of Capacity
Electrical Battery in Scales:	Standard Alkaline or Rechargeable D-Cell
Battery Life in Scales:	3,000 Hours
Battery in Indicator:	Standard Alkaline or Rechargeable AA
Battery Life in Indicator:	40 Hours

Dimensions

Other Models

Other Intercomp CS3000 with RFX Wireless Indicator

Image	Name			Price
	Intercomp CS3000 100681-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 2,000 x 1lb SKU: 100681RFX Capacity x Readability : 2000 lb x 1 lb Legal For Trade: 2000 lb x 1 lb More Info			$3,415.50
	Intercomp CS3000 100682-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 5,000 x 1lb SKU: 100682RFX Capacity x Readability : 5000 lb x 1 lb Legal For Trade: 5000 lb x 1 lb More Info			$3,505.50
	Intercomp CS3000 100683-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 10,000 x 2lb SKU: 100683RFX Capacity x Readability : 10000 lb x 2 lb Legal For Trade: 10000 lb x 2 lb More Info			$3,595.50
	Intercomp CS3000 100684-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 20,000 x 5lb SKU: 100684RFX Capacity x Readability : 20000 lb x 5 lb Legal For Trade: 20000 lb x 5 lb More Info			$5,395.50
	Intercomp CS3000 100685-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 30,000 x 10lb SKU: 100685RFX Capacity x Readability : 30000 lb x 10 lb Legal For Trade: 30000 lb x 10 lb More Info			$5,845.50
	Intercomp CS3000 100686-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 50,000 x 10lb SKU: 100686RFX Capacity x Readability : 50000 lb x 10 lb Legal For Trade: 50000 lb x 10 lb More Info			$8,905.50
	Intercomp CS3000 100687-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 70,000 x 20lb SKU: 100687RFX Capacity x Readability : 70000 lb x 20 lb Legal For Trade: 70000 lb x 20 lb More Info			$12,145.50
	Intercomp CS3000 100688-RFX Crane Scale w/S1 Swivel & Eyehook & Wireless Indicator, 100,000 x 20lb SKU: 100688RFX Capacity x Readability : 100000 lb x 20 lb More Info			$15,745.50

Optional Accessories

more info	Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable) more info Price: $535.50 In Stock This compact, fully featured, portable thermal printer is the perfect printer for your weighing system application. The small, lightweight design ensures this printer can be used on the go, and its high speed, low noise mechanism is perfect for any environment. This printer features a long life print head with high reliability, easy paper handling, a large capacity Lithium-ion rechargeable battery, and your choice of paper diameters up to 40mm. GENERAL SPECIFICATIONS Interface Serial Interface Printing System Direct Thermal Printing Printing Speed 50mm/Sec Character matrix ASCII Code, Alphanumeric Characters, International Characters, Windows Code Page Characters Per Line 32 - 42 Characters per Line, Two Font Size Choices Paper Width 58 +/-0.5mm Recommended Paper TF50-KS-E2D (Nippon Paper) External dimensions 4.5"x4"x2.5"/116W x 104L x 63Hmm 5°C - 40°C, 41°F - 104°F Weight Less Than 1lb Printer Includes: Printer 1 Sample Roll of Paper AC Adapter Battery Serial Cable Fully compatable with Intercomps CS750 Crane Scale, CS1500 Crane Scale, CS3000 Crane Scales, CS5000 Crane Scales, TL6000 Tension Link Scales, CW250 Cargo Scales, TB830 Twin Beam Scales, US840 U-Beam Scales, PT300 Wheel Load Scales, LP600 Low-Profile Wheel Load Scales, GP1000 Indicator, GP1200 Indicator, GP2000 Indicator, GP2000EM Indicator and the MS450 Mining Scale Systems.

more info	Intercomp Part 101231, Cable, to Thermal Printer, 15 ft. more info Price: $145.00 In Stock Cable for Thermal Printer, 15 ft.

more info	Intercomp Part 101233, Cable, RS232/USB output, 15 ft. more info Price: $149.00 In Stock Cable, serial output, 15 ft.
