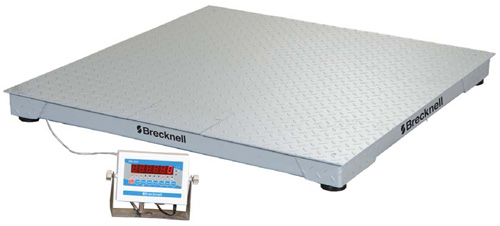

The Salter Brecknell DSB-Series Floor Scale Systems is Versatile Indicator For many applications including shipping, counting, totalizing and check weighing functions NTEP certified at 5,000 divisions, Class lll.Rugged Construction Thick safety tread top plate with heavy duty welded wide channel supports. Functions Checkweighing, count, weight, total and print.

• Capacity – 2500 lb x 0.5 lb / 5000 lb x 1 lb / 10,000 lb x 2 lb
• Legal for Trade - NTEP certified at 5,000 divisions, Class lll
• Versatile Indicator – For many applications including shipping, counting, totalizing and check weighing functions
• Power - AC adapter (included) or external customer supplied 12Vdc
• Finish – Powder coat paint
• Load Cells – Four alloy steel potted load cells
• RS-232 – Standard serial string with time and date
• Function – Checkweighing, count, weight, total and print
• Rugged Construction – Thick safety tread top plate with heavy duty welded wide channel supports

Model	DSB3636-02.5	DSB4848-05	DSB6060-05	DSB4848-10	DSB6060-10
Capacity x Readability	2500 x 0.5 lb	5000 x 1 lb	5000 x 1 lb	10000 x 2 lb	10000 x 2 lb
	1250 x 0.2 kg	2500 x 0.5 kg	2500 x 0.5 kg	5000 x 1 kg	5000 x 1 kg
Platform size	36" x 36"	48" x 48"	59" x 59"	48" x 48"	59" x 59"
Legal for Trade	Base: NTEP CC #11-081 - Indicator: NTEP CC #11-082
Accuracy:	NTEP at 5000 divisions, Class III
Floor Scale Material	Mild steel with 5 mm / 0.19" deck with safety tread
Height Dimension	min 102 mm / 4.0"; max 118 mm / 4.6
Finish	Powder coat paint
Overload Protection	150% of rated capacity
End Loading	100% of rated capacity
Operating Temperature	-10° C to 40° C / 14° F to 104° F
Interface Cable Length	4.6 m / 15 Foot
Indicator	SBI-505
Indicator Construction	Mild steel with stainless steel desk stand or wall mount stand
Indicator Dimensions	47 mm (W) x 220 mm (L) x 149 mm (H) 1.875" W x 8.675" L x 5.875" H
Finish	Powder coat paint
Rated	IP65
Display	Six digit 20 mm / 0.8" high red LED
Annunciators	-0-, motion, Gross, Net, tared, Total, pcs, lb, kg, Lo, OK, Hi
Interface	RS-232: Female DB9 connection
Operator Keys	On/Off, Total, Count, kg/lb, Gross, Tare, Zero, Print
Power	120/220VAC; Output: 9.0V center positive
Calibration	Front panel accessible
Warranty	Three year parts only from time of purchase. Consult factory

Load Cell Rated: NTEP, IP65
J-Box Construction: Mild steel
Loadcell Material: Alloy tool steel potted
Loadcell Rated Output: 3 mv/V
Loadcell Output Resistance: 350 ohm
J-Box Access: Top access for easy installation and service
Leveling Feet: Four top access holes for quick installation
Threaded Eye Bolts: Four threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corners to prevent damage to leveling feet while installing the scale
