OverviewHigh resolution, full-featured counting scale with bright, easy to read fluorescent displays for piece count, unit weight and count weight. Memory to store and retrieve up to 300 unit weights (and tare) by ID number. Durabale for industrial environments
Capacity x Readability
Manufature:
AND Weighing10 kg x 1 g Pan Size 12.4 x 10.6 in SKU: FC-10K Weight: 15.00 lb |

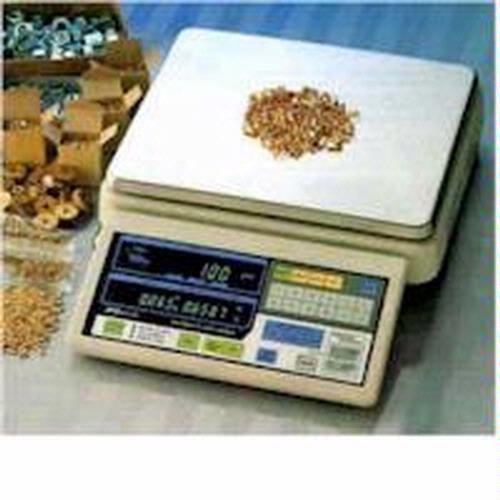

The AND FC-10K high resolution, full featured digital counting scale is durable for use in industrial environments. Removable display pad for wall or desktop operation. 300 unit memory. 10 kg (20 lb) capacity with 1 g (0.002 lb) readability. The FC Series high resolution counting scales provide easy-to-use, versatile weighing features for many applications. These rugged scales include detachable displays for greater flexibility in use. AND Weighings FC-series counting scales are durable for use in industrial weighing environments, yet are easy to use. Counting is as easy as just pressing two keys - the scale handles the rest!
Model | FC-500 | FC-1000 | FC-2000 | FC-5000 | FC-10K | FC-20K | FC-31K | FC-50K |
---|---|---|---|---|---|---|---|---|
Capacity (kg) |
0.5 kg |
1 kg |
2 kg |
5 kg |
10 kg |
20 kg |
31 kg |
50 kg |
Resolution |
0.05 g |
0.1 g |
0.2 g |
0.5 g |
1 g |
2 g |
5 g |
5 g |
Capacity (lb) |
1 lb |
2 lb |
5 lb |
10 lb |
20 lb |
50 lb |
75 lb |
100 lb |
Resolution (lb) |
0.0001 lb |
0.0002 lb |
0.0005 lb |
0.001 lb |
0.002 lb |
0.005 lb |
0.01 lb |
0.01 lb |
Sample Size |
10 pcs normal - 5, 25, 50, 100 or random number, user selectable | |||||||
Min Unit Weight (1/50,000 mode) |
0.01 g |
0.02 g |
0.04 g |
0.1 g |
0.2 g |
0.4 g |
0.5 g |
1 g |
Min Unit Weight (1/500,000 mode) |
0.001 g |
0.002 g |
0.004 g |
0.01 g |
0.02 g |
0.04 g |
0.1 g |
0.1 g |
Pan Size (mm/inches) |
205 x 152 |
315 x 270 | ||||||
Internal Resolution |
1/500,000 (FC-31K-1/300,000 | |||||||
Sensitivity Drift |
20 ppm/°C(5°C ~ 35°C) | |||||||
Operating Temp |
-5°C ~ 40°C | |||||||
Display |
Fluorescent blue - weight (g digits), Unit weight (5 digits), Count (*5 digits) | |||||||
Power |
100, 120, 220, 240 VAC 50/60 Hz (AC adapter) or optional NiCd Battery Pack - operating time approximately 10 hours (main scale only) | |||||||
Weight Sensor |
Load cell | |||||||
Max count pieces |
up to 999,999 pcs (accumulated) | |||||||
Dimensions (mm/inches) |
330 W x 432 D x 93 H (13 W x 17 D x 3.7 H) |
Image | Name | Price | ||
---|---|---|---|---|
AND FC-500 Digital Counting Scale, 500 g x 0.05 g
SKU: FC-500 Capacity x Readability : 500 g x 0.05 g Pan Size: 8.1 x 6 in More Info |
$1,165.00 |
|||
AND FC-1000 Digital Counting Scale, 1000 g x 0.1 g
SKU: FC-1000 Capacity x Readability : 1000 g x 0.1 g Pan Size: 8.1 x 6 in More Info |
$1,165.00 |
|||
AND FC-2000 Digital Counting Scale, 2000 g x 0.2 g
SKU: FC-2000 Capacity x Readability : 2000 g x 0.2 g Pan Size: 12.4 x 10.6 in More Info |
$1,165.00 |
|||
AND FC-5000 Digital Counting Scale, 5000 g x 0.5 g
SKU: FC-5000 Capacity x Readability : 5000 g x 0.5 g Pan Size: 12.4 x 10.6 in More Info |
$1,165.00 |
|||
AND FC-10K Digital Counting Scale, 10,000 g x 1 g
SKU: FC-10K Capacity x Readability : 10 kg x 1 g Pan Size: 12.4 x 10.6 in More Info |
$1,165.00 |
|||
AND FC-20K Digital Counting Scale, 20 kg x 2 g
SKU: FC-20K Capacity x Readability : 20 kg x 2 g Pan Size: 12.4 x 10.6 in More Info |
$1,165.00 |
|||
AND FC-50K Digital Counting Scale, 50 kg x 5 g
SKU: FC-50K Capacity x Readability : 50 kg x 5 g Pan Size: 12.4 x 10.6 in More Info |
$1,345.00 |
