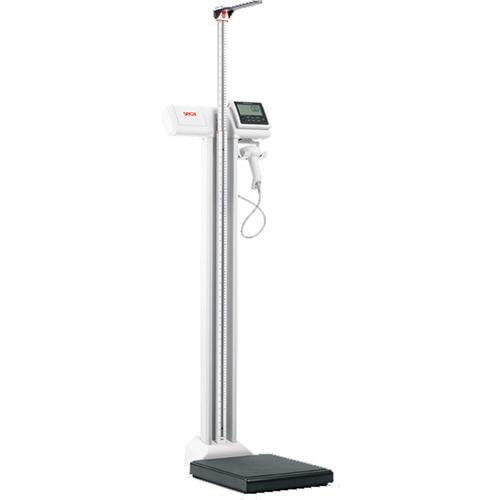

| With its Wi-Fi interface the seca 797 can be integrated directly into your EMR system. Measure weight with the tilt-proof full metal platform and determine height with the convenient digital measuring rod, identify patients with your connected USB scanner and send the measurements into the correctly assigned medical record. This workflow prevents transcription errors, ensures availability of all data and maximizes staff efficiency. more ... |
| Medical Equipment > Medical Scales > Physician Scales - Digital | ||||||
|
||||||
OverviewWith its Wi-Fi interface the seca 797 can be integrated directly into your EMR system. Measure weight with the tilt-proof full metal platform and determine height with the convenient digital measuring rod, identify patients with your connected USB scanner and send the measurements into the correctly assigned medical record. This workflow prevents transcription errors, ensures availability of all data and maximizes staff efficiency.
Capacity x Readability
Manufature:
Seca550 lb x 0.2 lb Pan Size 13.8 x 16.5 in SKU: 7971821004 Dimensions X: 34.00 Y: 16.00 Z: 8.00 Weight: 20.00 lb |
||||||
With its Wi-Fi interface the seca 797 can be integrated directly into your EMR system. Measure weight with the tilt-proof full metal platform and determine height with the convenient digital measuring rod, identify patients with your connected USB scanner and send the measurements into the correctly assigned medical record. This workflow prevents transcription errors, ensures availability of all data and maximizes staff efficiency.
The sophisticated way of integrating weight and height
With its built-in Wi-Fi module the seca 797 is the perfect fit for seamless network
integration of weight and height into your EMR (electronical medical record).
In addition to information system connectivity, the seca 797 boasts a tilt-proof
full metal platform and a stable single piece column with a display at eye-level.
It is a quality every patient will notice, as soon they set foot on the platform. The
scale is easy to move by staff due to the large rubber coated castors and a wide
wheelbase. Absolute sturdy construction
With its absolute sturdiness, the seca 797 gives patients (especially those
affected by obesity) a greater sense of security when stepping on the platform.
The digital measuring rod is firmly attached to the column and provides an extra
long measuring range. A generous two-line display shows weight and height
simultaneously and automatically calculates patients’ BMI. The damping
system and auto-HOLD function enable quick and precise measurements. seca integration solutions:
How workflows can be decisively improved.
The seca 797 can be integrated into your information system via the network. At the
push of a button, measured values can be sent directly to the electronic medical
record (EMR), where they are immediately available to all users. Extended with
an optional USB barcode scanner, both patient and user are identified and the
measurement results are always correctly assigned. This saves time, increases
process reliability and eliminates transmission errors.
Functions and Properties
| Model | seca 787 |
|---|---|
| Capacity x Readability | 550 x 0.2 lb 250 kg x 100 g |
| Platform | 13.8 x 16.5 x 2.3 inch 35.0 x 41.8 x 5.9 cm |
| Measuring range | 4 – 90 inch / 10 – 230 cm (digital measuring range 48 – 90 inch / 122 – 230 cm) |
| Weight | 28.0 lbs 12.7 kg |
| Power supply | Batteries, power adapter (optional) |
| Data transmission | LAN or Wi-Fi via interface module seca 452 (optional) |
| Functions | TARE, HOLD, Auto-HOLD, Damping (motion filter), lbs/kg switch-over lock, automatic BMI, USB-port and holder for scanner |
| Electromagnetic radiation resistance | According to IEC 60601-1-2 |
| Capacity | 250 kg 550 lbs |
| Graduation | 100 g 0.2 lbs |
| Unit | kg/lbs and cm/inch |
| Net weight | 28.0 lbs 12.7 kg |
| kg/lbs switch-over | true |
| Measuring range | 10 - 230 cm 4 - 90 inch |
| Platform width | 13.8 inch 350 mm |
| Platform height | 2.3 inch 59 mm |
| Platform depth | 16.5 inch 418 mm |
| Product width | 16.1 inch 410 mm |
| Product height | 53.4 inch 1,356 mm |
| Product depth | 22.7 inch 576 mm |
| Ports | USB bar code scanner Wi-Fi |
| Power supply | Batteries, Optional power adapter |
| Graduation measuring range | 1 mm 1/8 inch |
| Measuring range digital | 122 - 230 cm 48 - 90 inch |
| Batteries quantity and type | 6 X AA |
|
||||||||||||
