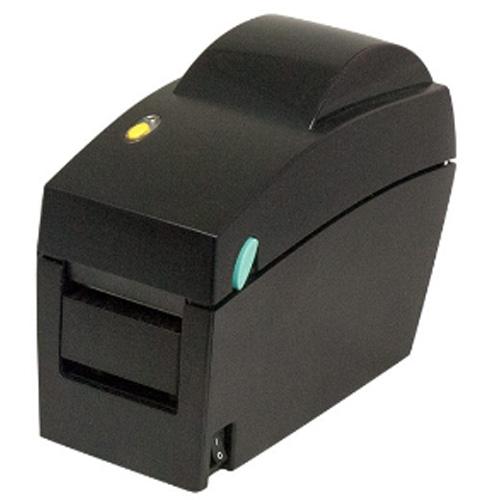

OverviewCAS DT2X-01 Thermal Label Printer for S2000 Jr w/USB & JS21 |
||||||
Ultra-light and compact, the DT2x direct thermal printer works seamlessly with the versatile S2000 Jr Price Computing Scale. Fast print speeds The printer includes one standard label format on the new LST-8000B blank label.With /USB & JS21
| MODEL | DT2X-01 | |
|---|---|---|
| Print Method | Direct Therma | |
| Resolution | 203 dpi (8 dots/mm) | |
| Print Speed | 7 IPS (177 mm/s)** | |
| Print Width | 2.12" (54 mm) | |
| Print Length | Min 0.16" (4 mm)** / Max 68" (1727 mm) | |
| Processor | 32 Bit RISC CPU | |
| Memory | Flash | 4 MB Flash (2 MB for user storage) |
| SDRAM | 16 MB | |
| Sensor Type | Fixed transmissive sensor, central aligned, adjustable reflective sensor | |
| Media | Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Width | Min 0.6" (15 mm) ~ Max 2.36" (60 mm) | |
| Thickness | Min 0.0024" (0.06 mm) ~ Max 0.008" (0.2 mm) | |
| Label Roll Diameter | Max 5" (127 mm) | |
| Core Diameter | 1" (25.4 mm) , 1.5" (38.1 mm) | |
| Printer Language | EZPL, GEPL, GZPL Auto Switch | |
| Interface | USB 2.0 / Serial Port: RS-232 (DB-9) / IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) | |
| Control Panel | One Tri-color LED: Power (Green, Orange, and Red) / Function Key: FEED | |
| Power | Auto Switching 100-240V AC, 50-60Hz | |
| Real Time Clock | Standard | |
| Environment | Operating Temperature | 41º F to 104º F / 5 º C to 40 º C |
| Storage Temperature | -4º F to 122º F / -20 º C to 50 º C | |
| Humidity | Operation | 30 - 85%, non-condensing) |
| Storage | 10 - 90%, non-condensing | |
| Approvals | CE (EMC), FCC Class A, CB, cUL and CCC | |
| Dimension | 0.015% / CTYP (SC~35C / 41F~95F) | |
| Weight | 2.65 lbs / 1.2 kg | |
| Options & Accessories | Label Dispenser, Print Head, Labels | |
|
||||||||||||||||
