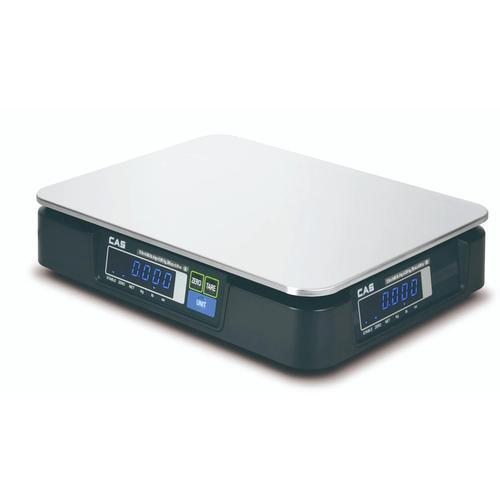

CAS PDN-60 POS Interface Scale 15 x 11 inch 60 x 0.01 lb

Features

Say goodbye to complicated weighing processes and hello to seamless transactions with the CAS PDN POS Interface Scale. Designed to elevate your retail experience, this cutting-edge scale combines precision with user-friendliness, making every sale a breeze. The CAS PDN scale works together with your Point of Sale (POS) system or ECR. Product weights are transferred directly into the transaction. No manual entry, no delays – just a swift and accurate sale.

The CAS PDN Series is the perfect scale for needing modern POS hardware on a budget. Available in 12, 30, & 60 lb. capacities, the PDN Series connects with most cash registers and POS Systems. These user-friendly scales are effortless to set up, making it perfect for any shipping or retail sector selling items by weight.

Cut down on your waiting time by connecting to your POS System via Bluetooth (coming soon), USB, or Serial connectivity. The PDN has two easy to read LED, tilt displays ensuring that both operators and customers can easily view weight information at the time of sale.

The PDNs low profile and lightweight design makes it a space efficient product, streamlining your POS and enhancing the customer experience.

Key Features:

12, 30, & 60 lb Capacities
Weighs in lbs, oz, & kg
Easy to Read, Operator & Customer Tilt LED Displays
Low Profile Design - Space Efficient
Optional Remote Display (Coming Soon)
Interfaces with ECRs & POS Systems
Connectivity Options - USB & R232C. (Bluetooth will be available the 2nd half of 2024)
Legal For Trade- NTEP approved

INTERFACE & POWER OPTIONS
The PDN is powered through the USB port. No need for extra cables in your point-of-sale set up. Simply connect the USB cable to a POS terminals USB port. If using the optional Bluetooth or RS-232C ports, then power up the PDN using the optional AC power block with the USB cable

CRYSTAL-CLEAR DISPLAY
The bright and easy-to-read display ensures that both operators and customers can easily view the weight of the product being purchased. Clarity and transparency are just part of the PDN Scales commitment to enhancing your retail environment.

OPTIONS

Remote Display
Bluetooth Communications
Interface Cables
Edge Tray
USB AC Power Block

Connect to most POS/ECR systems
Edge Tray for Recessed Applications
Easy to Read Crystal Clear Display

Specifications

Model	PDN-12	PDN-30	PDN-60	PDN-12B	PDN-30B	PDN-60B
Capacity x Readability	12 x 0.002 lb	30 x 0.005 lb	60 x 0.01 lb	12 x 0.002 lb	30 x 0.005 lb	60 x 0.01 lb
	6 x 0.001 kg	12 x 0.002 kg	30 x 0.005 kg	6 x 0.001 kg	12 x 0.002 kg	30 x 0.005 kg
	200 x 0.05 oz	400 x 0.1 oz	1000 x 0.2 oz	200 x 0.05 oz	400 x 0.1 oz	1000 x 0.2 oz
Leagal for Trade	NTEP: COC #22-046
Connectivity	USB & R232C			USB/Bluetooth
Internal Resolution	1/60,000
External Resolution	1/6,000 (lb/kg) / 1/4,000 (oz) - Single Range
Max. Tare	-11.998 lb	-29.995 lb	-59.99 lb	-11.998 lb	-29.995 lb	-59.99 lb
	-5.999 kg	-11.998 kg	-29.995 kg	-5.999 kg	-11.998 kg	-29.995 kg
	-199.95 oz	-399.9 oz	-999.8 oz	-199.95 oz	-399.9 oz	-999.8 oz
Display	94 x 28 mm / 3.7 in x 1.1 in 6 Digit LED
Remote Display	94 x 28 mm / 3.7 in x 1.1 in6 Digit LED w/X ft of cable
Display Designators	STABLE, ZERO, TARE, kg, lb, oz
Keys	ZERO, TARE, FUNCTION
Functions	Weighing, Unit Conversion, ECR Protocol, Printer Protocol, BLE (Optional)
Dimensions	15.1 (W) x 12.1 (D) x 3.2 (H) inch 384(W) x 308.4(D) x 81.8(H) mm
Platter Size	15 (W) x 11(D) inch 380(W) x 280(D) mm
Weight	12.3 lbs / 5.6 kg
Power	USB 5V or USB Adaptor (5V, 1000mA/Option)
Operating Temperature	-10^oooo
Warranty	Two Years

Other Models

Other CAS PDN POS Interface Scales

Image	Name			Price
	CAS PDN-12 POS Interface Scale RS-232C/USB 15 x 11 inch 12 x 0.002 lb SKU: PDN-12 Capacity x Readability : 12 lb x 0.002 lb Legal For Trade: 12 lb x 0.002 lb Pan Size: 15 x 11 in More Info			$495.00
	CAS PDN-12B POS Interface Scale USB/Bluetooth 15 x 11 inch 12 x 0.002 lb SKU: PDN-12B Capacity x Readability : 12 lb x 0.002 lb Legal For Trade: 12 lb x 0.002 lb Pan Size: 5 x 11 in More Info			$545.00
	CAS PDN-30 POS Interface Scale RS-232C/USB 15 x 11 inch 30 x 0.005 lb SKU: PDN-30 Capacity x Readability : 30 lb x 0.005 lb Legal For Trade: 30 lb x 0.005 lb Pan Size: 15 x 11 in More Info			$495.00
	CAS PDN-30B Interface Scale USB/Bluetooth 15 x 11 inch 30 x 0.005 lb SKU: PDN-30B Capacity x Readability : 30 lb x 0.005 lb Legal For Trade: 30 lb x 0.005 lb Pan Size: 15 x 11 in More Info			$545.00
	CAS PDN-60B POS Interface Scale Capacity USB/Bluetooth 15 x 11 inch 60 x 0.01 lb SKU: PDN-60B Capacity x Readability : 60 lb x 0.01 lb Legal For Trade: 60 lb x 0.01 lb Pan Size: 15 x 11 in More Info			$545.00
	CAS PDN-60 POS Interface Scale RS-232C/USB 15 x 11 inch 60 x 0.01 lb SKU: PDN-60 Capacity x Readability : 60 lb x 0.01 lb Legal For Trade: 60 lb x 0.01 lb Pan Size: 15 x 11 mm More Info			$495.00

Optional Accessories

more info	CAS PDR3 Remote Display for PDN Series more info Price: $157.50 In Stock CAS PDR3 Remote Display for PDN Series

more info	CAS TPN3 Edge Tray for recessed platforms for PDN Series more info Price: $75.00 In Stock CAS TPN3 Edge Tray for recessed platforms for PDN Series

more info	CAS YPN1 AC Power Block (for use with USB cable for AC power) for PDN Series more info Price: $12.00 In Stock CAS YPN1 AC Power Block (for use with USB cable for AC power) for PDN Series

more info	CAS JPN2 RS232 Serial Cable DB-9 (M) to DB-9(F) PDN, 8 ft more info Price: $44.00 In Stock CAS JPN2 RS232 Serial Cable DB-9 (M) to DB-9(F) PDN, 8 ft JPN2 is the most common RS232 cable used
