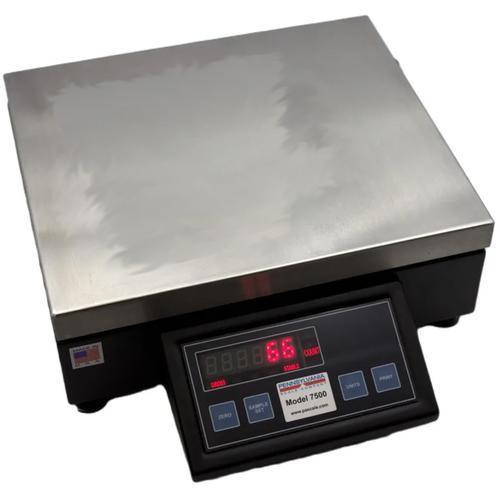

Pennsylvania Scale 7500-50HR Legal for Trade Counting 12 x 14 in Bench Scale 50 X 0.002 lb

Features

Fast, Accurate, and Dependable Designed for speed and exceptional accuracy, the 7500 series is the heart of any inventory control requirement. No other counting scale provides more impressive performance and value with the simplicity and rugged durability of the 7500.

Applications

Shipping or receiving verifications
Checking quantities for production or inventory
Rental scales for short term use
Bench or portable weighing
Shipping manifest systems or SPC/SQC
Quality contro

Features

Heavy-duty powder coated steel and SS construction
Clean, convenient design with bright, Red LED display
Simple functionality with Zero, Sample Set, Units and Print function buttons
Two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Easy to use one step counting
One powerful and flexible standard serial port,
Four-year limited warranty

Auto Sample Update (TM) for improved accuracy
(4) pre-set sample sizes, 10-20-50-100 pieces
(can be programmed for any sample sizes)
Fast, one-button operation

Technical Specifications

Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: 0.56 LED Red, bright, stable and easy to read
Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, and Base 2
Operating Temperature 14º F to 104ºF , -10ºC to 40ºC
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/20,000. Up to 1/50,000
5 VDC excitation to power 350-ohm load cell
Dimensions 12 h X 14 h Platter Size
Warranty 4 Year Limited Warranty
Legal for trade NTWP COC 91-149A7
Measurement Canada COC AM-4869 Rev. 3
Shipping Information: 23 h X 21 h X 7 h Carton 19 lbs. Battery Option 23 lbs.

Warranty The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.

Options

Battery AC operation, built-in re-chargeable system, 30+ hours of operation
External power input 12 or 24 VDC.
220/230 VAC operation
Ball-top transfer plate and roller conveyor
Custom engineering for unique applications

Specifications

Model	7500-2HR	7500-5HR	7500-10HR	7500-20HR	7500-50HR	7500-100HR	7500-150HR	7500-200HR
Price
Capacity x Readability	2 X 0.0001 lb 907.2 X 0.05 g	5 X 0.0002 lb 2268 X 0.2 g	10 X 0.0005 lb 4536 X 0.5 g	20 X 0.001 lb 9.072 X 0.0005 kg	50 X 0.002 lb 22.68 x 0.005 kg	100 X 0.005 lb 45.36 X 0.005 kg	150 X 0.01 lb 68.04 X 0.005 kg	200 X 0.01 lb 90.72 X 0.005 kg
Pan Size	12 x 14 in
Finish	Stainless Steel
Legal For Trade	-		NTEP COC 91-149A7 certified-5000 Division, Class III/IIIL Canadian Weights & Measures COC AM-4869 Rev. 3
Outputs	RS-232 (Option Ethernet)
Display	0.56 inch LED Red, bright, stable and easy to read
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Indications	for Gross, Net, Tare, Count, Piece Weight, % Accuracy, and Base 2
Operating Temperature	14º F to 104ºF , -10ºC to 40ºC
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Optional 2nd Base	Programmable to other capacities/resolutions. Internal resolution: 1 part in 1 million. Weight displayed at 10,000 graduations; programmable to any (2) weight units up to 1 part in 20,000 stable. Fast response of less than 2 seconds full scale.
Warranty	4 Year Limited
	Made in USA

Other Models

Other Pennsylvania Scale 7500HR Series Legal for Trade Bench Scales

Image	Name			Price
	Pennsylvania Scale 7500-2HR Counting 12 x 14 in Bench Scale 2 X 0.0001 lb SKU: 7500-2HR Capacity x Readability : 2 lb x 0.0001 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-5HR Counting 12 x 14 in Bench Scale 5 X 0.0002 lb SKU: 7500-5HR Capacity x Readability : 5 lb x 0.0002 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-10HR Legal for Trade Counting 12 x 14 in Bench Scale 10 X 0.0005 lb SKU: 7500-10HR Capacity x Readability : 10 lb x 0.0005 lb Legal For Trade: 10 lb x 0.0005 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-20HR Legal for Trade Counting 12 x 14 in Bench Scale 20 X 0.001 lb SKU: 7500-20HR Capacity x Readability : 20 lb x 0.001 lb Legal For Trade: 20 lb x 0.001 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-50HR Legal for Trade Counting 12 x 14 in Bench Scale 50 X 0.002 lb SKU: 7500-50HR Capacity x Readability : 50 lb x 0.002 lb Legal For Trade: 50 lb x 0.002 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-100HR Legal for Trade Counting 12 x 14 in Bench Scale 100 X 0.005 lb SKU: 7500-100HR Capacity x Readability : 100 lb x 0.005 lb Legal For Trade: 100 lb x 0.005 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-150HR Legal for Trade Counting 12 x 14 in Bench Scale 150 X 0.01 lb SKU: 7500-150HR Capacity x Readability : 150 lb x 0.01 lb Legal For Trade: 150 lb x 0.01 lb Pan Size: 12 x 14 in More Info			$866.25
	Pennsylvania Scale 7500-200HR Legal for Trade Counting 12 x 14 in Bench Scale 200 X 0.01 lb SKU: 7500-200HR Capacity x Readability : 200 lb x 0.01 lb Legal For Trade: 200 lb x 0.01 lb Pan Size: 12 x 14 in More Info			$866.25

Optional Accessories

more info	Pennsylvania Scale AC/DC Operation Rechargeable Battery for 7300 - 7500 -7600 Series - Factory Installed more info Price: $189.00 In Stock Pennsylvania Scale AC/DC Operation Rechargeable Battery for 7500 - 7600 Series - Factory Installed 30+ hours use with integrated recharging and HD power cord; functions as a U.P.S.

more info	Pennsylvania Scale Ball Transfer Top Plate, 12 x 14 in for 7300 - 7500 - 7600 -7800 Series more info Price: $315.00 In Stock Pennsylvania Scale Ball Transfer Top Plate, 12" x 14" in place of std. SS platform – 50 lbs and up models only for 7500+ -7600 Series

more info	Pennsylvania Scale Roller Transfer Top Plate, 12 x 14 in for 7300 - 7500 - 7600 -7800 Series more info Price: $315.00 In Stock Pennsylvania Scale Roller Transfer Top Plate, 12 x 14 in for 7300 - 7500 - 7600 -7800 Series

more info	Pennsylvania Scale CALCERT1 Statement of Accuracy Certificate Must be Ordered with Scale more info Price: $20.00 In Stock Pennsylvania Scale CALCERT1 Statement of Accuracy Certificate Must be Ordered with Scale

more info	Pennsylvania Scale CALCERT2 NIST Traceable Calibration Certificate - Must be Ordered with Scale more info Price: $80.75 In Stock Pennsylvania Scale CALCERT1 Statement of Accuracy Certificate Must be Ordered with Scale

more info	Pennsylvania Scale 7500-220VAC Power Replacing the 110VAC Must be Ordered with Scale more info Price: $1.00 In Stock Pennsylvania Scale 220VAC Power Replacing the 110VAC Must be Ordered with Scale

more info	Pennsylvania Scale 7500-12DC External power input 12 VDC Requires external power supply of 12 VDC Must be Ordered with Scale more info Price: $1.00 In Stock Pennsylvania Scale External power input 12 VDC Requires external power supply of 12 VDC Must be Ordered with Scale

more info	Pennsylvania Scale 7500-24DC External power input 24 VDC Requires external power supply of 24 VDC Must be Ordered with Scale more info Price: $1.00 In Stock Pennsylvania Scale External power input 24 VDC Requires external power supply of 24 VDC Must be Ordered with Scale

more info	Pennsylvania Scale 7500-AO Analog output option 0 -10 VDC Jumper output via two conductor cable. - Must order with Scale more info Price: $225.00 In Stock Pennsylvania Scale 7500-AO Analog output option 0 -10 VDC Jumper output via two conductor cable. - Must order with Scale

more info	Pennsylvania Scale 7500-AO Analog output option 4 -20ma Jumper output via two conductor cable. - Must order with Scale more info Price: $225.00 In Stock Pennsylvania Scale 7500-AO Analog output option 0 -10 VDC Jumper output via two conductor cable. - Must order with Scale

more info	Pennsylvania Scale 7500-RDT Remote Display, 1 primary display with 6 ft cable tower mount- Must be Ordered with Scale more info Price: $130.50 In Stock Pennsylvania Scale 7500-RDT Remote Display, 1 primary display with 6 ft cable tower mount- Must be Ordered with Scale

more info	Pennsylvania Scale 7500-RDW Remote Display, 1 primary display with 6 ft cable wall mount with U bracket - Must be Ordered with Scale more info Price: $130.50 In Stock Pennsylvania Scale 7500-RDW Remote Display, 1 primary display with 6 ft cable wall mount with U bracket - Must be Ordered with Scale

more info	Pennsylvania Scale 57474-1 Second display for 2 total with function buttons, 6' of cable tower mount - Must be Ordered with Scale more info Price: $351.00 In Stock Pennsylvania Scale 57474-1 Second display for 2 total with function buttons, 6 of cable tower mount - Must be Ordered with Scale

more info	Pennsylvania Scale 57474-3 Second display for 2 total with function buttons, 6 ft of cable U bracket wall mount - Must be Ordered with Scale more info Price: $351.00 In Stock Pennsylvania Scale 57474-3 Second display for 2 total with function buttons, 6 ft of cable U bracket wall mount - Must be Ordered with Scale

more info	Pennsylvania Scale 57513-1 Replacement Battery Pack more info Price: $85.50 In Stock Pennsylvania Scale 57513-1 Replacement Battery Pack
