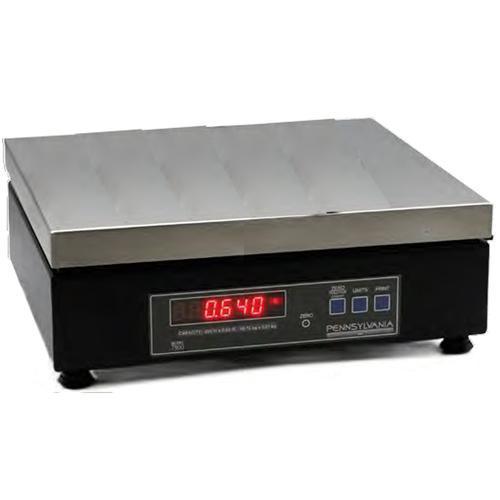

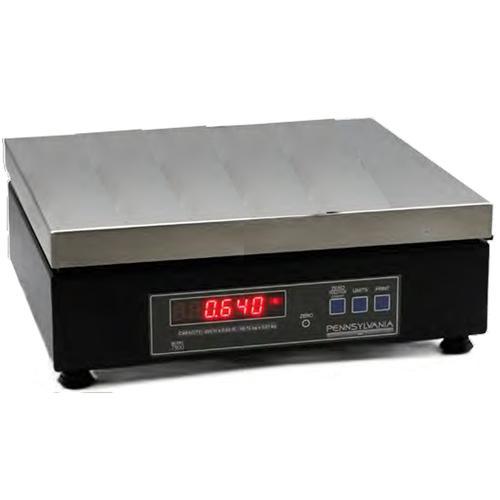

Pennsylvania Scale 7300-50HR 12 x 14 in High Resolution Legal for Trade Scale 50 X 0.002 lb

Features

With the 7300 Bench Scale, you’ll experience unparalleled precision with an impressive 20,000 divisions of capacity. Its high accuracy eliminates waste, ensuring every weight is precise and saving you time and resources. Built for the toughest industrial environments, the 7300 Bench Scale stands the test of time with its durability, ruggedness, and reliability. Invest in a bench scale that endures, reducing maintenance costs and providing consistent performance, even in demanding conditions. Ideal for integration with UPS, FEDX, and many other widely used shipping and manifest systems

Standard Features

High Resolution Counting and Weighing 20,000 Divisions
Heavy-duty powder coated steel and SS construction
Clean, convenient design with bright, Red LED display
Simple functionality with Zero, Units and Print function buttons
Two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
One powerful and flexible standard serial port,
Four-year limited warranty

Applications

Shipping manifest systems
SPC/SQC or ingredient weighing
Point-of-sale
Animal or sample weighing

Specifications:

Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: 0.56 LED Red, bright, stable and easy to read
Operating Temperature 14º F to 104ºF , -10ºC to 40ºC
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/20,000. Up to 1/50,000
5 VDC excitation to power 350-ohm load cells
Dimensions 12 X 14 Platter
Warranty 4 Year Limited Warranty
Legal for trade NTWP COC 91-149A7
Measurement Canada COC AM-4869 Rev. 3
Shipping Information: 23 X 21 X 7 Carton 19 lbs. Battery Option 23 lbs

Options:

Battery AC operation, built-in re-chargeable system, 30+ hours of operation
Printers for label, barcode label or receipt printing
External power input 12 or 24 VDC.
220/230 VAC operation
Ball-top transfer plate and roller conveyor
Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
Analog output, 4-20ma or 0-10vdc
Custom engineering for unique applications

Specifications

Model	7300-2HR	7300-5HR	7300-10HR	7300-20HR	7300-50HR	7300-100HR	7300-150HR	7300-200HR
Capacity x Readability	2 X 0.0001 lb 907.2 X 0.05 g	5 X 0.0002 lb lb 2268 X 0.2 g	10 X 0.0005 lb 4536 X 0.5 g	20 X 0.001 lb 9.072 X 0.0005 kg	50 X 0.002 lb 22.68 X 0.005 kg	100 X 0.005 lb 45.36 X 0.005 kg	150 X 0.01 lb 68.04 X 0.005 kg	200 X 0.02 lb 90.72 X 0.005 kg
Pan Size	12 x 14 in
Finish	Stainless Steel
Legal For Trade	-		NTEP COC 91-149A7 certified-5000 Division, Class III/IIIL Canadian Weights & Measures COC AM-4869 Rev. 3
Outputs	RS-232 (Option Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®)
Display	0.56 inch LED Red, bright, stable and easy to read
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Displayed Resolution	Standard 1/20,000. Up to 1/50,000
Operating Temperature	14º F to 104ºF , -10ºC to 40ºC
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Internal Resolution	1/8,000,000
Warranty	4 Year Limited
	Made in USA

Contact us –for many standard and custom features can be added. Accumulator, Peak Hold, UPS online/FedEx, Dual/Triple ranging

Other Models

Other Pennsylvania Scale 7300-HR Series 12 x 14 in High Resolution Scales

Image	Name			Price
	Pennsylvania Scale 7300-2HR 12 x 14 in High Resolution Scale 2 X 0.0001 lb SKU: 7300-2HR Capacity x Readability : 2 lb x 0.0001 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-2HR 12 x 14 in High Resolution Scale 5 X 0.0002 lb SKU: 7300-5HR Capacity x Readability : 5 lb x 0.0002 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-10HR 12 x 14 in High Resolution Legal for Trade Scale 10 X 0.0005 lb SKU: 7300-10HR Capacity x Readability : 10 lb x 0.0005 lb Legal For Trade: 10 lb x 0.0005 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-20HR 12 x 14 in High Resolution Legal for Trade Scale 20 X 0.001 lb SKU: 7300-20HR Capacity x Readability : 20 lb x 0.001 lb Legal For Trade: 20 lb x 0.001 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-50HR 12 x 14 in High Resolution Legal for Trade Scale 50 X 0.002 lb SKU: 7300-50HR Capacity x Readability : 50 lb x 0.002 lb Legal For Trade: 50 lb x 0.002 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-100HR 12 x 14 in High Resolution Legal for Trade Scale 100 X 0.005 lb SKU: 7300-100HR Capacity x Readability : 100 lb x 0.005 lb Legal For Trade: 100 lb x 0.005 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-150HR 12 x 14 in High Resolution Legal for Trade Scale 150 X 0.01 lb SKU: 7300-150HR Capacity x Readability : 150 lb x 0.01 lb Legal For Trade: 150 lb x 0.01 lb Pan Size: 12 x 14 in More Info			$781.55
	Pennsylvania Scale 7300-200HR 12 x 14 in High Resolution Legal for Trade Scale 200 X 0.02 lb SKU: 7300-200HR Capacity x Readability : 200 lb x 0.02 lb Legal For Trade: 200 lb x 0.02 lb Pan Size: 12 x 14 in More Info			$781.55

Optional Accessories

more info	Pennsylvania Scale GK420D PIVOT Label Printer with Scale Interface Cable more info Price: $476.00 In Stock The Pennsylvania Scale Zebra 420D and 420T barcode label and tape printers offers outstanding performance, reliability and flexibility to meet the demands of industrial scale printing applications. Ideal for all non washdown applications such as: packaging, production, warehousing, shipping and receiving printing needs. Direct thermal print technology provides high quality labels time after time. Choose from the basic label formats shown below or have us design a custom label format to provide a true plug and play setup and installation for most labeling applications. GK420d Features Maximum speed 5 ips (127 mm/sec) Open ACCESS. design for easy media loading 203 dpi print resolution (8 dots/mm) Direct thermal (d) and Thermal transfer (t) printing of bar codes, text, and graphics 32 bit RISC processor 8 MB Standard SDRAM memory (3 MB available to user) Core Inner Diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm) Max Roll Diameter: 5.00" (127 mm) Media Thickness: 0.003" (0.08 mm) 0.0075" (0.19mm) Supported Linear barcodes: Code 39, Code 128A, B & C (User selectable/Auto), UCC/EAN 128, Code 93, Codabar, Interleaved 2 of 5, UPC A, UPC E, UPC A with 2 and 5 add on, UPC E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet (5, 9, 11, & 13 digit) Custom Label Design Worksheet call for more info

more info	Pennsylvania Scale Remote Display with WALL BRACKET for 7300 Series more info Price: $329.95 In Stock Pennsylvania Scale Remote Display with WALL BRACKET for 7300 Series Remote Display with WALL BRACKET and 10 ft cable can be easily added in the field.

more info	Pennsylvania Scale AO – ANALOG OUTPUT or 57811 Jumper select 0-10 VDC or 4-20 mA proportional output via 2 post terminals Installation required more info Price: $225.00 In Stock Pennsylvania Scale AO – ANALOG OUTPUT or 57811 Jumper select 0-10 VDC or 4-20 mA proportional output via 2 post terminals Installation required for 7300 - 7500 - 7600 Series

more info	Pennsylvania Scale ETHERNET MODULE or 57869A Lantronix Xport module and option board includes software license and IP address for 7300 - 7500-7600 Series more info Price: $225.00 In Stock Pennsylvania Scale ETHERNET MODULE or 57869A Lantronix Xport module and option board includes software license and IP address for 7300 - 7500-7600 Series

more info	Pennsylvania Scale AC/DC Operation Rechargeable Battery for 7300 - 7500 -7600 Series - Factory Installed more info Price: $189.00 In Stock Pennsylvania Scale AC/DC Operation Rechargeable Battery for 7500 - 7600 Series - Factory Installed 30+ hours use with integrated recharging and HD power cord; functions as a U.P.S.

more info	Pennsylvania Scale Ball Transfer Top Plate, 12 x 14 in for 7300 - 7500 - 7600 -7800 Series more info Price: $315.00 In Stock Pennsylvania Scale Ball Transfer Top Plate, 12" x 14" in place of std. SS platform – 50 lbs and up models only for 7500+ -7600 Series

more info	Pennsylvania Scale 57520 Replacement Battery Pack for AC/DC units for 7300 - 7500 - 7600 Series more info Price: $85.50 In Stock Pennsylvania Scale 57520 Replacement Battery Pack for AC/DC units for 7500 Series

more info	Pennsylvania Scale TD Time and Date printing for 7300 Series more info Price: $50.00 In Stock Pennsylvania Scale TD (STD 7600) Time and Date printing for 7500 -7600 Series


Whether as a stand-alone scale or building block for a weight processing system, the 7300 series has what it takes to provide accurate weighings year after year. Rugged cast construction. High resolution electronics. Remote display connector. Four-year warranty. Flexible RS-232 communications. Whatever you weigh, there’s a 7300 series scale to exceed your expectations. more ...
