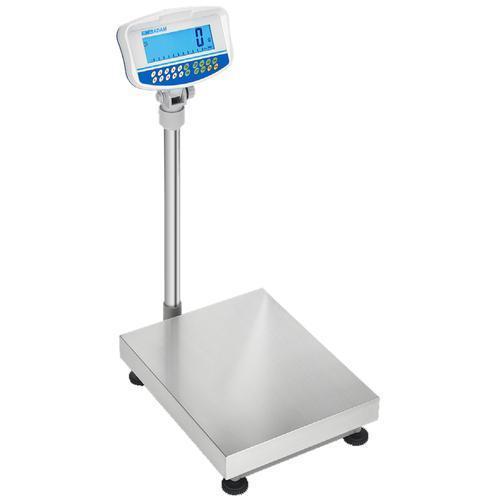

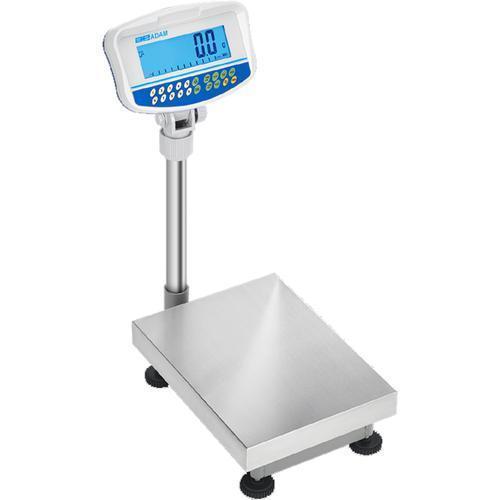

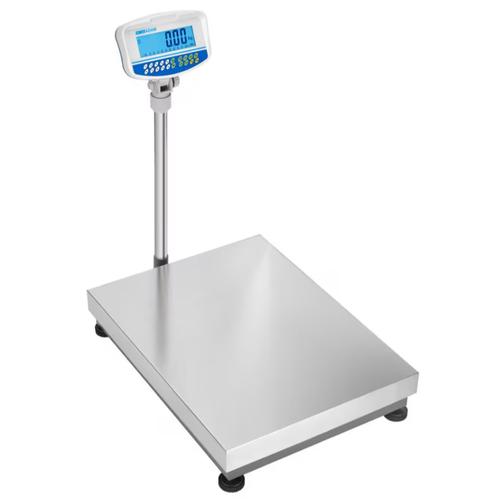

The GBK-Plus and GFK-Plus bench and floor checkweighing scales are designed to stand up to the demands of rigorous industrial applications. With a backlit, easy-to-read LCD, the large, 1.6”/40mm display and capacity tracker. Checkweighing is speedy with GBK-Plus and GFK-Plus, as their displays change color to quickly indicate if the sample is under (yellow), over (red) or within (green) preset limits. The advanced, full-numeric keypad simplifies checkweighing limits entry, while freely selectable sample sizes (as well as an impressive 1:1,600,000 internal counting resolution) make parts counting quick, easy and accurate. The grade 304 stainless steel pan provides an ample weighing surface. A pillar is standard with both GBK-Plus and GFK-Plus, so the indicator can be mounted if required.

• Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
• Large, 40mm-high easy to read digits on a bright background
• Full numeric keypad for quick and easy entering of check weighing limits
• Capacity tracker built into display for easily monitoring possible overloads
• Solid ABS housing is durable for industrial use
• Selectable language for printing
• Rechargeable battery included for operation almost anywhere
• Hold function freezes the displayed weight, allowing time to elapse without losing the result
• Auto power-off to save energy
• Memory accumulation totals results
• Optional USB interface simplifies data communication
• RS-232 interface provides speedy connection to computers and printers
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
• Wall-mount bracket for placing indicator on vertical surface
• 1:1,600,000 Internal counting resolution for precise results

Applications

• Weighing
• Checkweighing
• Percentage weighing
• Dynamic / animal weighing
• Net total weighing
• Check counting
• Parts counting
• Accumulation

Accessories 3052010526.......... In-use wet cover
3074010266........... RS-232 cable
3074010507........... RS-232 to USB adapter
1120015779............. ATP2 Thermal Printer
3126011263............. ATP2 paper
3126011281.............. ATP2 paper (x10)
600002028............ AdamDU Data Collection Program
700660290............ Calibration certificate
1140013826............. Roller deck (15.7” x 11.8”)
1140013827............. Roller deck (19.7” x 15.7”)
1140013828............. Roller deck (31.5” x 23.6”)

Model	GBK-P-8	GBK-P-16	GBK-P-32	GBK-P-60	GBK-P-120	GFK-P-75H	GFK-P-75	GFK-P-150H	GFK-P-150	GFK-P-300	GFK-P-600
Capacity x Readability	16 x 0.0002 lb 8 kg x 0.1 g	35 x 0.001 lb 16 kg x 0.5 g	70 x 0.002 lb 32 kg x 1 g	130 x 0.005 lb 60 kg x 2 g	260 x 0.01 lb 120 kg x 5 g	165 x 0.002 lb 75 kg x 1 g	165 x 0.01 lb 75 kg x 5 g	330 x 0.005 lb 150 kg x 2 g	330 x 0.02 lb 150 x 0.01 kg	660 x 0.05 lb 300 x 0.02 kg	1320 x 0.1 lb 600 x 0.05 kg
Interface	RS-232, Optional USB
Weighing Units	g, kg, lb, oz, lb:oz
Internal Counting Resolution	1:1,600,000
Keypad	Full Numeric keypad
Calibration	External
Display	Backlit LCD with 1.6" / 40mm-high digits
Power Supply	12VDC 800mA adapter, Optional internal rechargeable battery
Operating Temperature	-10° to 40°C / 14° to 104°F
Housing	ABS Plastic indicator with die-cast aluminum base
Overall Dimensions (DxWxH)	11.8" x 20.1" x 26.8" / 300 x 510 x 680mm					15.7" x 24.4" x 33.9" / 400 x 620 x 860mm					23.6" x 37" x 35.4" 600 x 940 x 900mm

Other Adam Equipment GBK-P and GFK-P Check Weighing Bench and Floor Scale

---

Image	Name			Price
	Adam Equipment GBK-Plus-8 Bench 15.7 x 11.8 in Check Weighing Scale 16 x 0.0002 lb SKU: GBK-P 8 Capacity x Readability : 16 lb x 0.0002 lb Pan Size: 11.8 x 15.7 in More Info			$908.00
	Adam Equipment GBK-Plus-16 Bench 15.7 x 11.8 in Check Weighing Scale 35 x 0.001 lb SKU: GBK-P 16 Capacity x Readability : 35 lb x 0.001 lb Pan Size: 11.8 x 15.7 in More Info			$784.00
	Adam Equipment GBK-Plus-32 Bench 15.7 x 11.8 in Check Weighing Scale 70 x 0.002 lb SKU: GBK-P 32 Capacity x Readability : 70 lb x 0.002 lb Pan Size: 11.8 x 15.7 in More Info			$848.00
	Adam Equipment GBK-Plus-60 Bench 15.7 x 11.8 in Check Weighing Scale 130 x 0.005 lb SKU: GBK-P 60 Capacity x Readability : 130 lb x 0.005 lb Pan Size: 11.8 x 15.7 in More Info			$848.00
	Adam Equipment GFK-Plus-75H Bench 19.7 x 15.7 in Check Weighing Scale 165 x 0.002 lb SKU: GFK-P-75H Capacity x Readability : 165 lb x 0.002 lb Pan Size: 15.7 x 19.7 in More Info			$1,276.00
	Adam Equipment GFK-Plus-75 Bench 19.7 x 15.7 in Check Weighing Scale 165 x 0.01 lb SKU: GFK-P-75 Capacity x Readability : 165 lb x 0.01 lb Pan Size: 15.7 x 19.7 in More Info			$940.00
	Adam Equipment GBK-Plus-120 Bench 15.7 x 11.8 in Check Weighing Scale 260 x 0.01 lb SKU: GBK-P 120 Capacity x Readability : 260 lb x 0.01 lb Pan Size: 11.8 x 15.7 in More Info			$892.00
	Adam Equipment GFK-Plus-150H Bench 19.7 x 15.7 in Check Weighing Scale 330 x 0.005 lb SKU: GFK-P-150H Capacity x Readability : 330 lb x 0.005 lb Pan Size: 15.7 x 19.7 in More Info			$1,288.00
	Adam Equipment GFK-Plus-150 Bench 19.7 x 15.7 in Check Weighing Scale 330 x 0.02 lb SKU: GFK-P-150 Capacity x Readability : 330 lb x 0.02 lb Pan Size: 15.7 x 19.7 in More Info			$940.00
	Adam Equipment GFK-Plus-300 Bench 19.7 x 15.7 in Check Weighing Scale 660 x 0.05 lb SKU: GFK-P-300 Capacity x Readability : 660 lb x 0.05 lb Pan Size: 15.7 x 19.7 in More Info			$1,012.00
	Adam Equipment GFK-Plus-600 Bench 31.5 x 23.6 in Check Weighing Scale 1320 x 0.1 lb SKU: GFK-P-600 Capacity x Readability : 1320 lb x 0.1 lb Pan Size: 23.6 x 31.5 in More Info			$1,312.00
