±0.2% accuracy. RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Full computer control more ... |
Features

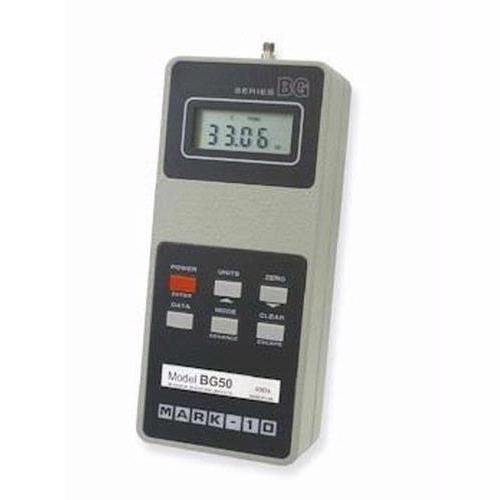

The Mark 10 BG Digital Force Gauge is an advanced force measurement solution with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.
Features:
- Compatible with all Mark 10 test stands and grips
- RS-232, Mitutoyo and analog outputs
- GCL-Gauge Control Language for full computer control
- Automatic timed output on RS-232
- Dual set points with outputs
- Averaging mode for average readings over time
- External trigger for contact or switch testing and data capture
- General purpose I/O for external device control
- Programmable analog and digital filters
- Selectable units of measurement
- Programmable default configuration
- Peak memory for tensile and compressive forces
- Push-button calibration
- Battery or AC operation
- Programmable automatic shutoff
- Reversible aluminum housing for handheld use or test stand mounting (see below)
- Same housing size for all capacities
Specifications
- Accuracy: ± 0.2% of full scale ±1 digit
- Sampling rate: 65 readings/sec
- Display rate: 25-10/sec, 65/sec in peak mode
- Display: 4-1/2 digit, 0.3 inch (7.6 mm) high LCD
- Indicators for low battery , units and mode of operation
- Power: AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via LO BAT indicator and then will shut off the gauge
- RS-232 - Fully configurable up to 9600 baud. Includes GCL (Gauge Control Language)
- Mitutoyo output - Serial BCD suitable for all Mitutoyo SPC-compatible devices
- Analog output - +/-VDC +/-0.25% of full scale at capacity. Positive for compression, negative for tension
- Set point outuputs: 3 open collector lines (utilizing Mitutoyo lines)
- General purpose I/O: 3 open collector outputs and one input (utilizing Mitutoyo lines)
- Sensor detection: 0.010 (0.25 mm) maximum deflection at full load
- Safe overload: 150% of capacity - display shows == at 110% and above
- Battery life: 8-10 hours per charge
- Weight - Gauge only: 0.9 lbs (0.4 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years
The Mark 10 BG digital force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a tensile testing application, mounted to an ESM motorized test stand with optional items: digital travel display, limit switches, and wedge grips.
Mark-10 BG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, chisel, cone, v-groove, hook, flat, extension rod, users manual, and NIST-traceable certificate of calibration
Reversible Housing - A Mark-10 Exclusive
All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.
Model |
Capacity x resolution |
Price |
BG012 |
0.12 x 0.00005 lb, 50 x 0.02 gF, 0.5 x 0.0002 N, 110V |
$1087 |
BG025 |
0.25 x 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N, 110V |
$1087 |
BG05 |
0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N, 110V |
$1087 |
BG2 |
2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N, 110V |
$945 |
BG5 |
5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N, 110V |
$945 |
BG10 |
10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N, 110V |
$945 |
BG20 |
20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N, 110V |
$945 |
BG50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N, 110V |
$945 |
BG100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N, 110V |
$945 |
BG200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N, 110V |
$1087 |
BG500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N, 110V |
$1087 |
Optional Equipment |
09-1047 |
Cable, BG/CG/EG/BGI to Mitutoyo SPC |
$71 |
09-1048 |
Cable, BG/CG/EG/BGI to RS-232, 25-pin |
$71 |
09-1048A |
Cable, BG/CG/EG/BGI to RS-232, 9-pin |
$71 |
09-1090 |
Cable, set point, BG/BGI/CG to test stand |
$137 |
11-1022 |
Hi / Lo limits indicator for BG/BGI/CG |
$85 |
11-1042 |
Overload protection module, BG/CG/EG/BGI to test stand |
$185 |
