Features

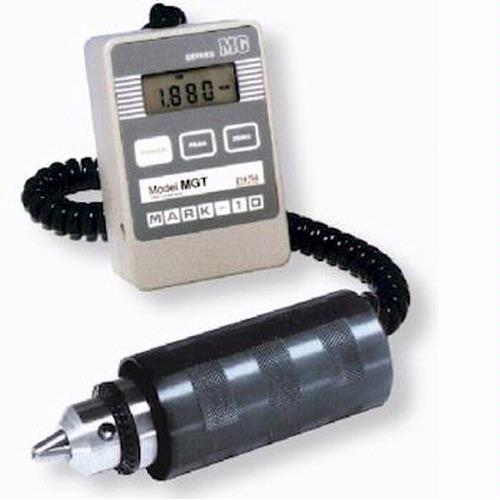

The Mark-10 MGT Torque Gauge is an economical solution for most basic torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The Mark 10 MGT digital torque gauge is available in a wide variety of capacities, from 10 oz-in to 100 lb-in
Features:
- Low cost
- Programmable automatic shutoff
- Programmable default configuration
- Selectable units of measurement
- Rugged aluminum housing
- Remote sensor
- Peak memory for clockwise and counter clockwise readings
- IPM - Intelligent Power Management
- Push-button calibration
- Capacities from 10 ozin (7 Ncm) to 100 lbin (1150 Ncm)
- Battery or AC operation
Specifications:
- Accuracy: ± 0.5% of full scale ±1 digit
- Sampling rate: 30 readings/sec
- Safe overload: 150% of capacity
- Battery life: 30 hours of continuous operation
- Weight: 1.8 lbs (0.8 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Series MG torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, users manual, and NIST-traceable certificate of calibration
- Warranty: 3 years
| Model |
Capacity x resolution |
Price |
| MGT10Z |
10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm, 110V |
$1116 |
| MGT20Z |
20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm, 110V |
$1116 |
| MGT50Z |
50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm, 110V |
$1116 |
| MGT12 |
12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm, 110V |
$1026 |
| MGT50 |
50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm, 110V |
$1026 |
| MGT100 |
100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm, 110V |
$1026 |
