| The A&D FS-iF Series checkweighing scales are rugged, easy-to-use stainless steel scales designed for fast, accurate, and reliable checkweighing in demanding industrial, food-processing, packaging, and production environments. more ... |
| Scales > Industrial Scales > Checkweighing | ||||||
|
||||||
OverviewThe A&D FS-iF Series checkweighing scales are rugged, easy-to-use stainless steel scales designed for fast, accurate, and reliable checkweighing in demanding industrial, food-processing, packaging, and production environments.
Capacity x Readability
Manufature:
AND Weighing30000 g x 2 g Pan Size 15.0 x 11.8 in SKU: FS-30KiF Weight: 25.00 lb |
||||||
The A&D FS-iF Series checkweighing scales are rugged, easy-to-use
stainless steel scales designed for fast, accurate, and reliable
checkweighing in demanding industrial, food-processing, packaging,
and production environments.
Each FS-iF scale features a clear backlit LCD display, analog sweep
display, digital keypad, setpoint memory recall, and bright LO, OK,
and HI indicator lamps. The adjustable display head allows the
indicator to be positioned for easy viewing from different working
locations.
The IP65-rated construction helps protect the scale against dust and
water, while the stainless steel weighing platform provides a durable
and easy-to-clean weighing surface. Multiple checkweighing modes and
weighing units make the FS-iF Series suitable for filling, portioning,
sorting, and tolerance-checking applications.
A&D FS-iF Series Checkweighing Scales
Features
Benefits
| A&D FS-iF Series Specifications | |||
|---|---|---|---|
| Model | FS-6KiF | FS-15KiF | FS-30KiF |
| Capacity x Resolution | 6000 x 0.5 g | 15000 x 1 g | 30000 x 2 g |
| 6 x 0.0005 kg | 15 x 0.001 kg | 30 x 0.002 kg | |
| 15 x 0.001 lb | 35 x 0.002 lb | 70 x 0.005 lb | |
| 240 x 0.02 oz | 560 x 0.05 oz | 1120 x 0.1 oz | |
| 15 x 0.1 lb-oz | 35 x 0.2 lb-oz | 70 x 0.5 lb-oz | |
| Legal for Trade | FS-6KiNF | FS-15KiNF | FS-30KiNF |
| 6000 x 2 g | 15000 x 5 g | 30000 x 10 g | |
| 6 x 0.002 kg | 15 x 0.005 kg | 30 x 0.01 kg | |
| 15 x 0.005 lb | 35 x 0.01 lb | 70 x 0.02 lb | |
| 240 x 0.1 oz | 560 x 0.2 oz | 1120 x 0.5 oz | |
| Display | 7-segment LCD with 18.6 mm character height, white backlight, and backlit analog sweep display | ||
| Display Update Rate | 10 times per second | ||
| Power Supply | 100V to 240V AC power or optional sealed lead-acid rechargeable battery | ||
| Battery Life | Approximately 80 hours with the backlight, indicator lamps, and interface turned off | ||
| Operating Temperature | -10 to 40°C / 14 to 104°F, less than 85% relative humidity | ||
| Approximate Weight | 8.1 kg / 17.9 lb | 14.9 kg / 32.8 lb | |

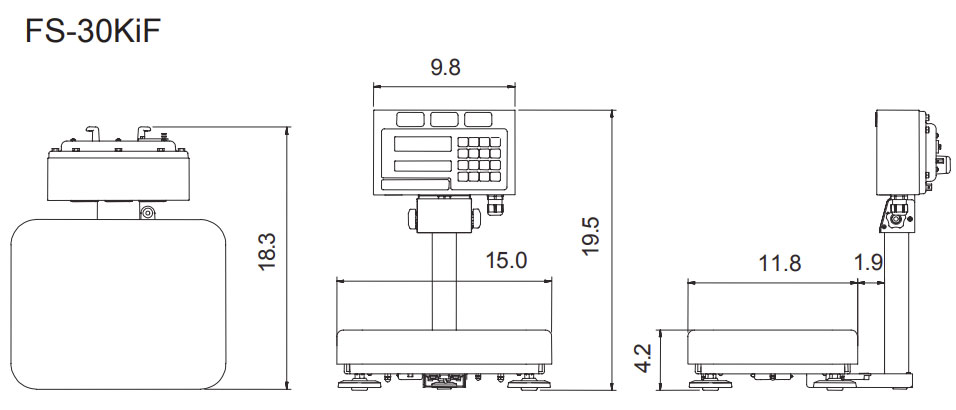

| Weighing Pan Size | 250 x 250 mm / 9.8 x 9.8 inches | 380 x 300 mm / 15.0 x 11.8 inches | |
| Protection Rating | IP65 dustproof and waterproof construction | ||
FS-iF Series Options |
|
| Option | Description |
|---|---|
| HC-02i | Sealed lead-acid rechargeable battery |
| FS-01i | Wall-mount bracket |
| FS-03i | RS-232C interface with relay output |
| FS-04i | RS-422/485 interface with relay output |
| Image | Name | Price | ||
|---|---|---|---|---|
|
AND Weighing FS-6KiF Checkweighing Scale 15 x 0.001 lb - 6000 x 0.5 g
SKU: FS-6KiF Capacity x Readability : 6000 g x 0.5 g Pan Size: 9.8 x 9.8 in More Info |
$992.00
|
||
|
AND Weighing FS-6KiNF Legal For Trade Checkweighing Scale 15 x 0.005 lb - 6000 x 2 g
SKU: FS-6KiNF Capacity x Readability : 6000 g x 0.5 g Legal For Trade: 6000 g x 2 g Pan Size: 9.8 x 9.8 in More Info |
$992.00
|
||
|
AND Weighing FS-15KiF Checkweighing Scale 35 x 0.002 lb - 15000 x 1 g
SKU: FS-15KiF Capacity x Readability : 15000 g x 1 g Pan Size: 9.8 x 9.8 in More Info |
$992.00
|
||
|
AND Weighing FS-15KiNF Legal For Trade Checkweighing Scale 35 x 0.01 lb -15000 x 5 g
SKU: FS-15KiNF Capacity x Readability : 15000 g x 1 g Legal For Trade: 15000 g x 5 g Pan Size: 9.8 x 9.8 in More Info |
$992.00
|
||
|
AND Weighing FS-30KiF Checkweighing Scale70 x 0.005 lb - 30000 x 2 g
SKU: FS-30KiF Capacity x Readability : 30000 g x 2 g Pan Size: 15.0 x 11.8 in More Info |
$1,155.20
|
||
|
||||||||
