| ORP is the only practical method for electronically monitoring sanitizer effectiveness. ORP value is an important parameter of water and is a measurement to oxidize contaminants. Normal application areas are swimming pools, fish farming, and aquariums. more ... |
| Scales > pH Meters > Accessories | ||||||
|
||||||
OverviewORP is the only practical method for electronically monitoring sanitizer effectiveness. ORP value is an important parameter of water and is a measurement to oxidize contaminants. Normal application areas are swimming pools, fish farming, and aquariums.
|
||||||

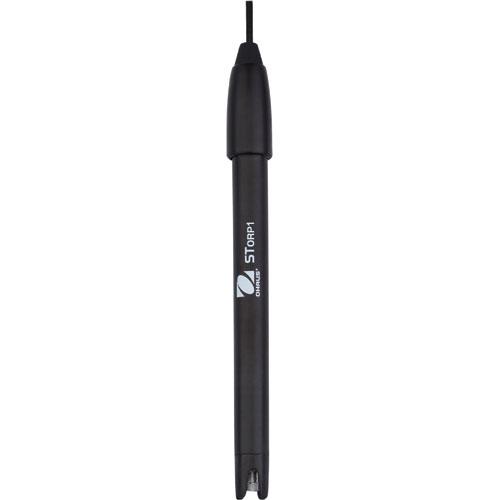

Gel Plastic ORP Electrode Related to the overall availability of electrons in the media, specifically the ratio of positive and negative ions in the solution. Also called Redox electrode. ORP is the only practical method for electronically monitoring sanitizer effectiveness. ORP value is an important parameter of water and is a measurement to oxidize contaminants. Normal application areas are swimming pools, fish farming, and aquariums. ORP is expressed in millivolts (mV). A range of -1000mV to 1000mV is common with most ORP tests. The pH value influences the ORP value significantly. If the platinum band or disk is contaminated, the electrode should be cleaned, otherwise response time will slow or inaccurate measurements will be given.
| STORP1 | STORP2 | |
|---|---|---|
| Shaft Material | Plastic | Glass |
| Temp Range | 0 to 80°C | 0 to 100°C |
| Internal Reference Type | Ag/AgCl | Ag/AgCl |
| Gel/Refillable | Non-Refillable Gel |
Refillable |
| Reference Junction Type | Ceramic pin | Annular ceramic |
| Refilling Reference Electrolyte | 3M KCl solution | 3M KCl solution |
| Shaft Dimensions | 4-3/4" x 3/4 | 4-3/4" x 3/4" |
| Cable Length | 3-1/4" | 3-1/4" |
| Temp Sensor | No | No |
| Connector | BNC | BNC |
| Zero Potential Value | 86mV±15mV | 86mV±15mV |
| Grade Difference | Greater than or equal to 165mV | Greater than or equal to 165mV |
