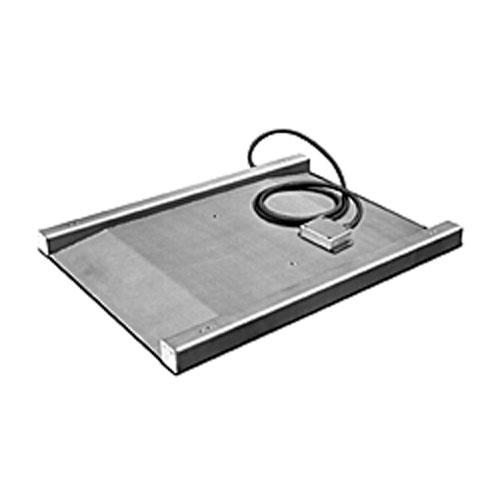

Cambridge S670236361 Model SS670-2 Series Legal For Trade Stainless Steel Scale Built In Double Ramp 36 x 36 x 1.5 / 1000 x 0.2

Cambridge Scale
Constructed of structural tubular stainless steel and heavy gauge smooth plate decking these scales are designed to handle the toughest washdown applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty. more ...
Scales > Industrial Scales > Floor Scales
Cambridge S670236361 Model SS670-2 Series Legal For Trade Stainless Steel Scale Built In Double Ramp 36 x 36 x 1.5 / 1000 x 0.2

Specifications Chart


Call for more info
Download PDF

Note: This product can only be shipped Ground Delivery.
Cambridge S670236361 Model SS670-2 Series Legal For Trade Stainless Steel Scale Built In Double Ramp 36 x 36 x 1.5 / 1000 x 0.2

Price: $4,104.00


In Stock - Ships within 24 hours

Optional Accessories

View Features

Cambridge Scale
SKU: S670236361

Features

MODEL SS670-2 BARREL WEIGHER STAINLESS STEEL SINGLE RAMP MODEL

Constructed of structural tubular stainless steel and heavy gauge smooth plate decking these scales are designed to handle the toughest washdown applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.

STANDARD FEATURES

  • Structural tubular stainless steel construction.
  • Capped and sealed tubes.
  • Heavy stainless steel deck plate.
  • 100% End loading capacity.
  • 150% Overload protection.
  • 20 Foot indicator cable.
  • Eye bolt holes allow easy set-up.
  • Shielded load cell and indicator cables.
  • Ultra-low profile (1.5” above the floor).
  • Live side rails to weigh oversized loads.
  • 1 Part in 5000 accuracy.
  • Live built-in easy incline ramps.
  • Shock load protection.
  • (4) Internally mounted, Environmentally protected,
  • NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated stainless steel shear beam load cells.
  • Easy access leveling.
  • Remote stainless steel NEMA 4x junction box.

OPTIONS

  • Stainless steel diamond deck plate.
  • Type 316 Stainless steel construction.
  • “FM” approved and hermetically sealed stainless steel load cells (available with Teflon cables).
  • “FM” approved junction box.
  • High Resolution Package Includes: Captive ball leveling feet for unmatched stability.
  • Captive ball leveling feet for unmatched stability.

Dimensions
X:
36.00   Y: 36.00   Z: 1.50
Other Cambridge Scale Model 670-1 Series Legal For Trade Weigher Scale Built In Single Ramp
Image Name Price

Specifications

MODEL SS670-2 BARREL WEIGHER STAINLESS STEEL Double RAMP MODEL
Model S670230301 S670230302 S670230305 S670236361 S670236362 S670236365
Platform Size 30” x 30” x 1.5” 30” x 30” x 1.5” 30” x 30” x 1.5” 36” x 36” x 1.5” 36” x 36” x 1.5” 36” x 36” x 1.5”
Capacity 1,000 Lb. x 0.2 2,500 Lb. x 0.5 5,000 Lb. x 1 1,000 Lb. x 0.2 2,500 Lb. x 0.5 5,000 Lb. x 1
Legal For Trade YES
Accuracy 1 Part in 5000 accuracy.
Approval (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated stainless steel shear beam load cells.
Protection 150% Overload protection

Optional Accessories


Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
more info
Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
more info
Price: $65.00
In Stock
btn buy
Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
Cambridge Stainless Steel 48 inch Rigid Free Standing Indictor Stand (50490)
more info
Cambridge Stainless Steel 48 inch Rigid Free Standing Indictor Stand (50490)
more info
Price: $387.00
In Stock
btn buy
Sturdy stands ideal for the secure mounting of your valuable indicator. Feature adjustable leveling feet for a wobble free stance on almost any floor environment. Stainless Steel construction, rigid 48 inches high.
48 inch high
4 Leaveling feet
Mounting Plate - 8 x 4 inch
