| The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. more ... |
| Scales > Industrial Scales > Bench Scales | ||||||
|
||||||

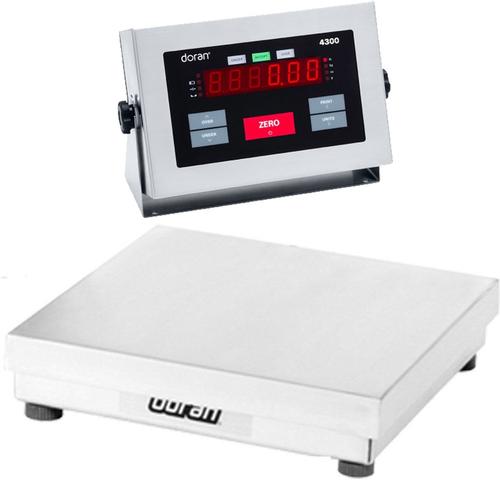

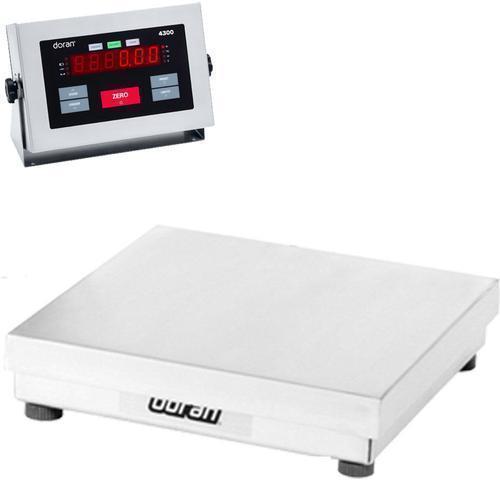

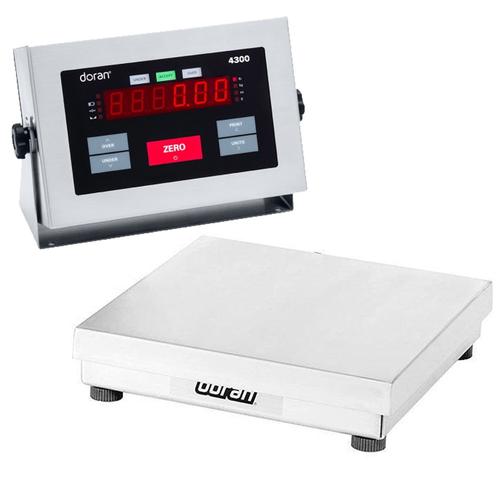

OverviewThe Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership.
|
||||||
The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. Here’s why Washdown Safe - 304 Stainless Steel construction, and the exclusive, innovative Doran Gasket design meets and exceeds IP69K and NEMA 4X classification for washdown protection. The 4300 Checkweigh Scale will survive and thrive in the most extreme washdown weighing applications 1000% Overload Protection - With the unique “Quad Spring©” base design, Doran Scales has virtually eliminated the most common load cell damage caused by shock and overload damage. Protected to up to 10 times capacity, the 4300 Checkweigh Scale sets the new industry standard - A Doran Exclusive! Indestructible “Guardian” Touch Panel - Reduced down time and lower maintenance costs even in repeated harsh washdown environments. Four times thicker than the competition, this super rugged touch panel resists moisture and puncture damage better than any other scale. Easy Operation - Simple to use with minimal operator training. Set Over/Under tolerances right from the front panel using the Up/Down arrow buttons. Checkweigh to zero or actual weight with 3 or 5 zone checkweighing operations. Powerful New Excel Design
| Model | 4302/88* | 4305/88 | 4310/88 | 4325/88 | 4302* | 4305 | 4310 | 4325 | 4350 | 4350/12 | 43100/12 | 4350/15 | 43100/15 | 43200/15 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity x Readability | lb | 2 x 0.0005 | 5 x 0.001 | 10 x 0.002 | 25 x 0.005 | 2 x 0.0005 | 5 x 0.001 | 10 x 0.002 | 25 x 0.005 | 50 x 0.01 | 50 x 0.01 | 100 x 0.02 | 50 x 0.01 | 100 x 0.02 | 200 x 0.05 |
| kg | 0.9 x 0.2g | 2.3 x 0.5g | 4.5 x 1g | 11.3 x 2g | 0.9 x 0.2g | 2.3 x 0.5g | 4.5 x 1g | 11.3 x 2g | 22.7 x 5g | 22.7 x 5g | 45 x 10g | 22.7 x 5g | 45 x 10g | 91 x 20g | |
| oz | 35 x 0.01 | 80 x 0.02 | 160 x 0.05 | 400 x 0.1 | 35 x 0.01 | 80 x 0.02 | 160 x 0.05 | 400 x 0.1 | 800 x 0.2 | 800 x 0.2 | 1600 x 0.5 | 800 x 0.2 | 1600 x 0.5 | 3200 x 1 | |
| Platter Size | 8" x 8" | 10" x 10" | 12" x 12" | 15" x 15" | |||||||||||
| Legal for Trade | NOT Legal for Trade |
Indicator: CC# 97-038A1 NTEP Class III - Base: CC# 97-097A1 NTEP Class III | |||||||||||||
| NOT Legal for Trade |
Indicator: CC# AM-5201 Canada Class III - Base: CC# AM-5241 Canada Class III | ||||||||||||||
| NTEP Resolution | NOT Legal for Trade |
5000d | 5000d | 5000d | NOT Legal for Trade |
5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | |
| Outputs |
|
||||||||||||||

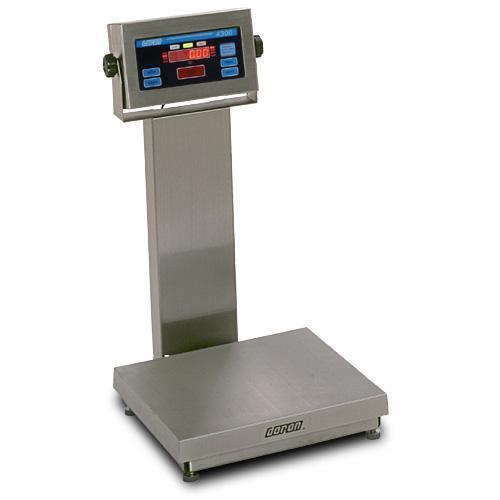

| Column | 14 inch | ||||||||||||||
| Washdown | NEMA4 x | ||||||||||||||
| Display | 6 Digit, red LED, 0.56" High | ||||||||||||||
| Controls: | ZERO, UNITS, PRINT, OVER, and UNDER | ||||||||||||||
| Indicators | lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT | ||||||||||||||
| Units | lb, kg, g, oz, or lb:oz | ||||||||||||||
| Power | 115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional | ||||||||||||||
| Construction | 304 Stainless Steel | ||||||||||||||
| Warranty | Two Year Parts & Labor | ||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
