| Designed with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc. more ... |
| Industrial Scales > Counting Scales > Dedicated Counting Scales | ||||||
|
||||||
OverviewDesigned with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc.
Capacity x Readability
Manufature:
CAS60 lb x 0.002 lb Pan Size 12 x 8.7 in SKU: EC2-60 Weight: 10.00 lb |
||||||
Designed with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc.
The EC-2 provides the features you need for counting and weighing and is available in four capacities from six to sixty pounds. Connect to a second platform to expand your capacity.
WEIGHT/COUNT COMPARISON FUNCTION LABEL & RECEIPTS
OPTIONS
Set the weight or count range and the EC-2 will indicate whether the actual weight or count is HI, LO, or OK, with alarm beep sounds and color display indicators. The optional Light Tower offers a larger visual alternative
Connect the EC-2 Dual Channel Counting Scale to the optional DEP-50 Receipt Printer or DLP-50 Label Printer. Print the data, weight, unit weight, quantity, tare, gross, item number, & item name (ASCII code).
| Model | EC2-6 | EC2-15 | EC2-30 | EC2-60 |
|---|---|---|---|---|
| Weighing Capacity | 6 x 0.0002 lbs | 15 x 0.0005 lbs | 30 x 0.001 lbs | 60 x 0.002 lbs |
| 3 x 0.0001 kg | 6 x 0.0002 kg | 15 x 0.0005 kg | 30 x 0.001 kg | |
| 3,000 x 0.1 g | 6,000 x 0.2 g | 15,000 x 0.5 g | 30,000 x 1 g | |
| External Resolution | 1/30,000 | |||
| Internal Resolution | 600,000 | |||
| Display Type | LCD | |||
| Stabilization Time | < 2 Seconds | |||
| Weight Units | g/kg/lb | |||
| Zero Range | ±2% (Zero Range), ±10% (Inital Zero Range) | |||
| Tare Range | Full Capacity by Subtraction | |||
| Interface | RS-232C | |||
| Safe Overload | 120% of Capacity | |||
| Operating Temp. | -10° C ~ 40° C / 14° F ~ 104° F | |||
| Power Source | AC Adapter DC 12V / 850 mA Rechargeable Battery - 6V, 5Ah |
|||
| Battery Life | 80 hrs continuous use w/12 hr recharge time | |||
| Platter Size (inch/mm) | 12 (W) x 8.7 (D) / 306 (W) x 222 (D) | |||
| Dimensions (inch/mm) | 13 (W) x 13.6 (D) x 4.2 (H) / 330 (W) x 346 (D) x 107 (H) | |||
| Product Weight | 9.9 lbs | |||
| Image | Name | Price | ||
|---|---|---|---|---|
|

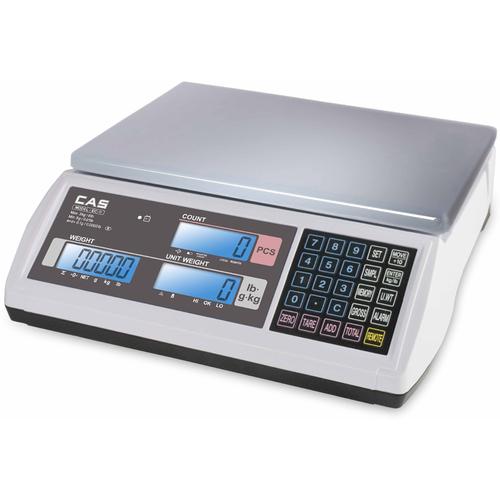

CAS EC2-6 Dual Channel Counting Scale 6 x 0.0002 llb
SKU: EC2-6 Capacity x Readability : 6 lb x 0.0002 lb Pan Size: 12 x 8.7 in More Info |
$519.00
|
||
|
CAS EC2-15 Dual Channel Counting Scale 15 x 0.0005 lb
SKU: EC2-15 Capacity x Readability : 15 lb x 0.0005 lb Pan Size: 12 x 8.7 in More Info |
$519.00
|
||
|
CAS EC2-30 Dual Channel Counting Scale 30 x 0.001 lb
SKU: EC2-30 Capacity x Readability : 30 lb x 0.001 lb Pan Size: 12 x 8.7 in More Info |
$519.00
|
||
|
CAS EC2-60 Dual Channel Counting Scale 60 x 0.002 lb
SKU: EC2-60 Capacity x Readability : 60 lb x 0.002 lb Pan Size: 12 x 8.7 in More Info |
$519.00
|
||
|
||||||||||||
