Dillon EDX-1T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509246) 2500 x 0.5 lbs

The EDXtreme Crane Scale offers accurate repeatable readings which are essential to correct weighing. The higher standards set for the EDX Crane Scales meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. more ...
Industrial Scales > Crane Scales & Dynamometers > Digital Crane Scales
Dillon EDX-1T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509246) 2500 x 0.5 lbs

Specifications Chart


Call for more info
Capacity x Readability
2500 lbx 0.5 lb
Download PDF
Dillon EDX-1T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509246) 2500 x 0.5 lbs
FREE Ground Shipping *


Price: $2,741.25


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Dillon
SKU: AWT05-509246

Features

The EDXtreme Crane Scale offers accurate repeatable readings which are essential to correct weighing. The higher standards set for the EDX Crane Scales meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5,000 provides the level of readability needed for refined weighing.

Building a precision instrument that can survive real world punishment requires masterful engineering. This is where Dillons experience shines through. The engineers assigned to the EDX Crane Scale drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

EDXtreme Crane Scales are made up of two parts, an EDXtreme Dynamometer and the associated crane scale hardware kit which includes the following: a swivel hook, oversized shackle assembly & a wooden shipping/storage crate.

Guesswork is not acceptable – failure is not an option. When you have people working around high tension cables and massive loads, there is no room for error. You have to have complete confidence in the strength and the accuracy of your measurement tools.

Features

  • Dramatically improved battery life in the EDXtreme link
  • Dramatically improved radio communications distance
  • High speed Peak Capture 10/100/1,000 Hz
  • Improved backlight intensity
  • Lift and store of weight / force
  • Date and time
  • Continuous data storage
  • Re-calibration reminder
  • Can communicate with two Communicators via radio
  • Overload at 120% with date and time record

  • Sturdy aircraft-quality aluminum (shown) or alloy steel on high-capacity models
  • High-resolution dot-matrix LCD display offers large numbers without confusing abbreviations or multipliers
  • Injection molded, thick Lexan panels offer superior impact protection
  • Softkey interface allows easy and intuitive operation and configuration
  • NEMA 4X / IP55 designed for weather and water resistance
  • Rounded ends reduce weight and prevent binding and snagging with rigging
  • Popular industry-standard shackles insure proper fit

Uncompromising on safety and adaptable to the need

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.*

* Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.

While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location — it is the definition of application versatility.

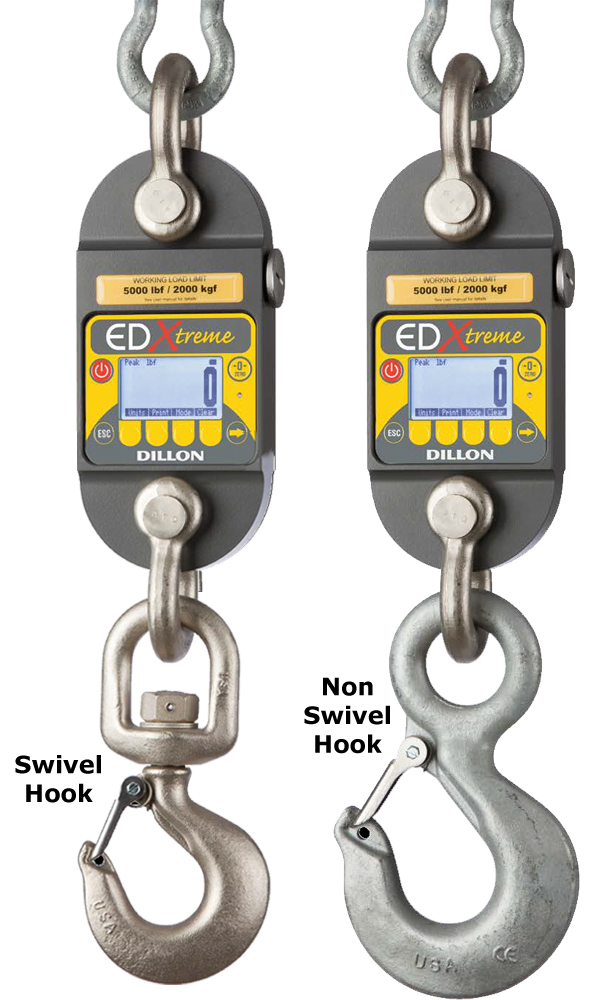

The EDXtreme Crane scale is well suited for applications that are looking for high-accuracy, remote display, networking and hook at an affordable cost. Resolution can be toggled from 1,000 divisions (standard) to 5,000 divisions (enhanced) by the operator. The EDXtreme will talk to a Communicator handheld display. The price includes a dynamometer, standard upper shackle, basic swivel hook (non-swivel hook for 55,000lb - 25000Kg), user manual, 2 C cell batteries, calibration certificate and a wooden shipping crate.


Weight: 8.60 lb
2 Year Manufacture Warranty
Other Dillon EDXtreme Red Crane Scales
Image Model Capacity x Readability Legal For Trade
Capacity x Readability
(Pan) Size Price More Info
Dillon EDX-1T-R-S-BS-WC E
AWT05-509246 Dillon EDX-1T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509246) 2500 x 0.5 lbs $2,741.25
buy now
More Info
2500 lb x 0.5 lb -
Dillon EDX-2-R-S-BS-WC ED
AWT05-509247 Dillon EDX-2-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509247) 5000 x 1 lb $2,958.00
buy now
More Info
5000 lb x 1 lb -
Dillon EDX-5T-R-S-BS-WC E
AWT05-509248 Dillon EDX-5T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509248) 10,000 x 2 lb $3,493.50
buy now
More Info
10000 lb x 2 lb -
Dillon EDX-10T-R-S-BS-WC
AWT05-509249 Dillon EDX-10T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509249) 25,000 x 5 lb $4,441.25
buy now
More Info
25000 lb x 5 lb -
Dillon EDX-25T-R-S-NS-WC
AWT05-509250 Dillon EDX-25T-R-S-NS-WC EDXtreme RED Crane Scale (AWT05-509250) 55,000 x 10 lb $7,067.75
buy now
More Info
55000 lb x 10 lb -

Specifications

Model EDX-1T-R-S-BS-WC
AWT05-509246
EDX-2-R-S-BS-WC
AWT05-509247
EDX-5T-R-S-BS-WC
AWT05-509248
EDX-10T-R-S-BS-WC
AWT05-509249
EDX-25T-R-S-NS-WC
AWT05-509250
Capacity x Resolution
Normal Mode
2,500 x 2 lb 5,000 x 5 lb 10,000 x 10 lb 25,000 x 20 lb 55,000 x 50 lb
1,000 x 1 kg 2,000 x 2 kg 5,000 x 5 kg 10,000 x 10 kg 25,000 x 20 kg
10,000 x 10 N 20,000 x 20 N 50,000 x 50 N 100,000 x 100 N 250,000 x 200 N
Capacity x Resolution
Enhanced Mode
2,500 x 0.5 lb 5,000 x 1 lb 10,000 x 2 lb 25,000 x 5 lb 55,000 x 10 lb
1,000 x 0.2 kg 2,000 x 0.5 kg 5,000 x 1 kg 10,000 x 2 kg 25,000 x 5 kg
10,000 x 2 N 20,000 x 5 N 50,000 x 10 N 100,000 x 20 N 250,000 x 50 N
Overload 700% 500%
Construction Aircraft-quality 2024 aluminum Aircraft-quality E4340 alloy steel
Enclosure Designed to NEMA4X/IP55. Suitable for continuous outdoor use
Accuracy 0.1% of capacity up to EDx-50T.* - 0.3% of capacity for EDx-75T and above.*
Repeatability 0.1% of capacity up to EDx-50T.* - 0.3% of capacity for EDx-75T and above.*
Proof Load 150% of capacity up to EDx-75T. - 110% of capcity Edx-100T and above.
Safe Overload 200% of capacity
Body Protection Aluminum and alloy steel capacities are powder coated.
Bearings Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race
Shackles Forged industry standard anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin
Display 128 x 64 dot-graphic LCD display shows up to 6 digits 1.0” (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display Update Rate 2 times per second.
Peak Capture Rate 10/100/1,000 Hz
Connector Recessed sealed connector may be used for serial communications or connection to a Communicator II remote.
RS-232 Communication Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Calibration Traceable to the National Institute of Standards and Technology. Certificate included with curve of readings. Passes only with three consecutive confirming runs, with all points in specification
Battery Life Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)
Operating Temperature -4° F to 158° F (-20° to 70° C)

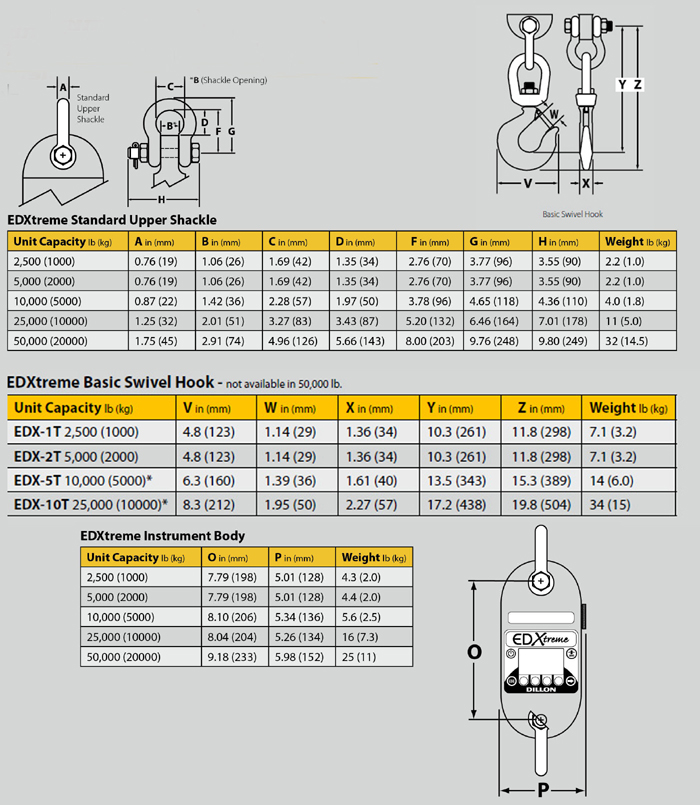

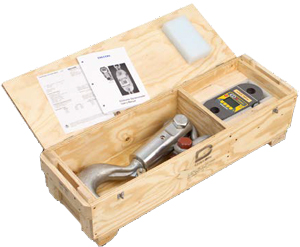

Included with Instrument All include certificate of calibration, manual and batteries. Plastic carry case included for EDx-1T to EDx-50T. Higher capacities include rugged plywood storage crate. Instruments with shackles include centering spacers (EDx-20T & up) and shackle storage crate (EDx-20T to EDx-75T). Display backlight.
Options Shackles. Radio communications
Approval CE

* within the 48 continental US States


Optional Accessories


Dillon AWT05-506447 Radio/Communicator II with Backlight for EDXtreme RED Dynamometers
more info
Dillon AWT05-506447 Radio/Communicator II with Backlight for EDXtreme RED Dynamometers
more info
Price: $1,253.75
In Stock
btn buy

Communicator II

The Communicator II can remotely view and control one or several EDXtreme instruments simultaneously via radio frequency. If the EDXtreme is not equipped with radio, then a RS-485 cable will be required between the EDXtreme and Communicator II. Information is easily sent to computer from a radio Communicator II via a serial cable.

Specifications

Model AWT05-506447
Enclosure Designed to NEMA 3 / IP54 with optional sleeve. Suitable for protected outdoor use.
Instrument Size 9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
Accuracy Accuracy: Not applicable. Only sends and receives digital information.
Display 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
Battery Life Up to 80 hours continuous radio using (4) AA alkaline batteries.
Operating Temperature -4° F to 158° F (-20° to 70° C)
Connectors Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer.
RS-232 Communication Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Included with Remote Carry case and batteries
Accessories Rubberized case protector sleeve. Remote wall mount bracket. Serial and remote cable assemblies
Approval CE

Radio Specifications

FCC Certified For unlicensed low power devices. No radio licensing or permits required for normal operation.* (In the US and Canada. Check local ordinances in other countries.)
Frequency ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz.
Output Level 10 mW (10 dBm)
Display Update Rate 1 time per second.
Number of Links Remote Can Control Up to 15 addresses.
Configuration Address Automatic and configurable
Antenna Integral antenna.
Range Open-air range up to 600 feet, line-of-sight. Indoor range dependent upon environment with 300 feet common. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications.
Dillon 36057-0022MTS Cable computer serial  with 9-pin D connector 12-ft (3.6 m)
more info
Dillon 36057-0022MTS Cable computer serial with 9-pin D connector 12-ft (3.6 m)
more info
Price: $119.00
In Stock
btn buy
Dillon 36057-0022MTS Cable computer serial with 9-pin D connector 12-ft (3.6 m)
Dillon AWT25-501123 Power supply, 100-240 VAC  to 5V for
more info
Dillon AWT25-501123 Power supply, 100-240 VAC to 5V for
more info
Price: $280.50
In Stock
btn buy
Dillon AWT25-501123 Power supply, 100-240 VAC to 5V for "Red" EDXtreme
Dillon AWT25-501124 Power supply, 100-240 VAC/5V to RS-232 for
more info
Dillon AWT25-501124 Power supply, 100-240 VAC/5V to RS-232 for
more info
Price: $391.00
In Stock
btn buy
Dillon AWT25-501124 Power supply, 100-240 VAC/5V to RS-232 for "Red" EDXtreme
Dillon AWT05-509199 Radio/Communicator II with Backlight and Alarm for EDXtreme RED Dynamometers
more info
Dillon AWT05-509199 Radio/Communicator II with Backlight and Alarm for EDXtreme RED Dynamometers
more info
Price: $1,950.75
In Stock
btn buy

Communicator II

The Communicator II can remotely view and control one or several EDXtreme instruments simultaneously via radio frequency. If the EDXtreme is not equipped with radio, then a RS-485 cable will be required between the EDXtreme and Communicator II. Information is easily sent to computer from a radio Communicator II via a serial cable.

Specifications

Model AWT05-506447
Enclosure Designed to NEMA 3 / IP54 with optional sleeve. Suitable for protected outdoor use.
Instrument Size 9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
Accuracy Accuracy: Not applicable. Only sends and receives digital information.
Display 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
Battery Life Up to 80 hours continuous radio using (4) AA alkaline batteries.
Operating Temperature -4° F to 158° F (-20° to 70° C)
Connectors Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer.
RS-232 Communication Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Included with Remote Carry case and batteries
Accessories Rubberized case protector sleeve. Remote wall mount bracket. Serial and remote cable assemblies
Approval CE
    Alarm Settings:
  • DISABLED: Alarm feature will be turned off.
  • ENABLED: Alarm will sound when activated value has been reached and will not sound when below deactivate value.
    NOTE: Alarm will sound between the activate and deactivate values or both can be set at the same.
  • INVERTED: Alarm will sound continuously until the activated value has been reached and will sound when below the deactivate value.
    NOTE: Alarm will sound outside of the activate and deactivate values.
  • BAND: Alarm will sound when activated value has been reached and will not sound when below deactivate value.
    NOTE: Alarm will sound when between the activate and deactivate values.
  • INVERT/BAND: Alarm will sound continuously until the activated value has been reached.
    NOTE: Alarm will sound outside of the activate and deactivate values.

Radio Specifications

FCC Certified For unlicensed low power devices. No radio licensing or permits required for normal operation.* (In the US and Canada. Check local ordinances in other countries.)
Frequency ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz.
Output Level 10 mW (10 dBm)
Display Update Rate 1 time per second.
Number of Links Remote Can Control Up to 15 addresses.
Configuration Address Automatic and configurable
Antenna Integral antenna.
Range Open-air range up to 600 feet, line-of-sight. Indoor range dependent upon environment with 300 feet common. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications.
