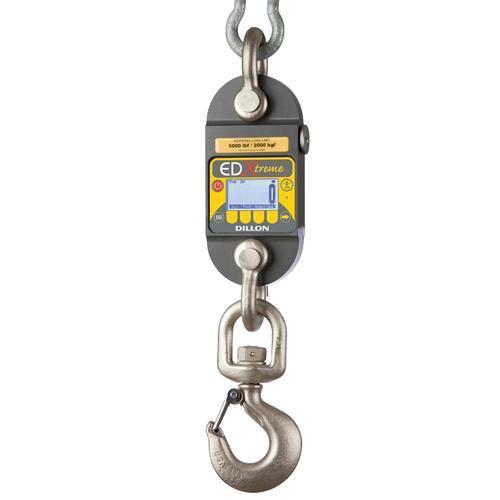

OverviewThe EDXtreme Crane Scale offers accurate repeatable readings which are essential to correct weighing. The higher standards set for the EDX Crane Scales meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity.
Capacity x Readability
Manufature:
Dillon10000 lb x 2 lb SKU: AWT05-509248 Quick Facts
Weight: 23.60 lb |
The EDXtreme Crane Scale offers accurate repeatable readings which are essential to correct weighing. The higher standards set for the EDX Crane Scales meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5,000 provides the level of readability needed for refined weighing.
Building a precision instrument that can survive real world punishment requires masterful engineering. This is where Dillons experience shines through. The engineers assigned to the EDX Crane Scale drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.
EDXtreme Crane Scales are made up of two parts, an EDXtreme Dynamometer and the associated crane scale hardware kit which includes the following: a swivel hook, oversized shackle assembly & a wooden shipping/storage crate.
Guesswork is not acceptable – failure is not an option. When you have people working around high tension cables and massive loads, there is no room for error. You have to have complete confidence in the strength and the accuracy of your measurement tools. Features
The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.*
* Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.
While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location — it is the definition of application versatility.
The EDXtreme Crane scale is well suited for applications that are looking for high-accuracy, remote display, networking and hook at an affordable cost. Resolution can be toggled from 1,000 divisions (standard) to 5,000 divisions (enhanced) by the operator. The EDXtreme will talk to a Communicator handheld display. The price includes a dynamometer, standard upper shackle, basic swivel hook (non-swivel hook for 55,000lb - 25000Kg), user manual, 2 C cell batteries, calibration certificate and a wooden shipping crate.
Model | EDX-1T-R-S-BS-WC AWT05-509246 |
EDX-2-R-S-BS-WC AWT05-509247 |
EDX-5T-R-S-BS-WC AWT05-509248 |
EDX-10T-R-S-BS-WC AWT05-509249 |
EDX-25T-R-S-NS-WC AWT05-509250 |
|||||
---|---|---|---|---|---|---|---|---|---|---|
Capacity x Resolution Normal Mode |
2,500 x 2 lb | 5,000 x 5 lb | 10,000 x 10 lb | 25,000 x 20 lb | 55,000 x 50 lb | |||||
1,000 x 1 kg | 2,000 x 2 kg | 5,000 x 5 kg | 10,000 x 10 kg | 25,000 x 20 kg | ||||||
10,000 x 10 N | 20,000 x 20 N | 50,000 x 50 N | 100,000 x 100 N | 250,000 x 200 N | ||||||
Capacity x Resolution Enhanced Mode |
2,500 x 0.5 lb | 5,000 x 1 lb | 10,000 x 2 lb | 25,000 x 5 lb | 55,000 x 10 lb | |||||
1,000 x 0.2 kg | 2,000 x 0.5 kg | 5,000 x 1 kg | 10,000 x 2 kg | 25,000 x 5 kg | ||||||
10,000 x 2 N | 20,000 x 5 N | 50,000 x 10 N | 100,000 x 20 N | 250,000 x 50 N | ||||||
Overload | 700% | 500% | ||||||||
Construction | Aircraft-quality 2024 aluminum | Aircraft-quality E4340 alloy steel | ||||||||
Enclosure | Designed to NEMA4X/IP55. Suitable for continuous outdoor use | |||||||||
Accuracy | 0.1% of capacity up to EDx-50T.* - 0.3% of capacity for EDx-75T and above.* | |||||||||
Repeatability | 0.1% of capacity up to EDx-50T.* - 0.3% of capacity for EDx-75T and above.* | |||||||||
Proof Load | 150% of capacity up to EDx-75T. - 110% of capcity Edx-100T and above. | |||||||||
Safe Overload | 200% of capacity | |||||||||
Body Protection | Aluminum and alloy steel capacities are powder coated. | |||||||||
Bearings | Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race | |||||||||
Shackles | Forged industry standard anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin | |||||||||
Display | 128 x 64 dot-graphic LCD display shows up to 6 digits 1.0” (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability. | |||||||||
Display Update Rate | 2 times per second. | |||||||||
Peak Capture Rate | 10/100/1,000 Hz | |||||||||
Connector | Recessed sealed connector may be used for serial communications or connection to a Communicator II remote. | |||||||||
RS-232 Communication | Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character. | |||||||||
Calibration | Traceable to the National Institute of Standards and Technology. Certificate included with curve of readings. Passes only with three consecutive confirming runs, with all points in specification | |||||||||
Battery Life | Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.) | |||||||||
Operating Temperature | -4° F to 158° F (-20° to 70° C) | |||||||||
Included with Instrument | All include certificate of calibration, manual and batteries. Plastic carry case included for EDx-1T to EDx-50T. Higher capacities include rugged plywood storage crate. Instruments with shackles include centering spacers (EDx-20T & up) and shackle storage crate (EDx-20T to EDx-75T). Display backlight. | |||||||||
Options | Shackles. Radio communications | |||||||||
Approval | CE |
Image | Name | Price | ||
---|---|---|---|---|
Dillon EDX-1T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509246) 2500 x 0.5 lbs
SKU: AWT05-509246 Capacity x Readability : 2500 lb x 0.5 lb More Info |
$3,660.00 |
|||
Dillon EDX-2-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509247) 5000 x 1 lb
SKU: AWT05-509247 Capacity x Readability : 5000 lb x 1 lb More Info |
$3,955.00 |
|||
Dillon EDX-5T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509248) 10,000 x 2 lb
SKU: AWT05-509248 Capacity x Readability : 10000 lb x 2 lb More Info |
$4,665.00 |
|||
Dillon EDX-10T-R-S-BS-WC EDXtreme RED Crane Scale (AWT05-509249) 25,000 x 5 lb
SKU: AWT05-509249 Capacity x Readability : 25000 lb x 5 lb More Info |
$5,935.00 |
|||
Dillon EDX-25T-R-S-NS-WC EDXtreme RED Crane Scale (AWT05-509250) 55,000 x 10 lb
SKU: AWT05-509250 Capacity x Readability : 55000 lb x 10 lb More Info |
$9,440.00 |
|
