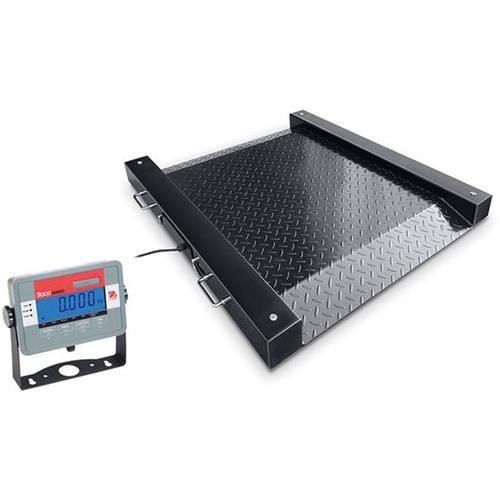

Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb

Ohaus Scales  and  Triple Beams
The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells more ...
Industrial Scales > Floor Scales > Drum Scale
Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb

Specifications Chart


Call for more info
Capacity x Readability
1000 lbx 0.2 lb
Pan Size
30 x 30 in
Download PDF
Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb
FREE Ground Shipping
(48 US States Only)
Price: $1,085.00

buy now
In Stock - Ships within 24 hours

Optional Accessories

View Features

Ohaus
SKU: DFD32M1000ES

Features

The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells (with alloy steel feet & top leveling), and the popular T32M indicator for clear display of weighing results. For rapid portability, the base can be turned onto its side using the stainless steel handles and it can moved around the shop floor using the two built-in wheels
  • Applications Weighing, Counting Parts, Checkweighing, Accumulation, Dynamic/Display Hold
  • Display Backlit liquid crystal display (LCD)
  • Operation AC adapter with Auto Shut-off feature (included)
  • Communication Easy access communication port including RS232 interface (included)
  • Construction Painted steel platform with treads, front ABS/rear painted carbon steel, indicator & mounting bracket, aluminum junction box, four alloy steel load cells with top height adjustment, front/back access ramps
  • Design Features Low-profile design
Standard Features Include: Choose from Five Models of Varying Sizes & Capacities for Industrial or Shipping Use Our Drum Scales come in five models with two platform sizes of 30 in × 30 in and 36 in × 36 in, and capacities from 500 to 2,500 lb, allowing greater flexibility to best suit your weighing needs Built Durably to Withstand Demanding Industrial Use The OHAUS Drum Scales feature a platform constructed of carbon steel with an epoxy paint finish which enables the scale to stand up to heavy industrial use. Items can be weighed on treaded platform or across side rails for larger items. Low-Profile Design & Convenient Portability with Polyurethane Wheels Low-profile design with front/back access ramps which allow pallet jacks, dollies, carts and drums to be easily rolled onto the platform. Integrated high-density polyurethane wheels enable convenient portability. Stainless steel handles and cord storage cleats fold flat to side of scale for storage.
1 Year Manufacture Warranty
Other Ohaus Defender 3000 Series Drum Scales
Image Name Price
Ohaus DFD32M500ES Defender 3000 Series 30 x 30 in Drum Scale 500 lb x 0.1 lb
Ohaus DFD32M500ES Defender 3000 Series 30 x 30 in Drum Scale 500 lb x 0.1 lb
SKU: DFD32M500ES
Capacity x Readability : 500 lb x 0.1 lb

Pan Size: 30 x 30 in
More Info
$1,085.00
buy now
Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb
Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb
SKU: DFD32M1000ES
Capacity x Readability : 1000 lb x 0.2 lb

Pan Size: 30 x 30 in
More Info
$1,085.00
buy now
Ohaus DFD32M1000ER Defender 3000 Series 36 x 36 in Drum Scale 1000 lb x 0.2 lb
Ohaus DFD32M1000ER Defender 3000 Series 36 x 36 in Drum Scale 1000 lb x 0.2 lb
SKU: DFD32M1000ER
Capacity x Readability : 1000 lb x 0.2 lb

Pan Size: 36 x 36 in
More Info
$1,259.30
buy now
Ohaus DFD32M2500ES Defender 3000 Series 30 x 30 in Drum Scale 2500 lb x 0.5 lb
Ohaus DFD32M2500ES Defender 3000 Series 30 x 30 in Drum Scale 2500 lb x 0.5 lb
SKU: DFD32M2500ES
Capacity x Readability : 2500 lb x 0.5 lb

Pan Size: 30 x 30 in
More Info
$1,085.00
buy now
Ohaus DFD32M2500ER Defender 3000 Series 36 x 36 in Drum Scale 2500 lb x 0.5 lb
Ohaus DFD32M2500ER Defender 3000 Series 36 x 36 in Drum Scale 2500 lb x 0.5 lb
SKU: DFD32M2500ER
Capacity x Readability : 2500 lb x 0.5 lb

Pan Size: 36 x 36 in
More Info
$1,196.33
buy now

Specifications

Model DFD32M500ES
30469909
DFD32M1000ES
30469910
DFD32M2500ES
30469911
DFD32M1000ER
30469912
DFD32M2500ER
30469913
Capacity x Readability 500 lb x 0.1 lb
250 kg x 0.05 kg
1000 lb x 0.2 lb
500 kg x 0.1 kg
2500 lb x 0.5 lb
1250 kg x 0.2 kg
1000 lb x 0.2 lb
500 kg x 0.1 kg
2500 lb x 0.5 lb
1250 kg x 0.2 kg
Platform Dimensions 30 x 30 in.
762 x 762 mm
36 x 36 in.
914.4 x 914.4 mm
Deck Material Painted Carbon Steel, Treaded Surface, Fixed Top Plate
Feet 4 x Swivel Design, Screw-In, Carbon Steel with Rubber Bottom Cap, Top Adjustable
Maximum Central Load 100% of Maximum Capacity
Load Cell 4 x IP67 Nickel Plated Alloy Steel Load Cells, Shear Beam
Junction Box IP65, Die-cast Aluminum, with 6 m (19.8 ft) Indicator Cable
Operating Temperature 50 °F to 104 °F / 10 °C to 40 °C
Indicator T32M, ABS Plastic Face Plate, Painted Metal Rear Housing
Weighing Units lb, kg
Modes Parts Counting, Dynamic, Checkweighing, Weight Accumulation
Display 6-digit, 7-segment LCD, 25 mm Digit Height, High-Contrast White LED Backlight
Keypad 4 Function Mechanical Switches and Raised Tactile Keys
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3d
Zeroing Range 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface RS232 Bi-Directional
Power 100–240 VAC, 50/60 Hz autoswitching wall adapter
Indicator Dimensions (W x D x H) 7.8 x 1.8 x 5.2 in.
198 x 46 x 132 mm
Scale Shipping Dimensions (W × D × H) 41.1 x 40.2 x 7.9 in.
1,044 x 1,022 x 200 mm
46.9 x 46.3 x 7.9 in.
1,190 x 1,175 x 200 mm
Scale Net Weight 101 lb
46 kg
126 lb
57 kg
Scale Shipping Weight 110 lb
50 kg
135 lb
61 kg

Other Standard Features and Equipment Four nickel-plated shear beam load cells for durable precision secured to alloy steel feet with top height adjustment (includes internal junction box), backlit LCD with fast weight display—includes adjustable filtering levels to meet the requirements of industrial environments, AC adapter (included), Auto-Shut Off feature, Parts Counting and Checkweighing modes for packaging and checking inventories, Accumulation mode allows running tally of totals, Dynamic feature for wheelchair and medical weighing, painted and stainless steel floor stands (available as accessories)

Compliance
  • Product Safety: T32MC indicator: CAN/CSA C22.2 61010-1; UL 61010-1; AC adapter: CAN/CSA C22 60950-1; UL 60950-1
  • Electromagnetic Compatibility: Canada ICES-003 Class B; FCC Part 15 Class B
  • Compliance marks: T32MC indicator: cCSAus; AC adapter: cULus
Accessories
RS232 Interface Cable to PC 25-pin. . . . . . . . . . 80500524
RS232 Interface Cable to PC 9-pin. . . . . . . . . . .80500525
Printer, Impact, SF40A, AM. . . . . . . . . . . . . .30064203
Printer, Thermal, STP-103, US. . . . . . . . . . . . 80251992
Interface Kit, RS232-USB. . . . . . . . . . . . . . . 30304101
Interface Kit, RS232-Ethernet. . . . . . .. . . . . . 30304102
Column Kit, Painted, Floor Scale. . . . . . . . . . .30047153
Column Kit, Stainless Steel, Floor Scale. . . . . .30047154

* within the 48 continental US States


Optional Accessories


Ohaus 80500525 RS-232 Cable PC 9 Pin
more info
Ohaus 80500525 RS-232 Cable PC 9 Pin
more info
Price: $158.40
In Stock
btn buy
Ohaus 80500525 RS-232 Cable PC 9 Pin for Defender 5000 with T51P
Ohaus STP-103 Palm-Sized Thermal Printer
more info
Ohaus STP-103 Palm-Sized Thermal Printer
more info
Price: $663.30
In Stock
btn buy
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
more info
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
more info
Price: $169.20
In Stock
btn buy
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
Ohaus SF40A Portable Dot-Matrix Impact Printer
more info
Ohaus SF40A Portable Dot-Matrix Impact Printer
more info
Price: $867.60
In Stock
btn buy

OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.

Standard Features Include

  • Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
  • Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
  • Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.

Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.

Ohaus 30304101 - Interface Kit, RS232-USB
more info
Ohaus 30304101 - Interface Kit, RS232-USB
more info
Price: $126.90
In Stock
btn buy
Ohaus 30304101 - Interface Kit, RS232-USB
Compatible Models
VN31P5000L
VN31P5000X
Bench Scale, D71P15HR1
D71P100HL2
D71P150HX5
D71P60HR1
D71P60HL2
D71P150HX2
D71P300HX2
D51P15HR5
D51P30HR5
D51P60HR5
D51P60HL5
D51P100HL5
D51P150HX5
D51P300HX5
D51P10QR5
D71P30HR1
D51P25QR5
D51P50QL5
D51P100QL5
D51P250QX5
D71P15HR5
D71P30HR5
D71P60HR5
D71P60HL5
D71P100HL5
D71P300HX5
D71P10QR1
D71P25QR1
D71P50QL2
D71P100QL2
D71P250QX2
D71P10QR5
D71P25QR5
D71P50QL5
D71P100QL5
D71P250QX5
Bench Scale, D31P30BR AM
Bench Scale, D31P60BR AM
Bench Scale, D31P60BL AM
Bench Scale, D31P150BL AM
Bench Scale, D31P150BX AM
Bench Scale, D31P300BX AM
T51P AM
T71P AM
T31P AM
Indicator, T32ME AM
Bench Scale, D31P15BR AM
Indicator, T32MC AM
Ohaus 30304102 - Interface Kit, RS232-Ethernet
more info
Ohaus 30304102 - Interface Kit, RS232-Ethernet
more info
Price: $126.90
In Stock
btn buy
Ohaus 30304101 - Interface Kit, RS232-USB
Compatible Models
VN31P5000L
VN31P5000X
D71P100HL2
D71P150HX5
D51P15HR5
Bench Scale, D71P15HR1
D71P60HR1
D51P30HR5
D51P60HR5
D51P60HL5
D51P100HL5
D51P150HX5
D51P300HX5
D51P10QR5
D51P25QR5
D71P60HL2
D71P150HX2
D71P300HX2
D71P30HR1
D51P50QL5
D51P100QL5
D51P250QX5
D71P15HR5
D71P30HR5
D71P60HR5
D71P60HL5
D71P100HL5
D71P300HX5
D71P10QR1
D71P25QR1
D71P50QL2
D71P100QL2
D71P250QX2
D71P10QR5
D71P25QR5
D71P50QL5
D71P100QL5
D71P250QX5
Bench Scale, D31P30BR AM
Bench Scale, D31P60BR AM
Bench Scale, D31P60BL AM
Bench Scale, D31P150BL AM
Bench Scale, D31P150BX AM
Bench Scale, D31P300BX AM
Bench Scale, D31P15BR AM
T31P AM
Indicator, T32ME AM
Indicator, T32MC AM
T51P AM
T71P AM
Ohaus 30047154 Column Kit, Stainless Steel, Floor Stand
more info
Ohaus 30047154 Column Kit, Stainless Steel, Floor Stand
more info
Price: $225.90
In Stock
btn buy
Ohaus 30047154 Column Kit, Stainless Steel, Floor Stand
Compatible Models
VN31P5000L
VN31P5000X
VX32XW2500L
VX32XW5000L
VX32XW5000X
VX32XW10000L
VN5000L
VX32XW10000X
VN5000X
