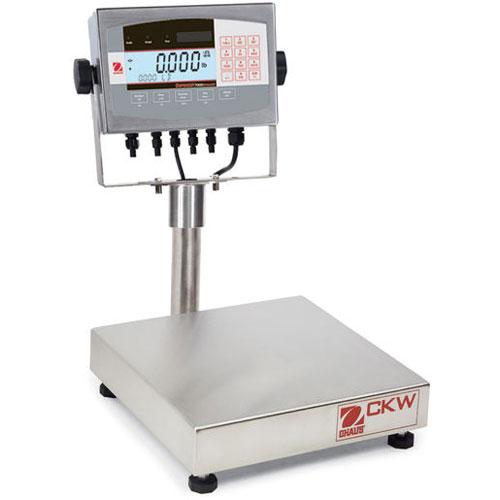

Ohaus CKW6R71XW Washdown Checkweighing Scale 15 x 0.002 lb and Legal for Trade 15 x 0.005 lb

Features

The OHAUS CKW Checkweighing Scale—Speed, Durability and Cleanliness
The OHAUS CKW Series is a feature-rich line of checkweighing scales, combining a stainless steel T71XW indicator with a square, all-stainless steel CKW washdown base and a stainless steel column. Ideal for production, packaging and general industrial checkweighing weighing applications, the CKW offers a multifunctional indicator with multiple weighing units, alphanumeric keypad and software modes to meet the requirements of industrial applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the CKW can meet the needs of demanding industrial operations

Standard Features Include:

All stainless-steel construction with IP66/NEMA4X protection for indicator, with loadcells protected to IP67
6,000-7,500d default resolution—NTEP/Measurement Canada 1:3,000 certified/approved resolution
Configurable checkweighing alerts with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.
Easy to operate with positive feedback 5-function key and alphanumeric membrane keypad
Additional weighing modes for Counting, Percent Weighing, Dynamic/Animal Weighing and Display Hold.
128 item Library data storage function, Accumulation of results with statistics.
Operator lock-outs for configuration menu as well as keys.
Internal power supply with universal line cord—optional NiMH internal rechargeable power pack available
Includes RS-232 interface with GMP/GLP data output including date and time
Options include DC relay control kit, AC relay control kit, RS-485/422 and 2nd RS-232 interfaces, Alibi memory module.

T71XW Indicator
Integral faceplate supports for easy servicing, hardware configuration lockout switch, Zero point calibration, calibration test, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over and underweight, overload and underload conditions

Compliance

Metrology: Made from Measurement Canada and NTEP certified components. Measurement Canada Notice of Approval AM-5607, AM-5762; NTEP Certificate of Conformance 06-030, 09-102
Product Safety: CAN/CSA C22.2 60950-1; UL 60950-1; IEC/EN 60950-1
Electromagnetic Compatibility: Canada ICES-003 Class B; FCC Part 15 Class B; IEC/EN 61326-1 Class B, Basic environments
Food Equipment: ANSI/NSF 169 (base only)
Compliance Marks: CE; cULus; NSF (base only)

Maximum Capacity	15 lb (6 kg)
Readability	0.002 lb (1 g)
Readability (Certified)	0.005 lb (2 g)
Platform Size	10 in x 10 in (254 mm x 254 mm)
Legal for Trade	NTEP Certified; Measurement Canada Approved
Power	AC Power (Included); Rechargeable Battery (Not Included)
Battery Life	35 Hours with Rechargeable Battery
Communication	RS232 (Included); 2nd RS232 (Available as an Accessory); RS422/485 (Available as an Accessory)
Dimensions	18.8 in x 13.2 in x 10 in (477 mm x 355 mm x 254 mm)
Display	LCD with white backlight + 3 checkweigh LED
Net Weight	22.1 lb (10 kg)
Outputs	AC Relays (Available as an Accessory); DC Relays (Available as an Accessory)
Protection Rating	IP66; NEMA 4X
Second Scale Input	Yes
Tare Range	To capacity by subtraction
Units of Measurement	Gram; Kilogram; Ounce; Pound; Pound:Ounce; Metric Tonnes; Custom
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)

Specifications

Model	CKW3R71XW 30448472	CKW6R71XW 30448473	CKW15L71XW 30448474	CKW30L71XW 30448475
Model	Standard Capacity x Readability	6 x 0.001 lb 96 x 0.02 oz 6 lb x 0.02 oz 3 kg x 0.5 g	15 x 0.002 lb 240 x 0.05 oz 16 lb x 0.05 oz 6 kg x 1 g	30 x 0.005 lb 480 x 0.1 oz 30 lb x 0.1 oz 15 kg x 2 g	60 x 0.01 lb 960 x 0.2 oz 60 lb x 0.2 oz 30 kg x 5 g
Maximum Displayed Resolution	1:6,000	1:7,500	1:7,500	1:6,000
Legal for Trade Capacity x Readability	6 x 0.002 lb 96 x 0.05 oz 3 x 0.001 kg	15 x 0.005 lb 240 x 0.1 oz 6 x 0.002 kg	30 x 0.01 lb 480 x 0.2 oz 15 x 0.005 kg	60 x 0.02 lb 960 x 0.5 oz 30 x 0.01 kg
Approval Resolution	1:3,000	1:3,000	1:3,000	1:3,000
Legal For Trade	NTEP Class III 5,000 d 06-030, 09-102 Measurement Canada AM-5607, AM-5762
Pan Size	10 x 10 in	10 x 10 in	12 x 12 in	12 x 12 in
Load Cell Capacity	6 kg	10 kg	30 kg	50 kg
Safe Overload Capacity	150% of rated capacity
Protection	NEMA 4X/IP66 for indicator, IP67 for loadcell
Column	Tubular 304 Stainless Steel 300 mm / 11.8 in. Fixed Height
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Modes	Weighing, Checkweighing, Counting, % Weighing, Dynamic Weighing/Display Hold
Weight Display	Dual line display with 25 mm / 1 inch high primary digits, white LED backlight
Checkweigh Indication	Green, yellow, red LEDs for OK, Underweight and Overweight
Keyboard	Positive feedback membrane keys, 5 function keys and alphanumeric keypad
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3 d
Zeroing Range	2% or 100% of capacity
Span Calibration	Span: 1 kg or 1 lb to 100% of capacity / Linearity: 3 or 5 point
Power	100-240 VAC / 50-60Hz internal universal power supply with hardwired cord
Operating Temperature Range	14 °F to 104 °F / -10 °C to 40 °C
Interface	Bidirectional RS-232 and external tare input
Net Weight	19.8 lb 9 kg	22.1 lb 10 kg	26.5 lb 12 kg	28.7 lb 13 kg
Shipping Dimensions (W × D × H)	19.1 x 15.3 x 16.1 in. 485 x 390 x 410 mm
Shipping Weight	26.5 lb 12 kg	28.7 lb 13 kg	33.1 lb 15 kg	35.3 lb 16 kg
