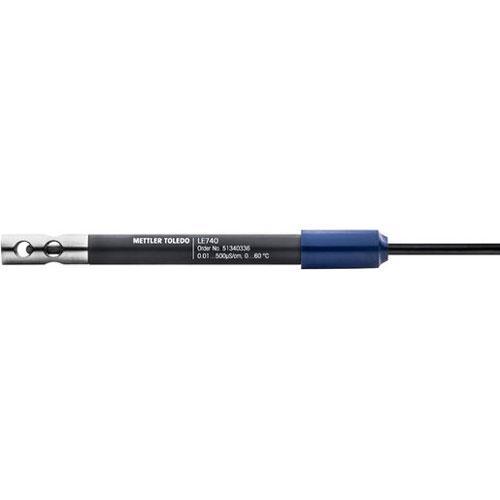

Robust conductivity probe from low to medium conductivities (0.01 uS/cm–500 uS/cm) more ... |
Features
Robust conductivity probe from low to medium conductivities (0.01 uS/cm–500 uS/cm)
High accuracy at low to medium conductivities: The 2-pole cell is a perfect solution to measure a wide range of conductivity samples.
Always the right temperature: The integrated temperature probe guarantees you always measure with the appropriate temperature compensation.
The right sensor for every application: Find the best suited sensor for your application
Measuring range |
0.01 – 500 uS/cm |
Temperature Range |
0 °C – 60 °C |
Connector |
Mini-DIN |
Cell type |
2 steel poles |
Cell Constant |
0.08 cm-1 |
Shaft Material |
PVC/Stainless Steel |
Sensor Type |
2 steel poles |
Shaft length |
120 mm |
Shaft Diameter |
12 mm |
Cable (Length) |
1 m |
Parameter |
Conductivity |
ISM |
No |
Temperature probe |
NTC 30 kO |
For portable meter |
No |
Signal type |
Analog |
Sample |
Low-ion strength (pure water) |
Cable and connectors |
1.0 m Mini-DIN |
Base Unit Temperature Range (Metric) |
0 °C – 60 °C |
