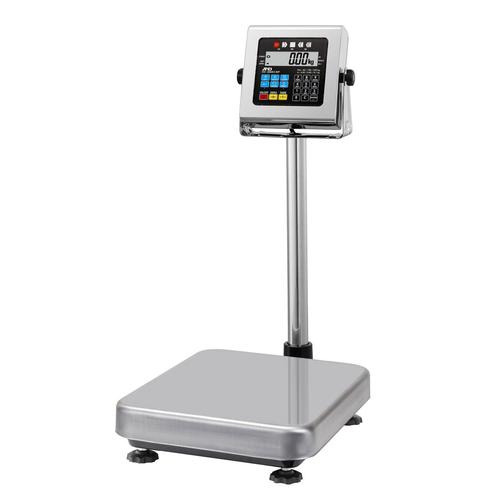

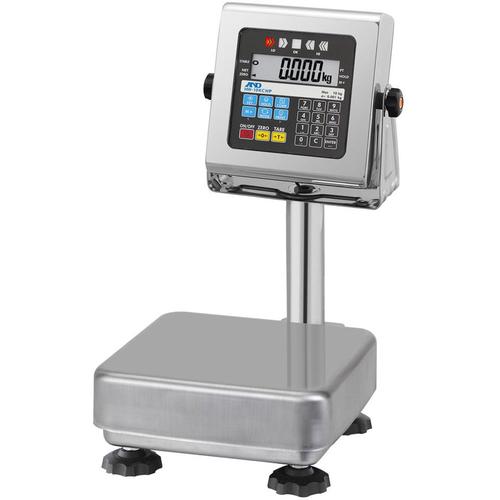

OverviewThe A&D HV-CWP/HW-CWP series is a multi-functional platform scale fitted
for measurement under wet conditions. With a durable construction,
high-speed response times and exceptional check weighing capabilities, it can
meet the demands of even the most challenging industrial applications
Capacity x Readability
Manufature:
AND WeighingNon Legal Mode:15 kg x 0.005 kg Legal For Trade: 15 kg x 0.005 kg Non Legal Mode:3 kg x 0.001 kg Legal For Trade: 3 kg x 0.001 kg Non Legal Mode:6 kg x 0.002 kg Legal For Trade: 6 kg x 0.002 kg Non Legal Mode:15 lb x 0.005 lb Legal For Trade: 15 lb x 0.005 lb Non Legal Mode:30 lb x 0.01 lb Legal For Trade: 30 lb x 0.01 lb Non Legal Mode:6 lb x 0.002 lb Legal For Trade: 6 lb x 0.01 lb Non Legal Mode:240 oz x 0.1 oz Legal For Trade: 240 oz x 0.1 oz 480 oz x 0.2 oz Non Legal Mode:96 oz x 0.05 oz Legal For Trade: 96 oz x 0.05 oz Pan Size 9.8 × 9.8 in SKU: HV-15KCWP Weight: 18.00 lb |
|||||||
The A&D HV-CWP/HW-CWP series is a multi-functional platform scale fitted
for measurement under wet conditions. With a durable construction,
high-speed response times and exceptional check weighing capabilities, it can
meet the demands of even the most challenging industrial applications
*i Multi-interval: The lighter the target object, the finer the readability.
Capacity (lb)
6 / 15 / 30*i
Resolution (lb)
0.002 / 0.005 / 0.01*i
Capacity (kg)
3 / 6 / 15*i
Resolution (kg)
0.001 / 0.002 / 0.005*i
Capacity (oz)
96 / 240 / 480*i
Resolution (oz)
0.05 / 0.1 / 0.2*i
Capacity (lb-oz)
30 lb
Resolution (lb-oz)
0.1 oz
Counting Mode (Max. Countable Number)
150,000
Counting Mode (Number of Samples)
5, 10, 20, 50 or 100
Response Time *i
Within 1 second
Repeatability (std. deviation) (kg)
00.001 / 0.002 / 0.005
Linearity (kg)
±0.001 / ±0.002 / ±0.005
Sensitivity Drift (typical)
±20 ppm / ? (5 to 35 °C / 41 to 95 °F)
Display
7 segment LCD (Character height: 26 mm) with backlight; 3-color, 5-step LED comparator lights
Display Refreshment Rate
10 times / second
Operating Temperature
–10 °C to 40 °C / 14 °F to 104 °F, 85% R.H. or less (no condensation)
Power Supply
AC main (100 to 240 V)
Weighing Pan Size
3250 × 250 mm / 9.8 × 9.8 in
Dimensions (W x D x H)
250 × 470 × 430 mm / 9.8 × 18.5 × 16.9 in
Weight (approx.)
8 kg / 18 lb
Legal for Trade
US, Canada/td>
*Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.

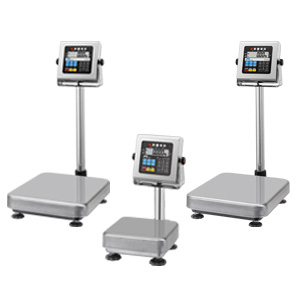

| Model | HV-15KCWP | HV-60KCWP | HV-200KCWP | HW-10KCWP | HW-60KCWP | HW-100KCWP | HW-200KCWP |
|---|---|---|---|---|---|---|---|
| Capacity x Readability | 3 x 0.001 kg* 6 x 0.002 kg* 15 x 0.005 kg* |
15 x 0.005 kg* 30 x 0.01 kg* 60 x 0.02 kg* |
60 x 0.02 kg* 150 x 0.05 kg* 220 x 0.1 kg* |
10 x 0.001 kg | 60 x 0.005 kg | 100 x 0.01 kg | 220 x 0.02 kg |
| 6 x 0.002 lb* 15 x 0.005 lb* 30 x 0.01 lb* |
30 x 0.01 lb* 60 x 0.02 lb* 150 x 0.05 lb* |
150 x 0.05 lb* 300 x 0.1 lb* 500 x 0.2 lb* |
20 x 0.002 lb | 150 x 0.01 lb | 200 x 0.02 lb | 500 x 0.05 lb | |
| 96 x 0.05 oz* 240 x 0.1 oz* 480 x 0.2 oz* |
480 x 0.2 oz* 960 x 0.5 oz* 2400 x 1 oz* |
2400 x 1 oz* 4800 x 2 oz* 8000 x 5 oz* |
320 x 0.05 oz | 2400 x 0.2 oz | 3200 x 0.5 oz | 8000 x 1 oz | |
| 30 lb x 0.1 oz | - | 20 lb x 0.1 oz | - | ||||
| Max. countable number (Counting mode) |
150,000 | 120,000 | 110,000 | 100,000 | 120,000 | 100,000 | 110,000 |
| Number of samples (Counting mode) |
5, 10, 20, 50 or 100 | ||||||
| Legal for Trade) | NTEP #17-099A2, Canada AM-6088r1 | ||||||
| Capacity x Readability | 3 x 0.001 kg* 6 x 0.002 kg* 15 x 0.005 kg* |
15 x 0.005 kg* 30 x 0.01 kg* 60 x 0.02 kg* |
60 x 0.02 kg* 150 x 0.05 kg* 220 x 0.1 kg* |
- | - | - | - |
| 6 x 0.002 lb* 15 x 0.005 lb* 30 x 0.01 lb* |
30 x 0.01 lb* 60 x 0.02 lb* 150 x 0.05 lb* |
150 x 0.05 lb* 300 x 0.1 lb* 500 x 0.2 lb* |
- | - | - | - | |
| Stabilization time*ii | Within 1 second | Within 1.5 seconds | |||||
| Repeatability (std. deviation) [kg] | 0.001 / 0.002 / 0.005 | 0.005 / 0.01 / 0.02 | 0.02 / 0.05 / 0.1 | 0.002 | 0.01 | 0.02 | 0.04 |
| Linearity [kg] | ±0.001 / ±0.002 / ±0.005 | ±0.005 / ±0.01 / ±0.02 | ±0.02 / ±0.05 / ±0.1 | ±0.002 | ±0.01 | ±0.02 | ±0.04 |
| Rated | IP65 | ||||||
| Sensitivity drift | ±20 ppm / (5 to 35 C / 41 to 95 F) | ||||||
| Display | 7 segment LCD (Character height: 26 mm) with backlight 3-color, 5-step LED comparator lights |
||||||
| Display update | 10 times / second | ||||||
| Operating environment | -10 C to 40 C / 14 F to 104 F, 85% R.H. or less (no condensation) | ||||||
| Power supply | AC main (100 to 240 V) | ||||||
| Weighing pan size | 250 x 250 mm 9.8 x 9.8 in |
330 x 424 mm 13.0 x 16.7 in |
390 x 530 mm 15.4 x 20.9 in |
250 x 250 mm 9.8 x 9.8 in |
330 x 424 mm 13.0 x 16.7 in |
390 x 530 mm 15.4 x 20.9 in |
390 x 530 mm 15.4 x 20.9 in |
| Dimensions (W × D × H) | 250 x 470 x 430 mm 9.8 x 18.5 x 16.9 in |
330 × 616 x 752 mm 13.0 × 24.3 x 29.6 in |
390 × 722 x 752 mm 15.4 × 28.4 x 29.6 in |
250 x 470 x 430 mm 9.8 x 18.5 x 16.9 in |
330 × 616 x 752 mm 13.0 × 24.3 x 29.6 in |
390 × 722 x 752 mm 15.4 × 28.4 x 29.6 in |
390 × 722 x 752 mm 15.4 × 28.4 x 29.6 in |
| Weight (approx.) | 8 kg / 18 lb | 12 kg / 26 lb | 19 kg / 42 lb | 8 kg / 18 lb | 12 kg / 26 lb | 19 kg / 42 lb | 19 kg / 42 lb |
| Options | HVW-02BCWP - USB interface (bi-directional, type mini-B) HVW-03CWP - RS-232C interface (terminal block) HVW-04CWP - Comparator relay output/buzzer interface HVW-13 - Large roller conveyer (for the 100 to 200 kg capacity models) HVW-14 - Medium-size roller conveyer (for the 60 kg capacity models) |
||||||
| Accessories | AD-1612 - Comparator buzzer AD-8127 - Compact printer AD-8526 - Serial/Ethernet converter AD-8922A - Remote controller AX-KO3285-320 - RS-232C cable for PC and AD-812 (D-Sub 9P, 3 m) AX-043005266 - Display unit holder |
||||||
|
||||||||||||||||||||
