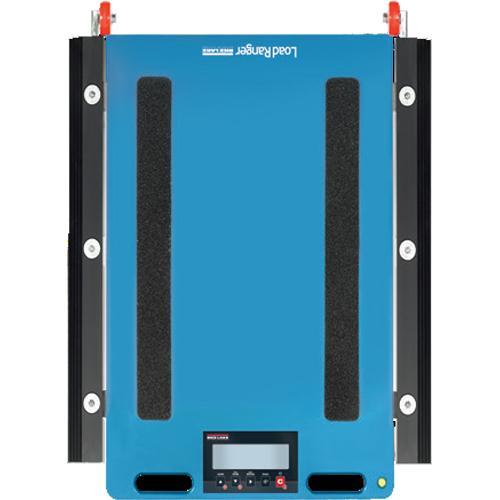

Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

Load Ranger wireless wheel pads offer an adaptable, high accuracy solution for vehicle weighing, with unmatched performance. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. The built-in weight display is equipped with a 2.4Ghz RF industrial radio communication for transmitting data wirelessly to the optional remote touchscreen indicator up to 160 ft away.

Law Enforcement Approved (212835 only)

Load Ranger Wheel Pad Scale Rice Lake Weighing Systems offers a portable scale option made to help law enforcement protect the roads from overload damage and unsafe conditions. Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger gives on-the-spot verification for direct enforcement of vehicle weight limitations.

Load Ranger has NTEP Class IIII approval to write legal tickets based on weight in authorized locations. This saves your department time and money by not having to drive to an offsite certified truck scale.

Why chose Load Ranger?

The built-in weight indicator of each Load Ranger wheel pad is equipped with an industrial Bluetooth with 2.4GHz wireless communication. To simplify operation, the Load Ranger wheel pads can be paired with an optional digital weight indicator with color touch screen and thermal printer fitted in an ABS plastic transport case. The optional digital weight indicator features axle weighing software that sums axle weights to eliminate human error and prints off a totalized ticket in real time for the officer’s records.

• Higher approved weight capacity and finer resolution of 22,000 x 20 lb
• Integrated ramps fitted with non-slip rubber base
• Internal rechargeable battery with 40 hours of battery life
• Ergonomic transport handle

Load Ranger Cart: For larger jobs, the Load Ranger cart can hold up to six Load Ranger wheel pads and one Load Ranger remote indicator.

Touchscreen Indicator To simplify operation, Load Ranger wheel weigh pads can be paired with a touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing of wheel pads to capture wheel or axle weights, either individually or in sets of up to 14 pads

Integrated weight display with protective cover: Wireless connection ability
Integrated Level: For correct platform positioning
Ergonomic Transport Handle: Easy on-site positioning
Integrated Ramps: Fitted with non-slip rubber base
Standard Features

• Up to 6 individual pads (3 sets) per system, completely wireless
• Up to 14 individual pads (7 sets) maximum per system, pairs must be joined with Y-cables and communicate wirelessly to the indicator
• Industrial RF radio module to communicate with indicator
• Integrated wheels and nonslip rubber under platform
• Internal rechargeable battery with 40 hours of battery life
• Built-in indicator on each scale with 1 in character display
• IP67 rating
• Cover plate protects built-in indicator

Optional remote indicator with integrated printer in carrying case:

• Carrying case: 1 ft x 1 ft 6 in x 7 in
• Backlit graphic display with touchscreen technology
• Internal battery with 10 hours of battery life
• Real-time clock
• Permanent data storage
• 24-bit A/D converter, up to 2,300 conversions per second
• One RS-232 serial port
• Thermal printer
• ABS transport case

Wheel weighing software:

• Multi-scale function mode weighs with up to 14 individual pads (seven sets)
• Static axle weighing function, up to two channels
• Calculation of center of gravity
• Semi-automatic and preset tare
• Selection of displayed data on LCD touchscreen
• 1,000 field database
• Print and display list of last 3,500 vehicles

Options/Accessories

• Leveling modules
• Aluminum ramps
• NTEP Class IIII Certified Versions (Select sizes and capacities only, consult factory for more info)

Model	Load Ranger 2G4-MD					Load Ranger 2G4-WD				Load Ranger 2G4-XWD
	212096	212097	212098	212099	212100	212101	212102	212103	212835	212104	212105	212106	212107
Capacity x Readability	3,300 x 1 lb	6,600 x 2 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	22,000 x 10 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	44,000 x 20 lb
Size W x L	22 in x 20 in H 2.28 in (564 mm x 511 mm x 58 mm)					30 in x 22 in H 2.28 in (750 mm x 561 mm x 58 mm)				37 in x 24 in H 2.28 in (950 mm x 611 mm x 59 mm)
Legal For Trade	-					-			YES NTEP Class IIII	-
Construction	Aluminum alloy
Display	1 in character display on each scale
System Accuracy	0.05% of rated capacity
Power Supply	Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor
Operating Temperature	14°F to 104°F (-10°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Rating	IP67
Warranty	2 year limited warranty
