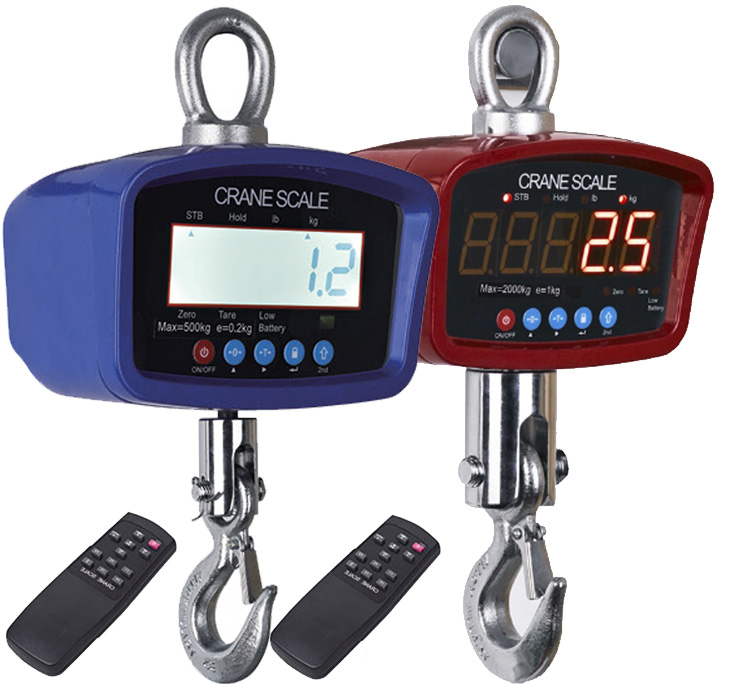

Fully featured light duty electronic crane scale LP7651 is ideal for light duty application in normal environment and watertight structure. Convenient, safe and high accuracy with a high- visibility LED / LCD display, easy install and recharging of battery pack, swivel hook and wireless remote control.

LP7651 crane scale provides the most efficient, simple solution to suspension weighing. The aluminium crane scale makes it genuinely portable and with a capacity range from 100 to 2000kg. It is suitable for a wide variety of applications.

The scale has a large bright red LED clearly visible from long distances and benefits from a long life internal 6V/4Ah rechargeable battery. An infrared remote control comes as standard and enables easy operation at a safe distance from the crane scale.

Hold, tare and zero features come as standard and there is an easy to use digital calibration routine to ensure weighing accuracy. This latest design of crane scale is robust, portable, accurate

FEATURES:

• 8mm high visibility LED display or 30mm high visibility LCD display
• Watertight structure, protect against moisture and dust
• High accuracy up to +/-0.03% of capacity
• Infrared remote controller (for up to 15m)
• Easy to change a battery pack
• Low battery status lamp
• Auto power off, sleep mode, hold functions
• Swivel Hook

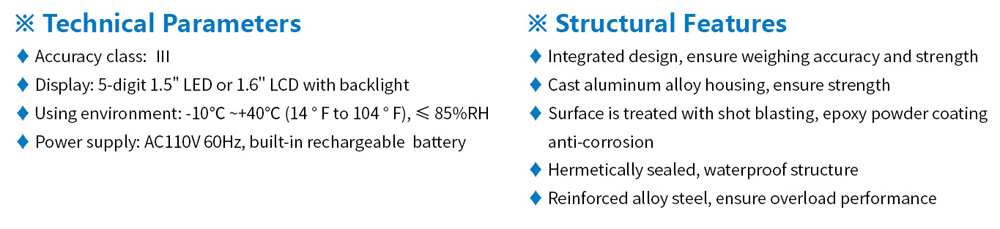

Structure
• integrated pull sensor design ensures weighing accuracy and strength;
• cast aluminum alloy to ensure structural strength;
• surface shot blasting paint treatment process, strong corrosion resistance;
• front and rear sealing design to ensure moisture resistance;
• reinforced alloy steel hook assembly to ensure overload and safety performance.

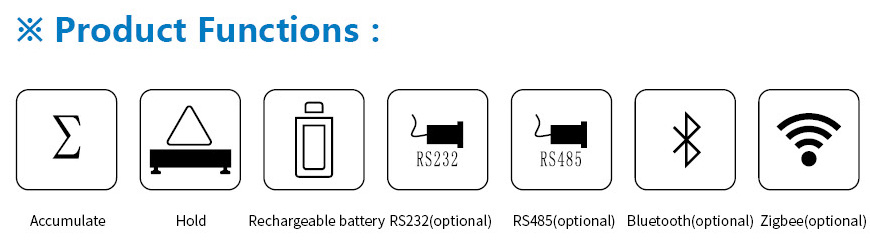

Function
• zero, peel, store, accumulate
• index value switching, data retention, power saving mode
• under-power shutdown, lock weight, preset tare
• low power design for longer battery life
• infrared remote control operation
• communication interface: RS232/RS485 (optional)

• Display 5-digit 38mm LED or 40mm LCD with backlight
• Power supply AC110/220V 50~60Hz, DC6V/4Ah lead acid battery
• Tare range 100% F.S
• Zero range 2% F.S
• Safe overload 120% F.S
• Ultimate overload 400% F.S
• Overload alarm 100% F.S+9e
• Operating temperature -10ºC ~ +40ºC
• Humidity =85%RH

• Accuracy class: ‡V
• LP7650E: 5-digit 1.5 inch LED LP7650C: 1.6 inch LCD with backlight
• Cast aluminum alloy housing
• Power supply: AC110V~130V, built-in rechargeable battery
• With remote control
• Options: Blue-tooth, WI-FI, Zigbee

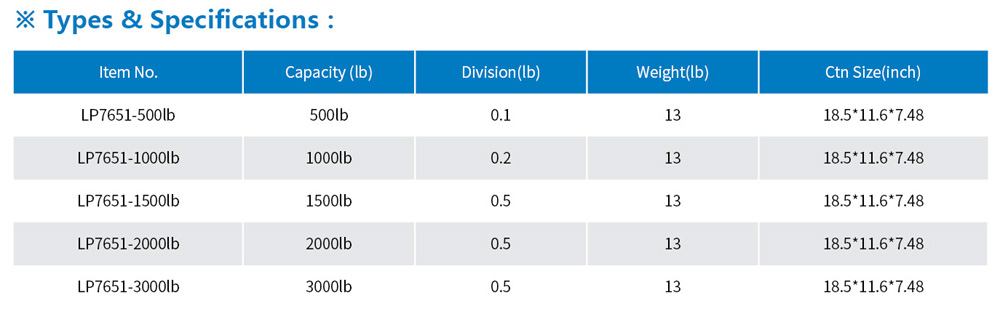

LED Model	LP7651E-500	LP7651E-1000	LP7651E-1500	LP7651E-2000	LP7651E-3000
LCD Model	LP7651C-500	LP7651C-1000	LP7651C-1500	LP7651C-2000	LP7651C-3000
Housing Material	Aluminum
Display	LP7650E: 5-digit 1.5 inch LED LP7650C: 1.6 inch LCD with backlight
Capacity x Redability	500 x 0.1 lb	1000 x 0.2 lb	1500 x 0.5 lb	2000 x 0.5 lb	3000 x 0.5 lb
Legal For Trade	-
Tare range	100% F.S
Zero range	2% F.S
Safe overload	120% F.S
Overload alarm	100% F.S+9e
Units	kg/lb switchable
Power	AC110/220V 50~60Hz, DC6V/4Ah lead acid battery
Ultimate overload	400% F.S
Temperature range	-10ºC ~ +40ºC
Humidity	=85%RH
