Wheel Weighing Scales > Wheel Load Systems > 2 Scale Wheel Load System | ||||||
|
||||||

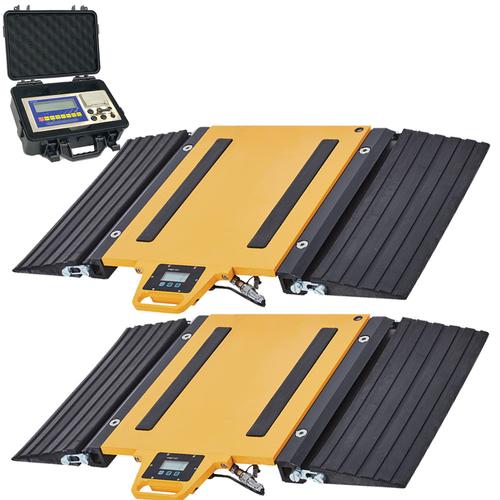

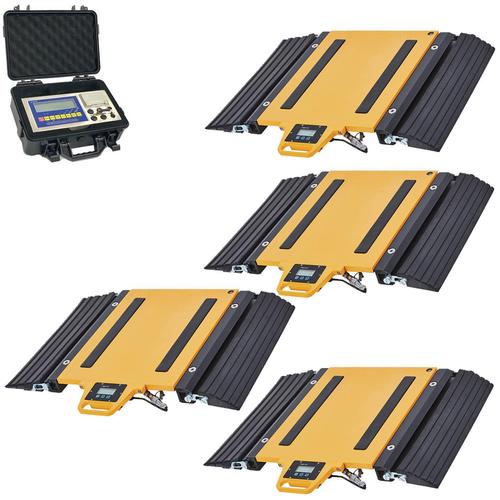

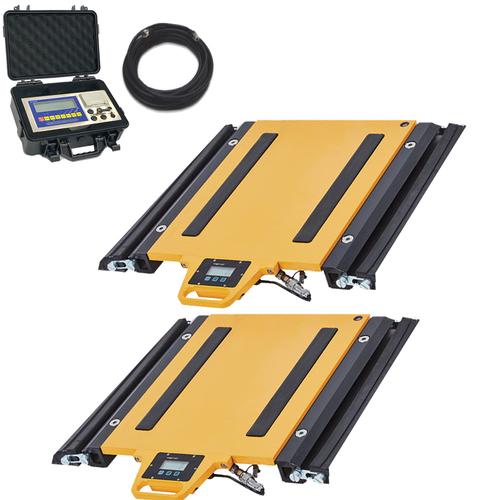

OverviewThe LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc |
The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface. Easy to transport

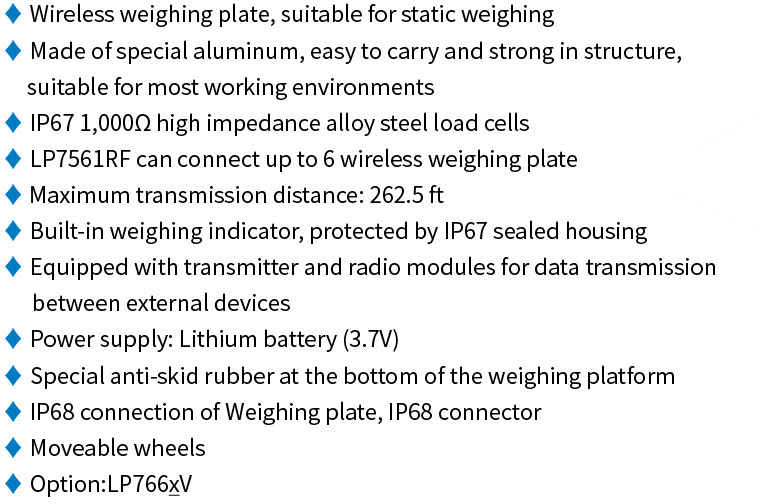

Main technical features:
Versatile and simple to use
The reduced weight and ergonomic handles make it easy to transport LP7660 platforms; furthermore, the bigger size are fitted with wheels which further simplify their movement.
Models | LP7660W-Y-1416-10 | LP7660W-Y-1624-20 | LP7660W-Y-1624-20 | LP7660W-E-1416-10 | LP7660W-E-1624-20 | LP7660W-E-2432-30- | LP7661W-Y-1416-5 |
---|---|---|---|---|---|---|---|
Display | 6-digit 1 inch LCD with backlight | ||||||
Capacity x Redability | 20000 x 5 lb (2 Pads 10000 x 5 lb) |
40000 x 10 lb (2 Pads 20000 x 10 lb) |
60000 x 20 lb (2 Pads 30000 x 20 lb) |
20000 x 5 lb (2 Pads 10000 x 5 lb) |
40000 x 10 lb (2 Pads 20000 x 10 lb) |
60000 x 20 lb (2 Pads 30000 x 20 lb) |
10000 x 1 lb (2 Pads 5000 x 1 lb) |

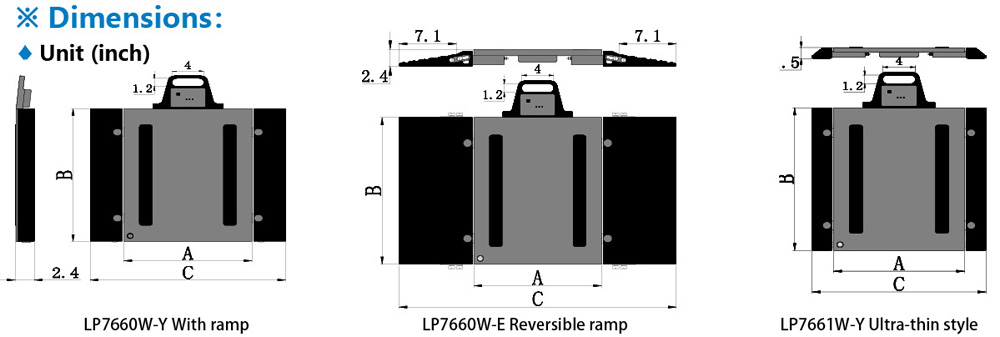

Size | 14 x 16 inch |
16 x 24 inch |
24 x 30 inch |
14 x 16 inch |
16 x 24 inch |
24 x 30 inch |
14 x 16 inch |
Material | Aluminum with self ramp | Aluminum with ruber ramp | Aluminum with self ramp | ||||
Ramp Size | 4 inch | 7 inch | 7 inch | 4 inch | 7 inch | 7 inch | 2.5 inch |
Legal For Trade | - | ||||||
Units | kg/lb switchable | ||||||
Temperature range | -10ºC ~ +40ºC | ||||||
Tare range | ±10%F.S | ||||||
rating | IP68 | ||||||
Include | 2 pads with ramps & transmitter, Weighing indicor | ||||||
Optinal | Self display transmitter; 4 or 6 pads | ||||||
Power | AC 110V 60Hz built-in rechargeable battery |
$2,464.80 |
|
