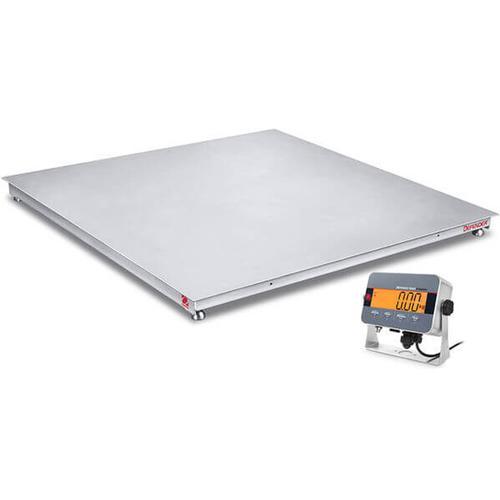

Defender 3000 Floor Platforms meet washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode. Scale also includes counting and totalization modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available.

DEFENDER™ 3000 WASHDOWN FLOOR SCALES-I-DF33

Floor Scales for Basic Industrial Applications

• Display 7 Segment LCD with multicolor backlight
• Communication Standard RS232 and optional USB Device or Ethernet
• Construction 304-grade stainless steel IP66 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, available stainless steel ramps
• Design Features Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
• Operation Internal power supply with power cord (included) or Rechargeable Battery (included)


304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction.

Platforms available in sizes of 3 × 3 or 4 × 4 ft, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.

Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.

Structural Features
Design features welded steel ribs and channels for structural stiffness
Top access to foot height adjustment screws makes leveling easy
Carbon steel eyebolts included for easy installation
Stainless steel feet with rubber bottoms are attached to each load cell – ball-in-cup design makes feet self-swiveling and base easier to install
Check Weighing
Gross / Net / Tare
Parts Counting
Weighing
Totalization
Auto Shut Off
Backlight
Battery Power Models
Environmental Filters
LED Check Weighing Indicator
Level Indicator
Leveling Feet
Low Battery Indicator
Overload Protection
Overload/ Underload Indicators
Rechargeable Battery (XW Models)
Software Lockout
Stability Indicator
NTEP Certifed

IP66 Washdown Model	i-DF33XW2500C1R 30837602	i-DF33XW2500C1L 30837605	i-DF33XW5000C1L 30837606
Capacity x Redability	2500 lb x 0.5 lb	2500 lb x 0.5 lb	5000 lb x 1 lb
	1250 kg x 0.2 kg	1250 kg x 0.2 kg	2500 kg x 0.5 kg
Legal For Trade	NTEP: CC 21-070 Class lll; Load Cell: NTEP: CC 13-081 Platform: NTEP: CC 08-048A2
NTEP Certified Resolution	1:5,000
Platform Size	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft
Power	100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery (30-hour operation on full charge)
Indicator	IP66 stainless steel indicator (i-DT33XW)
Platform Material	Stainless steel, sand-blasted flat surface, fixed top plate 5mm / 0.196 in thick
Display	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Keyboard	4 membrane function keys
Load Cell Model	4 x IP68 alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1100 kg
Load Cell Output Impedance	350 ohm ± 3.5 ohm
Load Cell Excitation Voltage	5V ~ 15V, DC/AC
Junction Box	IP68, 304 stainless steel, with 20’ EasyConnect cable
Net Weight	216 lb / 98 kg	260 lb / 118 kg	260 lb / 118 kg
Approx. Shipping Weight	247 lb / 112 kg	291 lb / 132 kg	291 lb / 132 kg
Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in
Shipping Dimension (W x L x H)	4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm
Weighing Units	kg, lb, t°C
Application Modes	Weighing, Parts Counting, Checkweighing and Totalization
Displays	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Interface	RS232 included - Optional USB, Ethernet
Maximum Central Load	160% of maximum capacity
Safe Endload Capacity	100% of maximum capacity
Operating Temperature	14°F – 104°F / -10°C – 40°C, 85%RH, non-condensing
Feet	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leveling
Accessories	Ramps, Mounting Foot Plates, Floor Columns

Accessories

• Foot Plate Kit Painted Steel for i-DFxxxB1x . . . . . 72198344
• Foot Plate Kit Stainless Steel for i-DFxxxC1x . . . . 72198345
• Ramp Kit 36” Painted Steel for i-DFxxxB1R . . . . . 30812889
• Ramp Kit 48” Painted Steel for i-DFxxxB1L . . . . . 80252565
• Ramp Kit 60” Painted Steel for i-DFxxxB1X . . . . . 80252566
• Ramp Kit 36” Stainless Steel for i-DFxxxC1R . . . . 30812890
• Ramp Kit 48” Stainless Steel for i-DFxxxC1L . . . . 30812891
• Ramp Kit 60” Stainless Steel for i-DFxxxC1X . . . . 30812892
• Ethernet Kit i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
• USB Device Kit i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . 30699120
• Dust Cover (5) i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . 30699121
• Rechargeable Battery Kit i-DT33P . . . . . . . . . . . . . 30699122
• SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
• Cable RS232 i-DT33P . . . . . . . . . . . . . . . . . . . . . . . . . 80500525
• Cable RS232 i-DT33XW . . . . . . . . . . . . . . . . . . . . . . . 80500552
• Floor Scale Column Kit Painted . . . . . . . . . . . . . . . 30531244
• Floor Scale Column Kit SST . . . . . . . . . . . . . . . . . . . 30539553
• Thermal Printer STP-103 . . . . . . . . . . . . . . . . . . . . . 80251992
• Auxiliary display AD7-RS . . . . . . . . . . . . . . . . . . . . . 30472064
