Minebea Intec, a leading global manufacturer of industrial weighing and inspection technologies, presents the new weighing platform MiNexx® 3000 - the new generation of bench scales. With innovative design and outstanding functionality, MiNexx® 3000 sets new standards in precision, efficiency and integration capability. This new solution was developed to meet the ever-increasing demands of purchasing managers, quality managers, process managers and product and technology managers.

Weighing platforms such as the MiNexx® 3000 are set up on benches or work surfaces and are used wherever small quantities need to be weighed with high accuracy. Whether in the factory floor production area or in the laboratory, the MiNexx® 3000 can be used tocarry out basic weighing, checkweighing and completeness checks or to perform dosing, classifying, sorting and counting processes with high precision. Minebea Intec has been manufacturing high-quality weighing solutions for more than 150 years and always incorporates valuable feedback from the market into its product innovations. This is also the case with the weighing platform MiNexx® 3000.

Weighing platform MiNexx® 3000: What is special about this bench scale? The MiNexx® 3000 weighing platform is characterisedby its V-shaped substructure, which not only enables optimum force distribution but also ensures excellent protection of the high-precision load cell. The easy-to-clean design makes it ideal for demanding production environments, while its high configurability enables customised adaptation to various industrial applications. For example, resolutions from 15,000d up to 75,000d or up to 6,000e and even 3x3,000e can be selected depending on requirements. In addition, a readability of 0.05g to 100g steps is possible and it can be varied between different surface treatments and load ranges from 1.5kg to 300kg are available. The robust design also enables use in the potentially explosive zone 2/22 - zone 1/21 is to follow in the near future.

Customer wishes fulfilled - maximum precision at a fair price The MiNexx® 3000 weighing platform both guarantees maximum precision and accuracy and also fulfils all relevant industry standards such as ISO 14001 and DIN EN ISO 9001 and certifications such as OIML, RoHS, Reach and ATEX. Quality managers can therefore rely on MiNexx® 3000 to ensure high quality results in industrial processes while meeting all necessary compliance requirements. MiNexx® 3000 not only sets new standards in terms of quality, but also in terms of cost efficiency. Purchasing managers can rely on MiNexx® 3000 to fulfil their budget requirements. "During development, we also focussed on ease of maintenance and durability," says Eren Sagdas. "With its seamless integration capability into existing production and OEM systems, MiNexx® 3000 also increases production efficiency." The integration of MiNexx® 3000 into existing production processes promotes a smooth and coherent production chain.

High-precision weighing indicators for weighing platforms In order to utilise the weight values determined by the bench scales efficiently in the production processes, the signals must be recorded and forwarded to the production control system. Minebea Intec offers a broad portfolio of weighing indicators for bench and floor scales for this purpose. Whether customers are looking for a terminal for simple weighing tasks or for multiple applications such as piece counting, filling or checkweighing, all weighing indicators are characterised by user-friendly operation and a robust design. All terminals can be flexibly positioned near the scale or mounted on the wall or on a stand. Minebea Intec offers sophisticated software products such as SPC@Enterprise and ProRecipe XT for the reliable integration of bench scales into production lines.

Weighing and inspection technologies including accessories: everything from a single source from Minebea Intec The competent and experienced Minebea Intec team is on hand to advise its customers throughout the entire project planning process. From the selection of the right technologies to commissioning and maintenance. With the market launch of the innovative weighing platform MiNexx® 3000, Minebea Intec remains true to its brand promise "the true measure" and presents a solution that not only sets new standards in precision, but also raises efficiency in industrial processes to a new level.

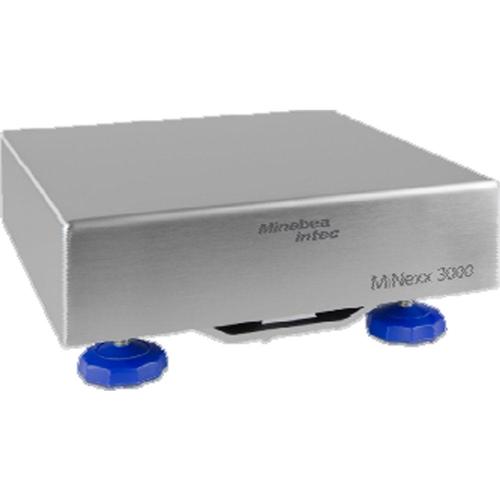

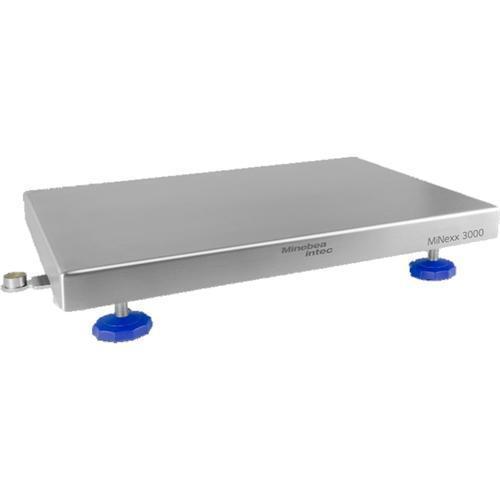

Weighing platforms MiNexx® 3000 - The next generation of accurate weighing experience

The MiNexx weighing platforms convince with their superior design and their high configurability. The innovative V-shape design is a market benchmark and allows an excellent protection of the load cell. The durable and robust construction ensures reliable performances in the most demanding environments. MiNexx weighing platforms offer a multitude of configuration options and can be tailored to suit a wide variety of industrial applications.

Benefits
• Innovative V-Shape design
• Highly configurable
• Superior construction
• Flexible use

Maximum accuracy and efficiency for your applications
• The recognizable design of the bench platforms allows an optimal distribution of the acting forces and an excellent protection of the load cell.
• The MiNexx® weighing platforms fit in every production environment. You can choose between a wide range of dimensions, capacities, resolutions and materials. With IP69, the platforms can be used even in the most demanding environmental conditions.
• Thanks to the extremely low height, the platforms require only little space. In addition the fluid drainage is simplified which enables easy and thorough cleaning
• The sophisticated design makes it possible to attach a column at every side of the platform (at two sides for the square shaped platforms). This offers complete flexibility and the freedom to integrate the platforms in every common production process.

Platform Selection- Metric Sizes 12.6" x 12.6" 15.7" x 12.6" - 60,000 divisions (75,000 divisions for 33lb & 330lb Platforms)
Model	NP3AP-30ED-P	NP3AP-60ED-P	NP3AP-3DD-P	NP3AP-6DD-P	NP3AP-60DD-P	NP3AP-30DD-P	NP3AP-15DD-P
Capacity x Readability	66 lb x 0.001 lb	132 lb x 0.002 lb	6 lb x 0.0001 lb	13 lb x 0.0002 lb	132 lb x 0.002 lb	66 lb x 0.001 lb	33 lb x 0.0004 lb
	30 kg x 0.5 g	60 kg x 1 g	3 kg x 0.05 g	6 kg x 0.1 g	60 kg x 1 g	30 kg x 0.5 g	15 kg x 0.2 g
Dimensions	15.7" x 12.6" x 3.7"		12.6" x 12.6" x 3.2"
Base Frame	Galvanized Steel
Load Plate	Stainless Steel
Cable Length	10 ft
IP protection rating	IP66/IP67
Humidity	10% - 90% at 40°C
Divisions	60,0000						75,0000

*60,000d Models Must be ordered with CAIS... indicator + YDI02C-WP10 high performance A/D converter

more info Minebea Combics 1 CAISL1-UV1 (IP44) Pre-wired For Direct Connection To Minebea Platform more info Price: $1,823.05 In Stock Combics 1 Indicator, pre-wired for direct connection to IS Digital platform Display, LCD, backlit with 20mm weight value, Standard data interface RS232 via D-SUB 25-pin connector. Material: stainless steel. Ingress protection: IP44 , Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Display LCD, backlit with 20mm weight value Standard data interface RS232 via D-SUB 25-pin connector One scale connection in total (analog or digital) Material: stainless steel, ingress protection: IP44 more info Minebea Combics 2 CAISL2-UV1 (IP44) Pre-wired For Direct Connection To Minebea Platform more info Price: $2,121.35 In Stock Combics 2 Indicator, pre-wired for direct connection to IS Digital platform, Display LCD, backlit with 20mm weight value Integrated LED’s for checkweighing (red-green-yellow). Standard data interface RS232 via D-SUB 25-pin connector, PS/2 connector. Basic- Applications: Weighing, counting, animal weighing, checkweighing, sorting (3 or 5 classes), totalizing, net-total, averaging, weighing in percent, neutral measurement. Material: stainless steel. Ingress protection: IP44, Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Display LCD, backlit with 20mm weight value Integrated LEDs for checkweighing (red-green-yellow) Two scale connections in total (analog or digital) Standard data interface RS232 via D-SUB 25-pin connector, PS/2 connector Basic applications: weighing, counting, animal weighing, checkweighing,sorting totalizing, net-total, averaging, percent weighing Material: stainless steel, ingress protection: IP44 Colck option standard for date and time more info Minebea Combics 3 CAISL3-UV1 (IP44) Pre-wired For Direct Connection To Minebea Platform more info Price: $2,563.10 In Stock Combics 3 Indicator, Dot-matrix display, backlit, weighing data with status indicators, Integrated LED’s for checkweighing (redgreen- yellow). Standard 2 data interfaces RS232 via D-SUB 25-pin/ D-SUB 9-pin connector, PS/2 connector Basic-Applications: Weighing, counting, animal weighing, checkweighing, sorting (3 or 5 classes), totalizing, net-total, averaging, weighing in percent, neutral, measurement. More application as option. Material: stainless steel. Ingress protection: IP44, Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Dot-matrix display, backlit, weighing data with status indicators Integrated LEDs for checkweighing (red-green-yellow) Standard data interface RS232 via D-SUB 25-pin connector, PS/2 connector Two scale connections in total (2 digital, 1 analog or 1 digital, 2 analog) Basic applications: weighing, counting, animal weighing, checkweighing, sorting totalizing, net-total, averaging, percent weighing Material: stainless steel, ingress protection: IP44 Colck option standard for date and time more info Minebea Combics 1 CAIS1-UV1 (IP69K) Pre-wired For Direct Connection To Minebea Platform more info Price: $2,097.60 In Stock Combics 1 Indicator, pre-wired for direct connection to IS Digital platform, Display LCD, backlit with 20mm weight value. Standard data interface RS232 via cable glands. Material: stainless steel. Ingress protection: IP69K, Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Display LCD, backlit with 20mm weight value Standard data interface RS232 via D-SUB 25-pin connector One scale connection in total (analog or digital) Material: stainless steel, ingress protection: IP69k more info Minebea Combics 2 CAIS2-UV1 (IP69K) Pre-wired For Direct Connection To Minebea Platform more info Price: $2,507.05 In Stock Combics 2 Indicator, pre-wired for direct connection to IS Digital platform, Display LCD, backlit with 20mm weight value Integrated LED’s for checkweighing (red-green-yellow). Standard data interface RS232, PS/2 via cable glands. Basic-Applications: Weighing, counting, animal weighing, checkweighing, sorting (3 or 5 classes), totalizing, net-total, averaging, weighing in percent, neutral measurement. Material: stainless steel. Ingress protection: IP69K , Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Display LCD, backlit with 20mm weight value Integrated LEDs for checkweighing (red-green-yellow) Basic applications: weighing, counting, animal weighing, checkweighing,sorting totalizing, net-total, averaging, percent weighing Material: stainless steel, ingress protection: IP69k Colck option standard for date and time more info Minebea Combics 3 CAIS3-UV1 (IP69K) Pre-wired For Direct Connection To Minebea Platform more info Price: $2,988.70 In Stock Combics 3 Indicator, pre-wired for direct connection to IS Digital platform, Dot-matrix display, backlit, weighing data with status indicators, Integrated LED’s for checkweighing (red-green-yellow). Standard 2 data interfaces RS232, PS/2 via cable glands. Basic- Applications: Weighing, counting, animal weighing, checkweighing, sorting (3 or 5 classes), totalizing, net-total, averaging, weighing in percent, neutral, measurement. more applications as option. Material: stainless steel. Ingress protection: IP69K , Combics Indicators are Class III NTEP & Canadian Measure approved Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications. Standard Features Dot-matrix display, backlit, weighing data with status indicators Integrated LEDs for checkweighing (red-green-yellow) Standard data interface RS232 via D-SUB 25-pin connector, PS/2 connector Two scale connections in total (2 digital, 1 analog or 1 digital, 2 analog) Basic applications: weighing, counting, animal weighing, checkweighing, sorting totalizing, net-total, averaging, percent weighing Material: stainless steel, ingress protection: IP69k Colck option standard for date and time
