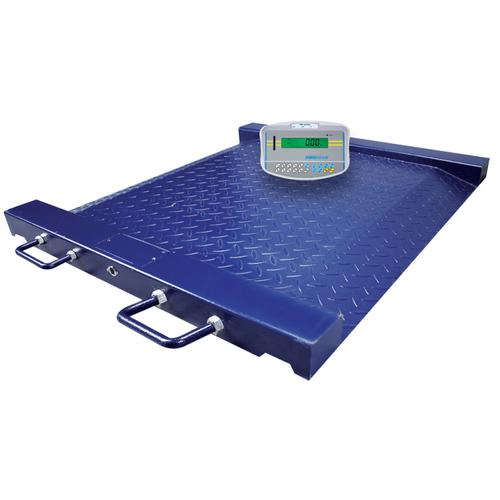

Adam Equipment PTM-500 [GK-S] Drum Wheelchair Scale (GK-S Indicator), 1100 x 0.2 lb

Features

The PTM low-profile platform is ideal for weighing barrels, wheelchairs and oversized containers. Ramps on both sides offer smooth transitions between the floor and the weighing platform, while handles and wheels allow easy mobility.The GK-S indicator provides a simple user interface for efficient operation and quick results.

The PTM drum scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform. Suitable for use in warehouses and other locations, the PTM drum scale is ideal for checking the weight of barrels and drums, or loaded dollies. The PTM can also be used for weighing wheelchair occupants or people with limited mobility. The PTM features a mild steel diamond plate surface that provides good grip and a solid, steady weighing area. Handles and wheels enable easy portability in a warehouse or other environments. This PTM is paired with the GK-S indicator for simple yet intuitive operation thanks to a five-button keypad and colour-changing display for checkweighing.

Features and Benefits

Adjustable leveling feet help optimize setup
Built-in ramps on each side enable easy access
Diamond-plate surface for added grip
Heavy-duty rubber feet ensure stability of unit
Integrated wheels permit easy movement
Approximately three-meter/10-foot load cell cable
Rugged construction stands up to industrial use
Ramps allow easy access for wheelchair use
Simple, 5-key operation allows for easy set up and use
Capacity tracker built into display for easily monitoring possible overloads
Selectable language for printing
Hold function freezes the displayed weight, allowing time to elapse without losing the result
Auto power-off to save energy
Memory accumulation totals results
Vivid, backlit LCD easily visible in any lighting conditions
Solid ABS housing is durable for industrial use
External calibration allows for verification and adjustment with weights
Optional USB interface simplifies data communication
RS-232 interface provides speedy connection to computers and printers
Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
Optional rechargeable battery for operation almost anywhere
Wall-mount bracket for placing indicator on vertical surface
1:1,600,000 Internal counting resolution for precise results
Large, 40mm-high easy to read digits on a bright background
A 3-year warranty means quality assured for years of use.

Specifications

Model	PTM-500-GK-S	PTM-500-GK-S	PTM-500-AE403	PTM-500-AE503
Capacity x Readability	1100 x 0.2 lb	1100 x 0.2 lb	1100 x 0.2 lb	1100 x 0.2 lb
Capacity x Readability	500 x 0.1 kg	500 x 0.1 kg	500 x 0.1 kg	500 x 0.1 kg
Pan Size	32.3 x 30.7 inch	32.3 x 30.7 inch	32.3 x 30.7 inch	32.3 x 30.7 inch
Repeatability S.D.	0.4 lb / 0.1 kg	0.4 lb / 0.1 kg	0.4 lb / 0.1 kg	0.4 lb / 0.1 kg
Linearity +/-	0.4 lb / 0.2 kg	0.4 lb / 0.2 kg	0.4 lb / 0.2 kg	0.4 lb / 0.2 kg
Overall Dim.	40.2" x 31.6" x 3" / 1020 x 803 x 75mm (wxdxh)
Weighing Units	g, kg, lb, lb:oz, oz		g, kg, lb, lb:oz, oz, N, custom unit	g, kg, lb, oz, lb:oz
cable	10 foot
Stabilization Time	2 Sec
Display	Backlit LCD with 1.0" / 25mm high digits	Backlit LCD with 1.6"/40mm high digits	Backlit LCD with 1.6"/ 40mm -high digits	Backlit LCD with 1.3"/ 34mm -high digits
keypad	5-key	full numeric keypad	6-key	6-key
Power Supply	AC adapter / Optional internal rechargeable battery		12VDC 3A adapter / Internal rechargeable battery
Interface	RS-232 (Optional USB)		RS-232	RS-232
Built-In Printer	-	-	YES
Net Weight	96.80 lb / 44kg	78.2lb / 35.5kg	78.2lb / 35.5kg
Calibration	External calibration
Construction	Mild steel base
Operating Temperature	-10° to 40°C / 14° to 104°F

Other Models

Other Adam Equipment PTM-500 Drum - Wheelchair Scales

Image	Name			Price

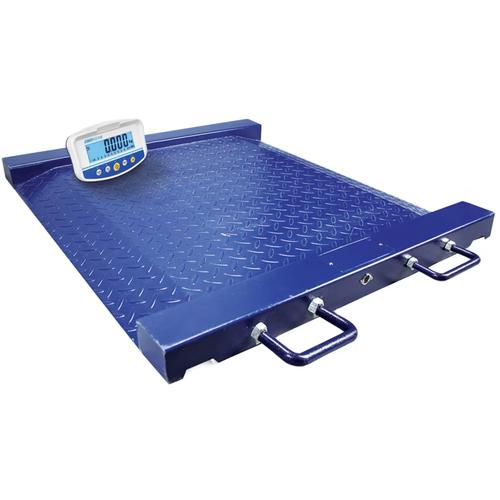

	Adam Equipment PTM-500 [GK] Drum Wheelchair Scale (GKa Indicator), 1100 x 0.2 lb SKU: PTM-500-GK Capacity x Readability : 1100 lb x 0.2 lb Pan Size: 32.3 x 30.7 in More Info			$1,396.00

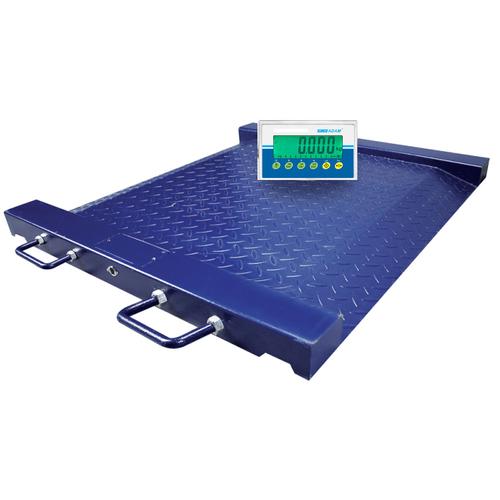

	Adam Equipment PTM-500 [AE403a] Drum Wheelchair Scale (AE403 Indicator), 1100 x 0.2 lb SKU: PTM-500-AE403 Capacity x Readability : 1100 lb x 0.2 lb Pan Size: 32.3 x 30.7 in More Info			$1,536.00

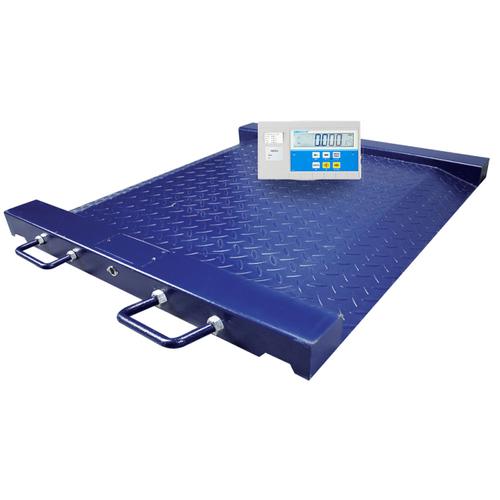

	Adam Equipment PTM-500 [AE503] Drum Wheelchair Printing Scale (AE503 Indicator), 1100 x 0.2 lb SKU: PTM-500-AE503 Capacity x Readability : 1100 lb x 0.2 lb Pan Size: 32.3 x 30.7 in More Info			$1,692.00
