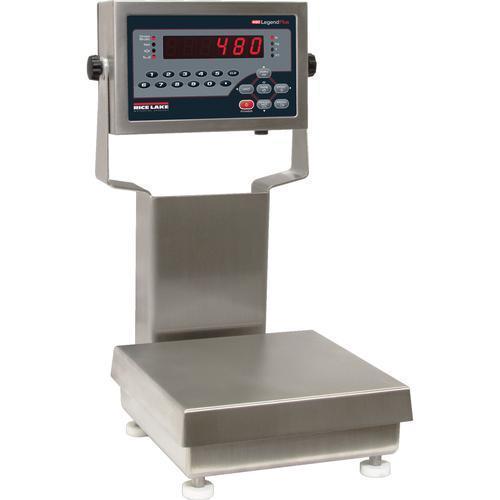

Rice Lake CW-90XB-480 201244 IP69K Base Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 25 x 0.005 lb

Features

Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds.

This package pairs the 480 Legend Series digital weight indicator with the CW-90B. Rice Lake’s 480 has a 0.8-inch 6-digit LED display, NEMA Type 4X/IP66 stainless steel washdown enclosure and programmable ticket formats for gross, net, accumulator and setpoints.

This package can also pair the 482 Legend Series digital weight indicator with the CW-90XB. Rice Lake’s 482 has a 0.8-inch 6-digit LCD backlit display and a NEMA Type 4X/IP66 stainless steel washdown enclosure, making it ideal for demanding workplaces. Advanced circuitry withstands electrical noise, power disturbances and transient spikes common to industrial applications.

480 Indicator and IP69K CW-90XB Base

Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
Factory calibrated with indicator setup and configured for 5,000 divisions
Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
AC power 100 to 240 VAC
Numeric keypad (480 plus)
Battery backed time and date
Standard RS-232 serial ports for connecting to peripherals

Specifications

With 480 Indicator and IP69K CW-90XB Base
Model with 480 Indicator	201241	201242	201243	201244	201245	201246
Model with 480 Plus Indicator	201247	201248	201249	201250	201251	201253
Capacity Readability	5 x 0.001 lb	10 x 0.002 lb	25 x 0.005 lb	25 x 0.005 lb	50 x 0.01 lb	100 x 0.02 lb
Capacity Readability	2500 x 0.5 g	5000 x 1 g	10,000 x 2 g	10,000 x 2 g	25,000 x 5 g	50 x 0.01 kg
Pan Size	10 x 10 in			12 x 12 in
Rating	Base: IP69K Indicator: IP66
Scale Construction	304 stainless steel
Maximum Overload	180% to 200% depending on capacity
Overload Protection	Five-point, independently adjusted
Scale Frame	AISI304L, straight line finish, Ra= 45 +/- 10
Scale Cover	AISI304L, straight line finish, Ra= 45 +/- 10
Cable Length	34 in
Compensated Temperature Range	14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade	NTEP Base: 95-072 Indicator: 12-123
Legal for Trade	Measurement Canada Base: AM-5082 Indicator: AM-5892C
Interface	Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display	LED display 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators	Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons	Flat membrane panel, embossed keys, tactile feel
Rating/Material	Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
