OverviewMeasure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever. The tester's standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.
|
||||||
Measure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever. The testers standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.

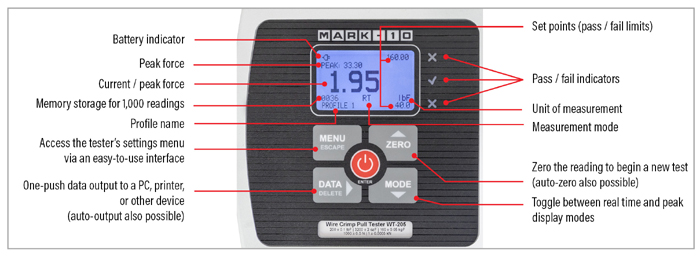

A backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used. A load bar on the display shows when an overload is approaching.
Transfer data to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The WT-205 stores up to 1,000 readings and calculates statistics. Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing efficiency.
The WT-205 accommodates virtually any wire insulation type via standard and optional grips. We recommend sending wire samples to us for evaluation before purchase to determine if the standard grips are appropriate or if any optional ones are needed.

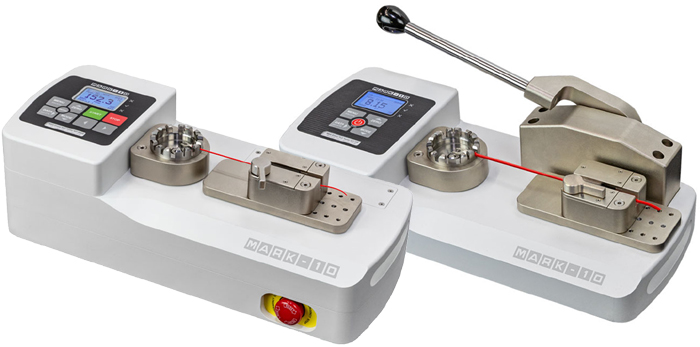

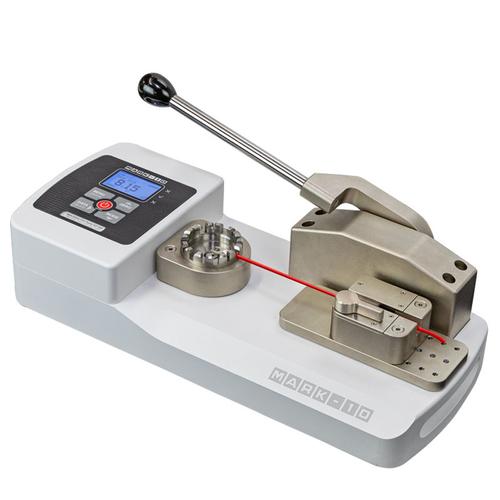

The WT-205 Wire Crimp Pull Tester is shipped as shown at left, and includes the following accessories:
(1) Removable lever
(1) USB cable
(1) Battery
(1) AC adapter
(1) Certificate of calibration without data

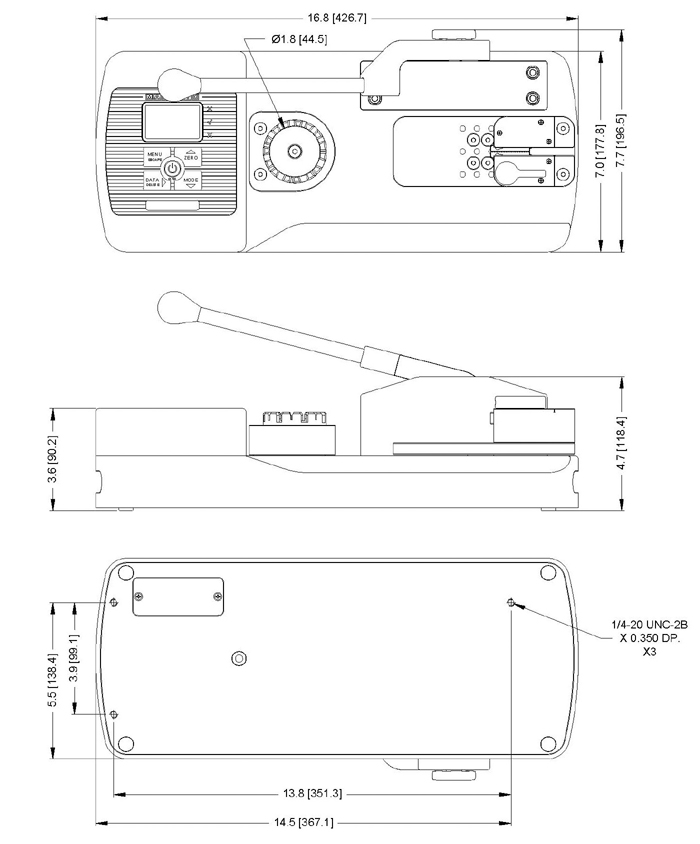

| Model | WT-205 | WT-205M | |||
|---|---|---|---|---|---|
| Capacity x Resolution | 200 x 0.1 lbF 3200 x 2 ozF 100 x 0.05 kgF 1000 x 0.5 N 1 x 0.0005 kN |
200 x 0.1 lbF 3200 x 2 ozF 100 x 0.05 kgF 1000 x 0.5 N 1 x 0.0005 kN |
|||
| Accuracy | ±0.2% of full scale | ||||
| Wire gauge range* | AWG30 - AWG3 [0.01 - 0.25 in (0.3 - 6.3 mm) dia.] | ||||
| Wire diameter range | 0.01 - 0.25 in [0.3 - 6.3 mm] | - | |||
| Minimum sample length | 2.1 in [53.3 mm], excluding termination | ||||
| Maximum sample elongation | 1.7 in [43.2 mm] | 2.3 in [58.4 mm] | |||
| Speed range | - |
|
|||
| Speed setting accuracy | - | ±0.2% | |||
| Speed variation with load | - | ±0% [Stepper motor driven] | |||
| Power | AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage. |
Universal input 80-240 VAC, 50/60 Hz | |||
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
- | |||
| Sampling rate | 7,000 Hz | ||||
| Outputs |
|
|
|||
| Safe overload | 150% of full scale (display shows "OVER" at 110% and above) | Motor stops at 120% of full scale of the force sensor (display shows “OVER” at 110% and above) | |||
| Weight | 16.1 lb [7.3 kg] | 28 lb [12.7 kg] | |||
| Shipping weight | 24.5 lb [11 kg] | 33 lb [15.0 kg] | |||
| Environmental requirements: | 40 - 100°F, max. 96% humidity, non-condensing | ||||
| Warranty | 3 years (see individual statement for further details) | 3 years (see individual statement for further details) | |||
| HS code | 9024100000 | 9024100000 | |||
|
|
||||
| ECCN | EAR99 | EAR99 | |||
| Country of origin | USA | USA | |||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
