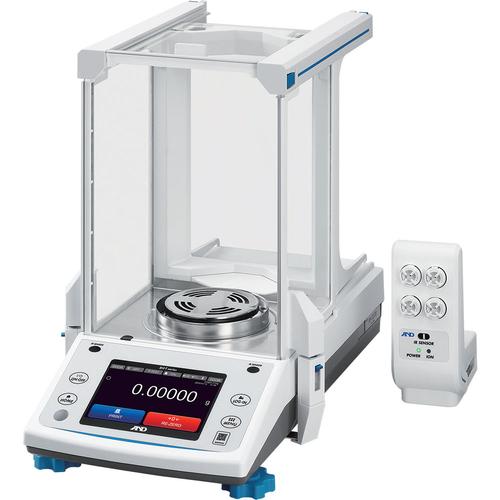

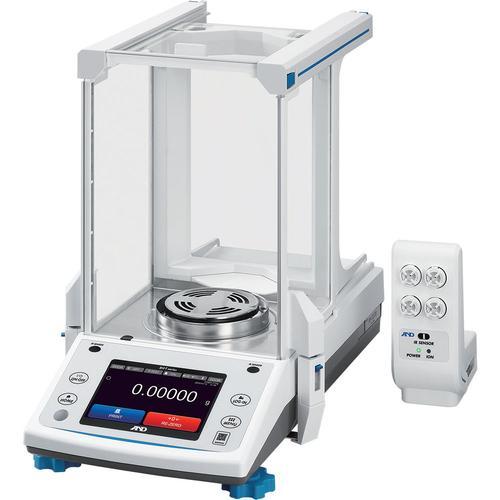

BH-T Series Semi-Micro/Analytical Balances Equipped with a vibrant 5-inch color touchscreen, the BH-T series offers maximum operability, enhanced functionality, and a broader range of solutions for advanced weighing tasks. All models include an external ionizer (static eliminator), automatic doors, multiple draft prevention safeguards, and intuitive navigation to streamline your workflow.

Product Features
• 5-inch Color Touchscreen for maximum operability and enhanced functions
• Standard External Ionizer for removing static from delicate measurement substances
• Draft and Convection Deterrence with concentric slots and high-profile breeze break ring for maximum stability
• Various Application Modes including Formulation, HPLC, and Density measurements

User Benefits
• Automatic Opening/Closing Breeze Break for touchless operation when wearing gloves
• Easy Disassembly Design for fast, efficient cleaning and maintenance of the unit
• Impact Shock Detection (ISD) to help avoid errors or damage due to impact loads
• Operation history for records of user logins, settings adjustments, and ISD history

The side doors of the breeze break can be opened/closed using the non-contact IR sensors on the display unit (or an optional foot switch) for smooth, efficient access to the weighing chamber. You can choose to open either door—or both— by linking the door handle(s) to sliding arm(s), powered by pump and air cylinder technology

Door Handle Simply connect the handle of the door you wish to open/close automatically to the sliding arm below using the latch on the arm, which can be set to open the door fully or halfway

• R Sensors - The IR sensors can also be used for contactless activation of the RE-ZERO or PRINT command
• 5-inch Color Touchscreen - The touch screen enables intuitive operations while making it easy to enter numbers and change settings. The resistive screen responds to pressure so it can be operated even when wearing thick gloves.
• Streamlined Design for Quick and Effortless Balance Cleaning - Each glass pane of the breeze break (including the rear panel), as well as the floor plate, can be easily detached for thorough cleaning/disinfection, thanks to the unique clip system. In addition, the side doors are suspended from the top rather than sliding along grooves, preventing the accumulation of dust/contaminants
• Minimizing the Impact of Drafts and Convection Flows - The weighing pan of the BH-T series features concentric slots that help mitigate convection flows, ensuring highly stable weighing. In addition, 0.01 mg models include two breeze break rings: a high-profile ring for enhanced protection against draft and convection flows, and a low-profile ring for use with items like weighing paper or filters that may touch the taller ring.(Only the low-profile breeze break ring is included with 0.1 mg models)
• Impact Shock Detection (ISD) - ISD detects impact loads on the weight sensor and triggers an audible alert for oversized loads. This helps reduce impact, minimize measurement errors and prevent sensor damage
• External Ionizer for Instant Static Elimination - The provided ionizer, easily ensures sample (and container) is completely free from destabilizing static electricity. Using a DC method, no fan is needed to deliver ions, and therefore no breeze is caused.

Formulation Mode
• - Formulation mode enables quick, accurate weighing of multiple samples to mix according to a set recipe, allowing you to set a target value (g) and tolerance (%) for each sample. Up to 150 samples and 300 recipes can be registered in the balance for easy creation or selection/change of recipes.
• Weighing screen in formulation mode - Instructions prompt you to weigh each sample within its target range. The [SAVE] key to proceed to the next step activates only when the weight is within range, preventing errors.

HPLC Mode
• - HPLC mode facilitates buffer solution preparation for high-performance liquid chromatography. You can specify target sample quantities in molar concentration (mol/L or mmol/L) as well as weight (g). The balance automatically converts between molar concentration and weight—eliminating manual calculation errors
• Recipe edit screen in HPLC mode - Thirteen commonly used samples are preregistered with molecular weight data. Up to 30 additional samples and 300 recipes can be registered

Density Measurement Mode - To measure density, simply enter the water temperature (or liquid density if not using water), then weigh the sample in air and in water using either the AD-1653 density determination kit (sold separately) or the underhook. The balance calculates density automatically. Liquid density can also be measured using a sinker.(A sinker is included as standard with the AD-1653)

Operational Benefits - To prevent unauthorized changes to balance settings/data, users can be assigned to one of four access levels: administrator, lab manager, supervisor, or operator. The administrator can define the extent of user rights for each level: change settings, date/time setting, external sensitivity adjustment, and internal sensitivity adjustment. Up to 100 users can be registered, including the administrator.

History Information - The balance can display or save to a USB flash drive the log-in/log-out history, operation (changes to settings) history, sensitivity adjustment history, and impact shock detection (ISD) history

GLP Custom Output Mode - GLP custom output mode provides flexible customization of GxP-compliant data output. You can create reusable templates for headers, bodies, and footers, tailoring both content and sequence to your specific needs.

Label Output Mode - Label output mode enables connection to a ZPL®/ZPL II®-compatible label printer for text and barcode (CODE128) output. It supports the creation of reusable templates with customizable content, allowing you to choose between text or barcode for each line

• External key input (jack socket) - A separately-sold foot switch can be connected for operation of RE-ZERO, PRINT or the automatic breeze break doors.
• USB (Type-C) for connection with a PC Using internal settings, you can toggle between Quick USB (HID) mode, which allows direct transmission of weighing data to a PC application (e.g., a spreadsheet), and Virtual COM (CDC) mode for bi-directional communication. A 2-meter USB cable is supplied as standard.
• RS-232C (D-Sub 9P)
• Connector for AC adapter
• Bluetooth®3
• Ethernet (TCP/IP)
• USB (Type-A) for USB flash drives
• The Bluetooth® function is currently enabled for the US, Canada and Japan only

Options
• AD-1653 Density determination kit
• AD-1671 Anti-vibration table for balances
• AD-1672/AD-1672A Tabletop breeze break (large)
• AD-1684A Electrostatic field meter
• AD-1687 Weighing environment logger
• AD-1688 Weighing data logger
• AD-8129TH Compact printer
• AX-BHT-31 Display cover for the BH-T series (5 pcs)
• AX-BH-PAN-01 Weighing pan (perforated)
• AX-BH-PAN-02 Weighing pan (non-perforated)
• AX-BM-NEEDLESET Discharge electrode units for the ionizer (a set of 4 pcs)
• AX-HOLDER-SET-B Sample cup holder set (antistatic)
• AX-IR-SWITCH External IR switch
• Can be added to the ionizer if you prefer not to put a hand or sample close to the IR sensor of the ionizer.
• AX-SW137-PRINT Foot switch for PRINT (with connector)
• AX-SW137-REZERO Foot switch for RE-ZERO (with connector)
