Industrial Scales > Crane Scales & Dynamometers > Mechanical Crane Scales | ||||||
|
||||||
OverviewWith tare capacity, ultra-tough construction, max load indicator, dust protection, protective finish, anti-parallax dial and pointer and more. Kilogram versions also available. 500 to 50,000 pound capacities
Capacity x Readability

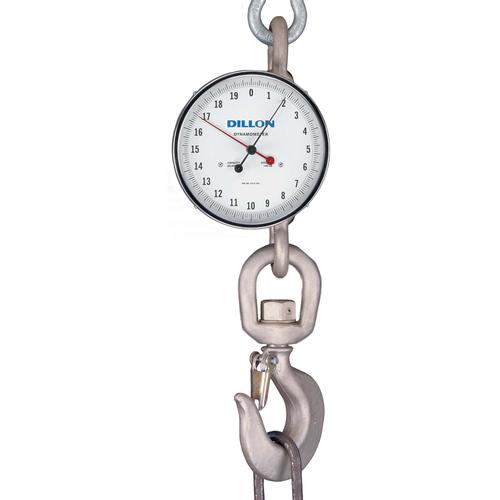

8000 lb x 50 lb This Item Contains the following items
SKU: 30008-0074 |
Available in low, intermediate and high range models in either pound or kilogram models: 13 capacities from 500 to 50,000 pounds and 9 capacities from 200 to 20,000 kg. Anti-parallax dial and pointer - easy to read even at an angle Tare capability - tare loads up to 20% of caqpacity can be zeroed out with zero control Dust protection - pinion gear, sector gear and shafts are mounted in precision aircraft bearings, permanently sealed against dust and dirt. Oiling is never required Tough construction - mechanism case is a heavy aluminum allow casting, tough enough to resist even heavy blows Ingenious design - utilizes a specially designed allow steel beam that translates force to pounds. Full scale reading results from beam deflection of only 0.026. Applied loads are indicated instantly. Reduced wear - pinion and sector gears are cut from stainless steel and hardened aluminum. Use of these dissimilar materials greatly reduces friction and wear Protective finish - scale cases are coated with a baked-on powder paint process making them resistant to chips, scratches, rust and corrosion Maximum indicator - remains in position to indicate peak load point after load is removed from the scale
Ships with crane scale, swivel hook, shackle assembly, maximum pointer, zero adjust, wooden shipping/storage crate and calibration certificate Proven reliability and performance
Part Number |
Capacities & Dial Divisions (lb) |
Part Number |
Capacities & Dial Divisions (kg) |
Length (in inches) |
Net/Gross Weight (in lbs) |
|
LOW |
30008-0017 |
500 x 2 |
30008-0090 |
200 x 1 |
25.5 |
28 / 62 |
30008-0025 |
1000 x 5 |
30008-0108 |
500 x 2 |
25.5 |
28 / 62 |
|
30008-0033 |
2000 x 10 |
30008-0116 |
1000 x 5 |
25.5 |
28 / 62 |
|
30008-0041 |
4000 x 20 |
30008-0124 |
2000 x 10 |
28 / 62 |
$820 | |
30008-0058 |
5000 x 20 |
n/a |
n/a |
25.5 |
28 / 62 |
|
30008-0066 |
6000 x 25 |
n/a |
n/a |
25.5 |
28 / 62 |
|
30008-0074 |
8000 x 50 |
30008-0132 |
4000 x 20 |
25.5 |
28 / 62 |
|
30008-0082 |
10,000 x 50 |
30008-0140 |
5000 x 20 |
25.5 |
28 / 62 |
|
MED |
30387-0018 |
15,000 x 100 |
n/a |
n/a |
29.75 |
48 / 83 |
30387-0026 |
*20,000 x 100 |
30387-0034 |
*10,000 x 50 |
29.75 |
48 / 83 |
|
HIGH |
30361-0018 |
30,000 x 200 |
30361-0042 |
15,000 x 100 |
37.5 |
140 / 175 |
30361-0026 |
40,000 x 200 |
30361-0059 |
*20,000 x 100 |
37.5 |
140 / 175 |
|
30361-0034 |
*50,000 x 200 |
n/a |
n/a |
37.5 |
140 / 175 |
*4:1 ultimate safety factor - all other models have 5:1 ultimate safety factor
Image | Name | Price | ||
---|---|---|---|---|

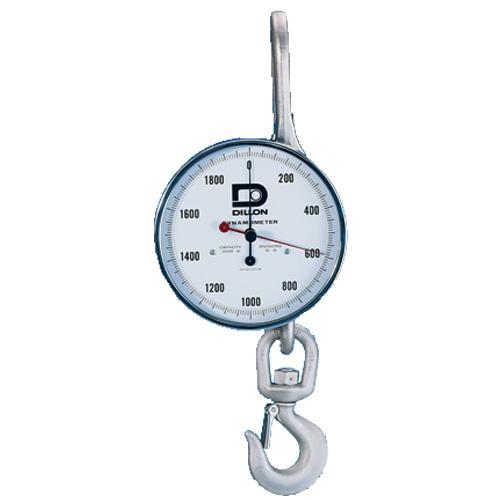

Dillon AP Crane Scale 30008-0066, 6000 x 25 lb
SKU: 30008-0066 Capacity x Readability : 6000 lb x 25 lb More Info |
$1,215.00 |
|||

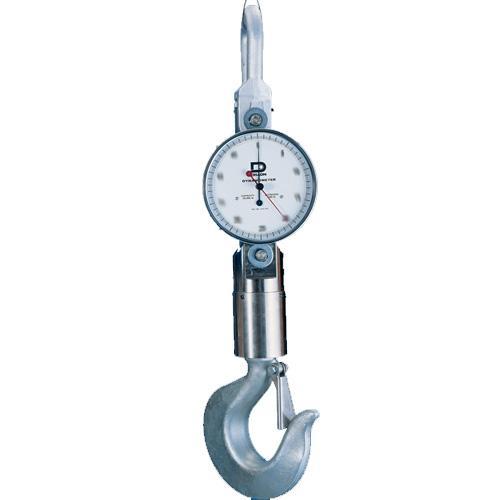

Dillon AP Crane Scale 30361-0018, 30000 x 200 lb
SKU: 30361-0018 Capacity x Readability : 30000 lb x 200 lb More Info |
Call For Price |
|||
Dillon AP Crane Scale 30361-0034, 50000 x 200 lb
SKU: 30361-0034 Capacity x Readability : 50000 lb x 200 lb More Info |
Call For Price |
