| Cubetape Cl200 parcel dimensioner works readily with any shipping software (e.g. UPS WorldShip, FedEx Ship Manager, ADSI Ship-It, etc.) to eliminate the manual data entry of length, width and height. Besides reducing the labor burden brought on by the carrier dimensional weight changes, the accuracy of Cubetape C190SHP parcel dimensioner eliminates the cost to your company of data entry errors more ... |
| Shipping and Receiving > Shipping Scales > Dimensional Scales | ||||||
|
||||||

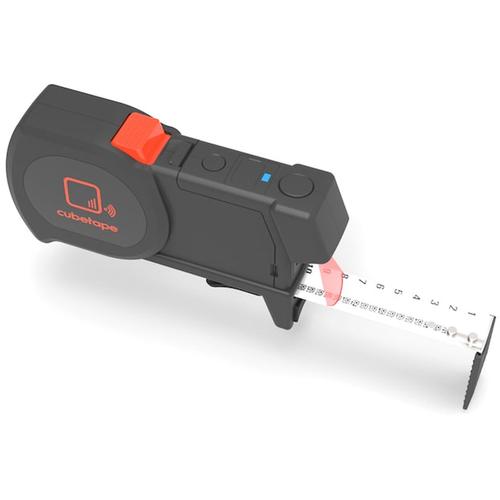

OverviewCubetape Cl200 parcel dimensioner works readily with any shipping software (e.g. UPS WorldShip, FedEx Ship Manager, ADSI Ship-It, etc.) to eliminate the manual data entry of length, width and height. Besides reducing the labor burden brought on by the carrier dimensional weight changes, the accuracy of Cubetape C190SHP parcel dimensioner eliminates the cost to your company of data entry errors
|
||||||
The Cubetape C200L is designed for use in general shipping and freight applications and will:
Cubetape automates the capture and transfer of critical data items needed in shipping and general freight applications and works out of the box with most parcel and shipping applications.
Includes: 3 metre tape cassette, USB Cable, Bluetooth and 2.4G RF Comms, RF USB Dongle, 1200 mAh Li-Po battery
| Dimensioning |
Tape: 11/16 (27mm) x 8ft (2.5m) Output: 1" Round Up, cm Tip: Replaceable regular or bigfoot maxigrip rubber Min/Max: 2" / 4cm, 8ft / 2.5m |
|---|---|
| Scanning |
Image Type: Best in class CMOS Symbologies: All Common 1D |
| Comms | Wireless 2.4G: Long Range PC (200m outdoor line of sight) USB C Port: Data transfer and recharge |
| Functions | Data Packets: Single Item Modes: Online Control Characters: Configurable |
| Power |
Li-Po Battery: 1200mAh, maximum 2 hour recharge, replaceable Duty Cycle: 8 hour minimum @ high duty cycle Standby: 30 day minimum |
| Usability | Single Button: Power/ Scan / Dimension LEDs: Pairing and Power indications Buzzer: Decode/Connect/Config indications |
| Physical | Size: 5.8 x 3.3 x 1.4 in / 146 x 85 x 35mm Weight: 14oz / 400g |
| Regulatory | EMI/RFI: FCC Part 15 Class B, ICES, EU EMC Directive, Taiwan EMC ROHS: Complies 2002/95/EEC |
| Other |
Inclusions: 2.4G USB Dongle, USB C Cable Warranty: 12 months excluding tape cassette Working Temperature: - 20 to 160 F / -30 to +70 C Humidity: 5% to 95% relative humidity (no condensation) Ambient Light: Works in normal indoor and outdoor settings |
| Includes | 3 metre tape cassette, USB Cable, Bluetooth and 2.4G RF Comms, RF USB Dongle, 1200 mAh Li-Po battery |
| Options | Tape Cassette: 16ft / 5m, 24ft / 7.5m Holster Charge Cradle: 1 Way Spares: Battery, Tape Cassettes |
|
||||||||||||||||||||||||||||||||||||
