| Pull testing of wire and tube terminals/crimps, and other slender samples more ... |
Features

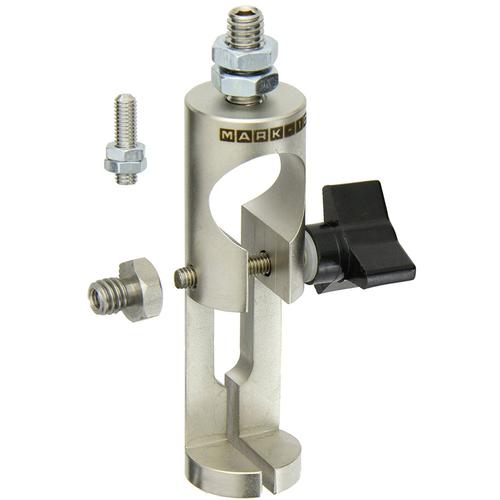

These grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Three wire diameter capacities are available: 0.125, 0.25, and 0.375. Use these grips with the Mark-10 G1002 dual roller grip, and choice of test stands and force gauges to create complete terminal and crimp testing systems.
| Model |
Description |
Price |
| G1001 |
Wire terminal grip, 0 - 0.125 |
$218 |
| G1001-1 |
Wire terminal grip, 0.125 - 0.25 |
$218 |
| Model |
Capacity (lb / N) |
Weight (lb / kg) |
ØA |
B |
C |
D |
| G1001 |
200 / 1000 |
0.29 / 0.13 |
1.0 / 25.4 |
3.4 / 86.4 |
0 - 0.125 / 0 - 3.1 |
1.45 / 36.8 |
| G1001-1 |
0.125 - 0.25 / 3.1 - 6.3 |
