Finally, a low cost yet reliable scale system available to operators for weighing light aircraft to determine center of gravity. Intercomp Introduces the ACII Economy Model Aircraft Weighing System.

This economy model enables you to justify purchasing an ultra efficient scale system versus outsourcing the work to an independent weighing service.

The ACII is built from Intercomp’s fully electronic scale technology. Intercomp has supplied this technology to the world’s major airlines, manufactures, maintenance centers and military branches.

This system consists of three ultralight platform scales and is cabled to the ACII indicator. The large LCD screen allows you to display each platform and total weight. Other push button controls include on/off, percentage of weight and zero.

The ACII operates from both AC and DC power sources and includes a NiCad rechargeable battery
pack and transformer. Both models weigh less than 150 lb/68 kg granting you the ultimate in portability.

Individual platforms are available in either the 4.5k Model with Three 1,500 lb/675 kg, the 7.5K Model with Three 2,500 lb/1,100 kg or the 15k Model with Three 5,000 lb/2,200 kg capacities meaning you can weigh virtually any ultralight, trainer, UAV, single engine or kit airplane.  This high performance scale can easily be calibrated on site by the operator, negating the need to send the system out for required annual calibration.

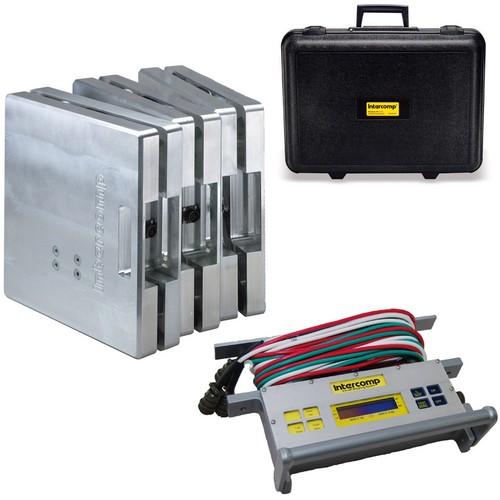

SYSTEM INCLUDES:

1. Set of Three Platform Scales:
   • 15"x15"x2.5"/380x380x51mm for the 4.5k model and 15"x15"x4"/380x380x100mm for the 7.5k and 15k versions.
2. ACII Indicators With Case
3. Interconnect Cables
4. Transformer
5. Batteries

100330	ACII-4.5K Qty. 3 - 1,500 lb/675 kg capacity pads, indicator with case, interconnect cables and transformer (120 or 220 VAC) Platform Size: 15 x 15 x 2.5 inch/ 381 x 381 x 64 mm
100407	ACII-7.5K Qty. 3 - 2,500 lb/1,100 kg capacity pads, indicator with case, interconnect cables and transformer (120 or 220 VAC)Platform Size: 15 x 15 x 4 inch/ 381 x 381 x 100 mm
100416	ACII-15K Qty. 3 - 5,000 lb/2,200 kg capacity pads, indicator with case, interconnect cables and transformer (120 or 220 VAC) Platform Size: 15 x 15 x 4 inch/ 381 x 381 x 100 mm
