Shipping and Receiving > Shipping Scales > UPS and FedEx up to 150 lb | |||||||
|
|||||||
OverviewThe Courier 7000 Series is designed specifically for the needs of manufacturing, distribution, and office shipping. The Courier 7000 Series features intuitive integration with PC-based shipping software so that data is captured accurately and efficiently - every time
Capacity x Readability
Manufature:
OhausNon Legal Mode:100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size 18 x 18 in SKU: 30745877 Weight: 30.00 lb |
Precise Standard Scales for Dedicated Shipping Applications
The Courier 7000 Series is designed specifically for the needs of manufacturing, distribution, and office shipping. The Courier 7000 Series features intuitive integration with PC-based shipping software so that data is captured accurately and efficiently - every time. Simple to use with four-key operation, the Courier 7000 can be quickly setup with UPS WorldShip, FedEx Ship Manager, and other systems via the standard USB-HID interface. Weights can also be integrated into 3rd party software using RS232 output. Additional data connections include Ethernet TCP/IP, 2nd RS232 or choice of Bluetooth or WiFi. The sturdy powder-coated carbon steel frame and thick stainless steel platform ensures years of use in heavy daily shipping use. Precise loadcells and software for NTEP/ Measurement Canada use are included. Ball top and roller top platform options can be used in conveyor and warehousing to reduce operator stress and workload, increasing efficiency The large, bright display clearly shows weights in dimly-lit warehouse and loading dock areas. The indicator comes base mounted but can be attached to a column for display above the platform. A second Remote Display and column can be used to show the results for added verification.
Application Modes
Precise Standard Scales for Dedicated Shipping Applications
Display Hold
Totalization
Weighing
Auto Shut-Off
Auto Standby
Backlight
Battery Power
Environmental Filters
Level Indicator
Leveling Feet
Low Battery Indicator
Overload Protection
Overload/Underload Indicators
Software Lockout
Stability Indicator
Measurement Canada Approved
NTEP Certified
Compliance
Accessories
2 nd RS232 Kit i-C71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745880
Ethernet Kit i-C71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745882
Remote Display AD7-MD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30472063
Ball Top i-C71 for R Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819625
Roller Top i-C71 for R Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819626
Ball Top i-C71 for L Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819627
Ball Top i-C71 for X Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819648
Roller Top i-C71 for L Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819649
Roller Top i-C71 for X Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819650
Remote Column Kit 13 in / 330 mm Painted Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30800931
Remote Column Kit 38.6 in / 980 mm Painted Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30795819
Wi-Fi / Bluetooth Kit i-C71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745881
Cable RS232 IBM 9P Male-to-Female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80500525
SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30064203
Model | i-C71M15R 30745875 |
i-C71M75R 30745876 |
i-C71M50L 30745877 |
i-C71M125L 30745878 |
i-C71M125X 30745879 |
---|---|---|---|---|---|
Capacity x Redability Non-approved | 30 lb x 0.01 lb | 150 lb x 0.05 lb | 100 lb x 0.02 lb | 250 lb x 0.05 lb | 250 lb x 0.05 lb |
15 kg x 0.005 kg | 75 kg x 0.02 kg | 50 kg x 0.01 kg | 125 kg x 0.02 kg | 125 kg x 0.02 kg | |
15,000 g x 5 g | 75,000 g x 20 g | 50,000 g x 10 g | 125,000 g x 20 g | 125,000 g x 20 g | |
30 lb x 0.2 oz | 150 lb x 1 oz | 100 lb x 0.5 oz | 250 lb x 1 oz | 250 lb x 1 oz | |
480 oz x 0.2 oz | 2,400 oz x 1 oz | 1,600 oz x 0.5 oz | 4,000 oz x 1 oz | 4,000 oz x 1 oz | |
Maximum Displayed Resolution | 1:3,000 | 1:3,750 | 1:5,000 | 1:3,000 | 1:6,250 |
Capacity x Redability Legal for Trade | 30 lb x 0.01 lb | 150 lb x 0.05 lb | 100 lb x 0.02 lb | 250 lb x 0.05 lb | 250 lb x 0.05 lb |
15 kg x 0.005 kg | 75 kg x 0.05 kg | 50 kg x 0.01 kg | 125 kg x 0.05 kg | 125 kg x 0.05 kg | |
15,000 g x 5 g | 75,000 g x 50 g | 50,000 g x 10 g | 125,000 g x 50 g | 125,000 g x 50 g | |
480 oz x 0.2 oz | 2,400 oz x 1 oz | 1,600 oz x 0.5 oz | 4,000 oz x 1 oz | 4,000 oz x 1 oz | |
Legal For Trade | NTEP CC 23-013 - Canada Weights and Measures AM-6218 | ||||
Maximum Displayed Resolution Approved (pound) | 1:3,000 | 1:3,000 | 1:5,000 | 1:5,000 | 1:5,000 |
Pan Size | 12 x 14 |
18 x 18 |
24 x 24 |
||
Weighing Units | g, kg, lb, oz, lb:oz | ||||
Application Mode | Weighing, Dynamic/Display Hold, Totalization, Weight Alert™ | ||||
Display | 1.1 in / 28 mm digit height, 6-digit, 7-segment LCD display with white backlight | ||||
Keyboard | 4 mechanical function keys | ||||
Construction | ABS Plastic Indicator Housing Stainless Steel Platform with carbon steel frame and rubber leveling feet |
||||
Stabilization Time | 1 second | ||||
Auto-zero Tracking | Off, 0.5 d, 1 d or 3 d | ||||
Zeroing Range | 2% or 100% of capacity | ||||
Interface | Standard: USB Type-C, RS232, Mini DIN for optional interfaces Optional: 2nd RS232, Ethernet, Wi-Fi/Bluetooth |
||||
Power | Dry cell battery: 4 x AA (LR6) Batteries or AC Power adapter: 100-240VAC ~ 0.5A 50/60Hz; Power output: 5.0 VDC 1.0 A or USB cable (USB connection to PC) Battery life: 70 hours continuous use with backlight off |
||||
Operating Temperature Range | 14 °F to 104 °F / -10 °C to 40 °C | ||||
Safe Overload Capacity | 150% of capacity | ||||
Pan Dimensions | 12.0 x 14.0 in 305 x 355 mm |
18.0 x 18.0 in 457 x 457 mm |
24.0 x 24.0 in 610 x 610 mm |
||
Net Weight | 17.6 lb / 8 kg | 28.6 lb / 14 kg | 71.5 lb / 32 kg | ||
Shipping Weight | 22.5 lb / 10 kg | 39.6 lb / 18 kg | 81.4 lb / 37 kg | ||
Shipping Dimensions | 25.3 x 19.6 x 8.3 in 642 x 497 x 212 mm |
39.1 x 26.8 x 9.3 in 994 x 680 x 235 mm |
45.9 x 30.7 x 9.3 in 1,165 x 780 x 235 mm |
Image | Name | Price | ||
---|---|---|---|---|

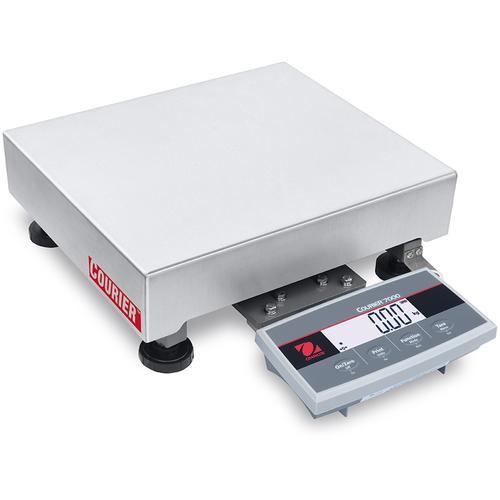

Ohaus i-C71M15R COURIER 7000 12 x 14 in Legal for Trade Dedicated Shipping Scale 30 lb x 0.01 lb
SKU: 30745875 Capacity x Readability : 30 lb x 0.01 lb Legal For Trade: 30 lb x 0.01 lb Pan Size: 12 x 14 in More Info |
$400.00 |
|||

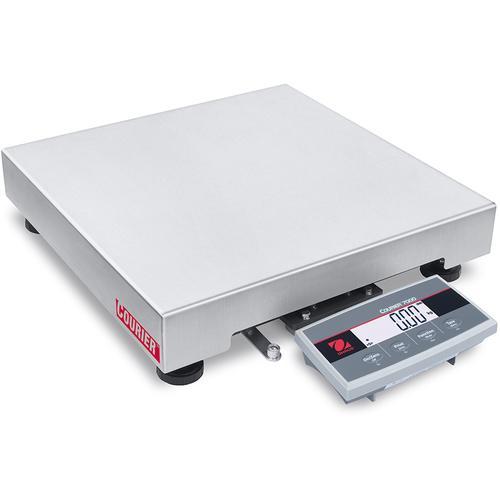

Ohaus i-C71M50L COURIER 7000 18 x 18 in Legal for Trade Dedicated Shipping Scale 100 lb x 0.02 lb
SKU: 30745877 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 18 x 18 in More Info |
$629.30 |
|||
Ohaus i-C71M75R COURIER 7000 12 x 14 in Legal for Trade Dedicated Shipping Scale 150 lb x 0.05 lb
SKU: 30745876 Capacity x Readability : 150 lb x 0.05 lb Legal For Trade: 150 lb x 0.05 lb Pan Size: 12 x 14 in More Info |
$400.00 |
|||

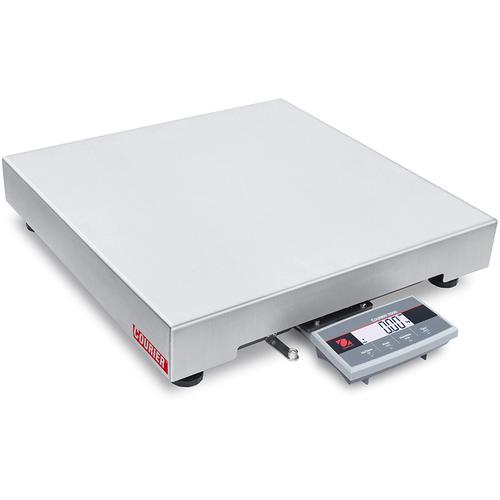

Ohaus i-C71M125X COURIER 7000 24 x 24 in Legal for Trade Dedicated Shipping Scale 250 lb x 0.05 lb
SKU: 30745879 Capacity x Readability : 250 lb x 0.05 lb Legal For Trade: 250 lb x 0.05 lb Pan Size: 2 x 2 ft More Info |
$740.90 |
|||
Ohaus i-C71M125L COURIER 7000 18 x 18 in Legal for Trade Dedicated Shipping Scale 250 lb x 0.05 lb
SKU: 30745878 Capacity x Readability : 250 lb x 0.05 lb Legal For Trade: 250 lb x 0.05 lb Pan Size: 18 x 18 in More Info |
$629.30 |
|
