AND Weighing EJ NEWTON SERIES Compact Balances

AND Weighing >> Laboratory Scales

Specifications Chart

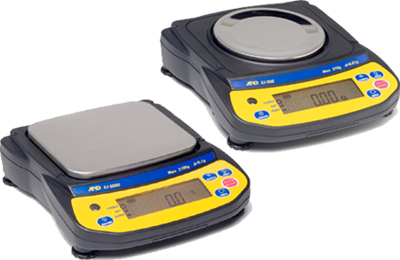

The EJ “Newton” precision compact balances offer a multitude of features for a diverse variety of weighing applications. The Newton provides the performance that users have come to expect from A&D. Quick response, reliability, and alkaline battery powered portability make the Newton a balance that brings precision weighing to a new level of affordability. EJ series balances have the following features:

The EJ series are high-resolution type electronic balances having a display resolution of 1/12,000 ~ 1/60,000.
The balance has a counting function, % function and a comparator function.
The backlight LCD will help with use in a dimly lighted place.
The balance can be operated with an AC adapter, or 4 x “AA” size dry-cell batteries for cordless operation.
The optional RS-232C serial interface can be connected with a printer or personal computer, and Good Laboratory Practice (GLP) data can be obtained.
The optional USB interface is available to connect with a personal computer easily.

AND Weighing EJ NEWTON SERIES Compact Balances

Model

	AND Weighing EJ-02 USB Interface B Connector ( Uni-directional ), add $85.50
	AND Weighing EJ-02C USB Interface with cable (A to B, 5 ft.) ( Uni-directional ), add $87.15
	AND Weighing EJ-03 RS-232 Interface, add $72.00
	AND Weighing EJ-03C RS-232 Interface with cable ( 9 pin 6 ft. ), add $85.50
	AND Weighing EJ-07 Underhook for EJ-3000, 4100. 6100, add $72.00
	AND Weighing EJ-08 Underhook for EJ-1500, 2000, add $72.00
	AND Weighing EJ-11 Breeze Break, add $72.00
	AND Weighing EJ-12 Carrying Case for EJ Newton Scales - except for EJ-123 & EJ-303, add $67.50
*EJ-12 Carrying Case not compatable with the EJ-123

Model	EJ-123	EJ-303	EJ-120	EJ-200	EJ-300	EJ-410	EJ-610	EJ-1202	EJ-3002	EJ-1500	EJ-2000	EJ-3000	EJ-4100	EJ-6100
Model
Price	$303.40	$335.80	$171.80	$213.80	$253.00	$275.40	$338.50	$360.10	$387.10	$171.80	$208.20	$255.80	$276.40	$314.20
Capacity X Readability (g)	120 x 0.001	310 x 0.001	120 x 0.01	210 x 0.01	310 x 0.01	410 x 0.01	610 x 0.01	1200 x 0.01	3100 x 0.01	1500 x 0.1	2100 x 0.1	3100 x 0.1	4100 x 0.1	6100 x 0.1
Repeatability (Std. deviation)	0.003 g	0.003 g	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g	0.03 g	0.03 g	0.1 g	0.1 g	0.1 g	0.1 g	0.1 g
Linearity	±0.003 g	±0.003 g	±0.01 g	±0.01 g	±0.02 g	±0.02 g	±0.02 g	±0.03 g	±0.03 g	±0.1 g	±0.1 g	±0.2 g	±0.2 g	±0.2 g
Sensitivity drift	±20 ppm / °C (10°C-30°C / 50°F-86°F)
No. of samples	5, 10, 25, 50 or 100 pieces
Max. count	12,000 pcs	12,000 pcs	12,000 pcs	21,000 pcs	31,000 pcs	41,000 pcs	61,000 pcs	61,000 pcs	61,000 pcs	15,000 pcs	21,000 pcs	31,000 pcs	41,000 pcs	61,000 pcs
Min. unit weight	0.001 g		0.01 g							0.1 g
Min. % display	0.1 %
Min. 100 % weight	1 g									10 g
Modes	General Purpose, Part Counting, Percent Weighing
Units of Measure	G, oz, ozt, ct, mom, dwt, GN, tl (Hong Kong General), tola
Display	7 segment LCD display with backlight (Character height 16 mm)
Display update	10 times per second
Operating temp.	-10°C-40°C / 14°F-104°F, less than 85% R.H. (non-condensing)
Power supply	AC adapter or 4 x "AA" size dry-cell batteries
Battery operation	Approximately 70 hours (backlight off, alkaline batteries)
Weighing pan size	110 mm Ø							127 mm x 140 mm
Weight	Approximately 1160 g		Approximately 850 g							Approximately 1490 g		Approximately 1100 g
Calibration weight (factory setting)	100 g	300 g	100 g	200 g	300 g	400 g	600 g	1000 g	3000 g	1500 g	2000 g	3000 g	4000 g	6000 g

Model		EJ-123	EJ-303	EJ-120	EJ-200	EJ-300	EJ-410	EJ-610	EJ-1500	EJ-2000	EJ-3000	EJ-4100	EJ-6100
oz	Capacity	4.233	10.935	4.233	7.408	10.935	14.462	21.517	52.91	74.08	109.35	144.62	215.17
oz	Min. display	0.0001	0.0001	0.001	0.001	0.001	0.001	0.001	0.01	0.01	0.01	0.01	0.01
lb	Capacity	-	-	-	-	-	0.9039	1.3448	3.307	4.630	6.834	9.039	13.448
lb	Min. display	-	-	-	-	-	0.0001	0.0001	0.001	0.001	0.001	0.001	0.001
ozt	Capacity	3.858	9.967	3.858	6.752	9.967	13.182	19.612	48.23	67.52	99.67	131.82	196.12
ozt	Min. display	0.0001	0.0001	0.001	0.001	0.001	0.001	0.001	0.01	0.01	0.01	0.01	0.01
ct	Capacity	600.00	1550.00	600.00	1050.00	1550.00	2050.00	3050.00	-	-	-	-	-
ct	Min. display	0.005	0.005	0.05	0.05	0.05	0.05	0.05	-	-	-	-	-
mom	Capacity	-	-	32.000	56.000	82.665	109.335	162.665	400.00	560.00	826.65	1093.35	1626.65
mom	Min. display	-	-	0.005	0.005	0.005	0.005	0.050	0.05	0.05	0.05	0.05	0.05
dwt	Capacity	77.16	199.33	77.16	135.03	199.33	263.64	392.24	964.5	1350.3	1993.3	2636.4	3922.4
dwt	Min. display	0.001	0.001	0.01	0.01	0.01	0.01	0.01	0.1	0.1	0.1	0.1	0.1
GN	Capacity	1851.8	4784.0	1851.8	3240.8	4784.0	6327.2	9413.8	23148	32408	47840	63272	94138
GN	Min. display	0.02	0.02	0.2	0.2	0.2	0.2	0.2	2	2	2	2	2
tl (Hong Kong General)	Capacity	-	-	3.1745	5.5555	8.2010	10.8465	16.1380	39.685	55.555	82.01	108.465	161.380
tl (Hong Kong General)	Min. display	-	-	0.0005	0.0005	0.0005	0.0005	0.0005	0.005	0.005	0.005	0.005	0.005
tola	Capacity	-	-	10.288	18.004	26.578	35.151	52.299	128.6	180.04	265.78	351.51	522.99
tola	Min. display	-	-	0.001	0.001	0.001	0.001	0.001	0.01	0.01	0.01	0.01	0.01
