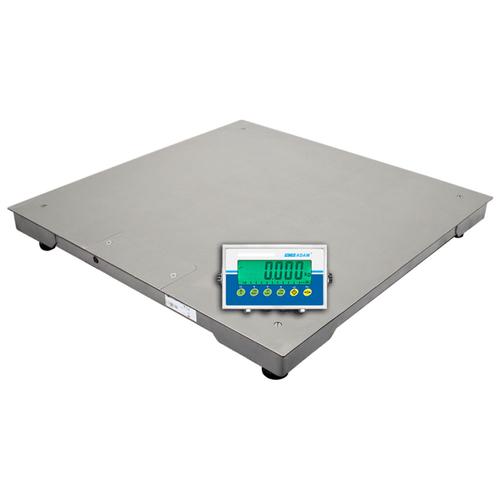

| Adam Equipment PT-SS Stainless-Steel Floor Scales |
Authorized Dealer |
| The range of Stainless Steel Floor Scales from Adam offer a variety of features and combinations to meet your needs, all of which can be integrated into systems or combined with one of Adam Equipment’s many different indicators with features to suit most applications.
|
| Adam Equipment |
|
With rugged construction to endure demanding washdown environments, PT stainless steel platform scales provide the ultimate in durability for a variety of commercial, industrial and mining applications. Ideal for weighing food products, chemicals, pharmaceuticals or mining materials, the PT stainless steel platform features an IP66-rated load cell and stainless steel junction box, sealed for protection against water and dust. Easy to clean, the grade 304 stainless steel plate can tolerate frequent washing, while the sleek brushed surface helps prevent the accumulation of food and dirt particles.
The PT stainless steel scale is supported by a reinforced frame beneath the platform, allowing the scale to accommodate substantial loads. Offering solid, dependable stability, PT stainless steel’s heavy-duty rubber feet are adjustable to compensate for uneven weighing surfaces. Optional ramps are tailor-made to fit the exact size of each platform. PT stainless steel platform can be paired with the AE 403 indicator to provide the features and functions needed for any demanding washdown weighing task.
IP66-rated platform ideal for washdown environments
Features
- Rugged stainless steel construction for ultimate durability
- Approximately three-meter/10-foot shielded cable
- Can be used with any Adam indicators
- Heavy-duty rubber feet ensure stability of unit
- IP66-rated for protection against water and dust
Applications
- Weighing
- Parts counting
- Checkweighing
- Dynamic / animal weighing
- Percentage weighing
- Display hold
- Peak hold
|
|
AE 403 Indicator
 The AE403 indicator is a stainless steel indicator that has a range of features
for many different weighing applications. Whether these indicators are used outdoors, on a loading dock or in a warehouse or industrial buildings the stainless steel housing is sealed for IP67 wash down environments and the quality construction is built tough to handle even the most demanding tasks. The sleek compact design comes complete with the wall mount bracket and hardware to place it where you want it. A built-in rechargeable battery with low battery indicator, check weighing limit LED, an easy-to-use keypad with highlighted tare key and a large backlit display complete the AE403 indicator. |
Features
- Large backlit LCD
- Color coded keys
- Rechargeable battery
- Bi-directional RS-232 interface
- Bracket for wall mounting
- Hold function
- Wash down meets IP67 standards
- Stainless steel housing
- Checkweighing LED lights
- Capacity tracker
|
| Model |
PT-110S-AE403 |
PT-112S-AE403 |
PT-115S-AE403 |
PT-310-5S-AE403 |
PT-312-5S-AE403 |
PT-315-5S-AE403 |
PT-310-10S-AE403 |
PT-312-10S-AE403 |
PT-315-10S-AE403 |
$2,384.00
|
$2,744.00
|
$3,132.00
|
$2,384.00
|
$2,744.00
|
$3,132.00
|
$2,384.00
|
$2,744.00
|
$3,132.00
|
| Capacity x Readability |
2500 x 0.5 lb |
2500 x 0.5 lb |
2500 x 0.5 lb |
5000 x 1 lb |
5000 x 1 lb |
5000 x 1 lb |
10000 x 2 lb |
10000 x 2 lb |
10000 x 2 lb |
| 1000 x 0.2 kg |
1000 x 0.2 kg |
1000 x 0.2 kg |
3000 x 0.5 kg |
3000 x 0.5 kg |
3000 x 0.5 kg |
4500 x 1 kg |
4500 x 1 kg |
4500 x 1 kg |
| Pan size |
39.4" x 39.4"
1000 x 1000 mm |
47.2" x 47.2"
1200 x 1200 mm |
59.1" x 59.1"
1500 x 1500 mm |
39.4" x 39.4"
1000 x 1000 mm |
47.2" x 47.2"
1200 x 1200 mm |
59.1" x 59.1"
1500 x 1500 mm |
39.4" x 39.4"
1000 x 1000 mm |
47.2" x 47.2"
1200 x 1200 mm |
59.1" x 59.1"
1500 x 1500 mm |
| Repeatability S.D. |
1 lb / 0.4 kg |
1 lb / 0.4 kg |
1 lb / 0.4 kg |
2 lb / 1 kg |
2 lb / 1 kg |
2 lb / 1 kg |
4 lb / 2 kg |
4 lb / 2 kg |
4 lb / 2 kg |
| Linearity +/- |
1 lb / 0.4 kg |
1 lb / 0.4 kg |
1 lb / 0.4 kg |
2 lb / 1 kg |
2 lb / 1 kg |
2 lb / 1 kg |
4 lb / 2 kg |
4 lb / 2 kg |
4 lb / 2 kg |
| Weighing Units |
g, kg, lb, lb:oz, oz, N, custom unit |
| Approval |
IP66-rated for protection against water and dust |
| cable |
10 foot |
| Stabilization Time |
2 Sec |
| Power Supply |
12VDC 800mA adapter / Internal rechargeable battery |
| Battery Life (Hours) |
90 |
| Interface |
RS-232 |
| Net Weight |
136.6lb / 62kg |
174.1lb / 79kg |
244.6lb / 111kg |
136.6lb / 62kg |
174.1lb / 79kg |
244.6lb / 111kg |
136.6lb / 62kg |
174.1lb / 79kg |
244.6lb / 111kg |
| Calibration |
External calibration |
| Construction |
Stainless steel |
| Operating Temperature |
-10° to 40°C / 14° to 104°F |
| Display |
Backlit LCD with 1.6"/ 40mm -high digits |
|
×
![]()
|
