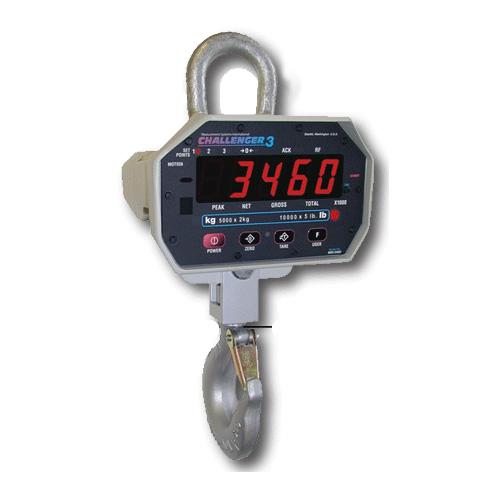

MSI-3460 Crane Scales
Bluetooth and WiFI Models
will NOT work with any MSI Remote Displays
|
 |
| Legal For Trade |
 |
|
Industry’s standard crane scale for light to medium capacity applications The MSI-3460 “ScaleCore” measurement module features the industry leading weighing functions of previous Challenger designs plus much more. Long range viewing is enhanced with an ultra-bright LED digital display with 1.5 inch (38 mm) high digits with resolution settings of up to 10,000 divisions and precision 0.1% loading accuracy across an available capacity range of 250 to 15,000 lbs. Product operating time is extended to over 50 plus hours with a single 6-volt rechargeable battery.
The original signature Challenger packaging has been upgraded to NEMA 4 / IP65 levels. Manufactured in the USA in strict compliance with the highest Safety Standards, Challenger continues to sustain minimum 200% safe and 500% ultimate load ratings.
Available options include: RF remote control, MSI-8000 RF remote display and audible alarm. An electronics retrofit kit is available for customers who wish to upgrade their existing MSI-3260 or MSI-3360 Challengers to the new generation MSI-3460.
The MSI-3460 Crane Scale provides cost-effective light to medium capacity overhead weighing. For higher capacities, heavy duty, outdoor and continuous production use, MSI recommends MSI-4260, MSI-4300, MSI-6260CS or MSI-9300. Note: 15,000 lb (7,500 kg) unit comes standard with 12 ton top shackle.
MSI-3460 Options and Accessories
- RF Remote Controller (typical range 50 feet /15 m)
- Universal Direct Power Supply (115/230 VAC)
- Audible Setpoint Alarm (call)
- Spare Battery and Battery Charger
- Enhanced Resolution
- NTEP Legal for Trade (up to 10,000 lb)
- RF Module for Connectivity with MSI-8000 RF Remote Display
- Optional MSI-8000 RF Remote Display
- Retrofit Kit: Upgrades Models MSI-3260 and MSI-3360 to a MSI-3460
Bluetooth and WiFI Models will NOT work with any MSI Remote Displays
Please contact us for information about connectimg your Bluetooth or WiFI enabled devices to the MSI-7300
[email protected] or 718-336-5900
|
|
| Standard Model |
139102 |
151563 |
139103 |
151564 |
139104 |
139104-10K |
139105 |
| 502887-0001 |
502887-0002 |
502887-0003 |
502887-0004 |
$1,876.00
|
$2,110.50
|
$1,960.00
|
$1,960.00
|
$2,384.00
|
$2,384.00
|
$4,096.15
|
| With RF Remote Controller |
139106 |
151570 |
139107 |
151571 |
139108 |
151572 |
139109 |
| 502887-0005 |
502887-0006 |
502887-0007 |
502887-0008 |
| control for On/Off, Zero, Tare and other funtctions |
$2,293.75
|
$2,542.75
|
$2,393.75
|
$2,655.25
|
$2,789.75
|
$2,789.75
|
$4,216.20
|
| With Modem Install for connectivity to Model MSI-8000 |
139110 |
151573 |
139111 |
151576 |
139112 |
151577 |
139113 |
| 502887-0009 |
502887-0010 |
502887-0011 |
502887-0012 |
$1,992.00
|
$2,241.00
|
$2,092.00
|
$2,353.50
|
$2,456.90
|
$2,488.00
|
$3,914.45
|
| Bluetooth and WiFI Models will NOT work with any MSI Remote Displays |
| With WiFi and ScaleConnect App |
176909-250 |
176909-500 |
176910-1K |
176910-2K |
176911-5K |
176911-10K |
176912 |
$2,036.00
|
$2,290.50
|
$2,124.00
|
$2,389.50
|
$2,504.30
|
$2,853.00
|
$4,080.35
|
| Bluetooth and WiFI Models will NOT work with any MSI Remote Displays |

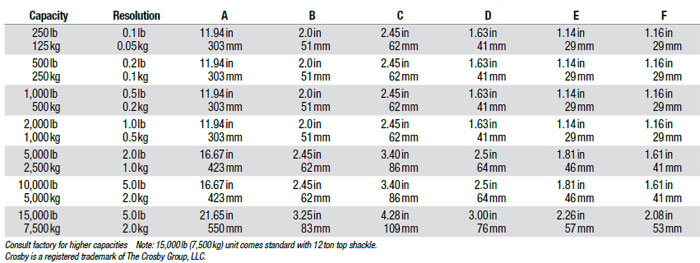

| Specifications |
| Capacity x Readability |
250 x 0.1 lb |
500 x 0.2 lb |
1000 x 0.5 lb |
2000 x 1 lb |
5000 x 2 lb |
10000 x 5 lb |
15000 x 5 lb |
| 125 x 0.05 kg |
250 x 0.1 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
2500 x 1 kg |
5000 x 2 kg |
7000 x 2 kg |
| Accuracy |
± (0.1% +1d) of applied load |
| Legal for Trade |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
- |
| Display |
5 digit, 1.5 inch (38 mm) high LED; programmable brightness control |
| Filtering |
Off, Lo, Hi-1, Hi-2 selectable |
| Units |
Pounds or Kilograms selectable |
| Resolution |
2000-3750 divisions standard (Up to 10,000 d available) |
| Power |
6 Volt Rechargeable Battery (115/230 VAC Rapid Charge Battery Charger included) |
| Operating Time |
Up to 50 hours depending on programmed operating mode |
| Auto-Off Mode |
Select for 15, 30, 45, 60 minutes or Off |
| Auto Sleep Mode |
Power down during non-use and power up with weight change or any key press |
| Service Counter |
Maintains two counters. The first counts number of lifts for inspection reminders and the second counts overloads for safety warnings |
| Operating Temperature Range |
-4° to +122°F (-20° to +50°C) |
| Enclosure |
NEMA 4/IP65, powder coated alodined cast aluminum corrosion resistant |
| Hook |
Crosby 360° non-bearing swivel |
| Safe Overload |
200% of rated capacity |
| Ultimate Overload |
500% of rated capacity |
|
