Rice Lake IQ plus® 2100 Bench Scales Legal for Trade

Call Toll Free:
(800) 832-0055

Quick Jump:

Rice Lake IQ plus® 2100 Bench Scales Legal for Trade
Unmatched Features and Value. The 2100 is ideal for use in general purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knife point, while the NEMA 4X stainless steel indicator enclosure stands up to frequent washdown. Standard overload stops protect the base during heavy use
Rice Lake > Industrial Scales

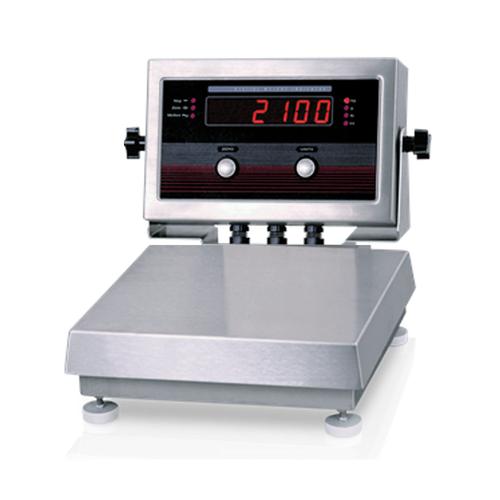

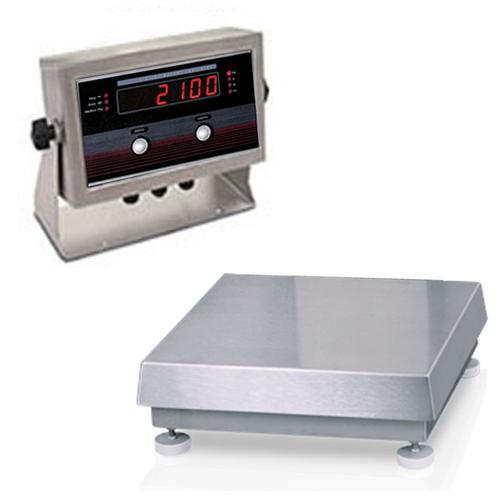

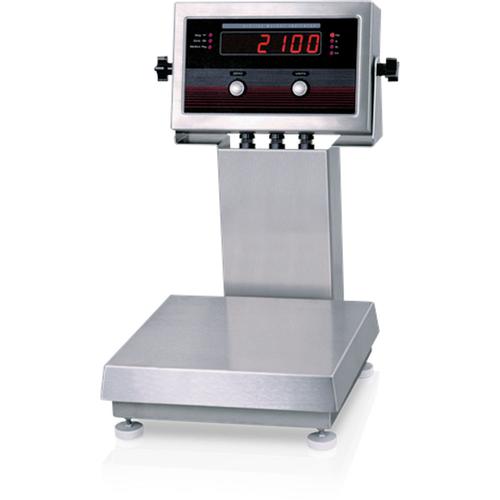

With Tilt Stand	With Attachment Bracket	With Column

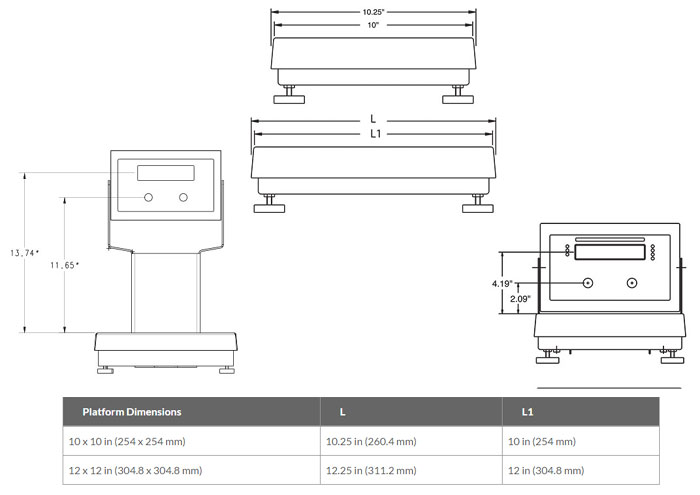

Specifications Chart - 10 X 10, 12 X 12

Specifications Chart - 12 X 18, 18 X 18, 18 X 24, 24 X 24

The IQ plus® 2100

Unmatched Features and Value. The 2100 is ideal for use in general purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knife point, while the NEMA 4X stainless steel indicator enclosure stands up to frequent washdown. Standard overload stops protect the base during heavy use

Rice Lake IQ plus® 2100

Model

Legal For Trade

All operations are controlled through two buttons—zero and units. Push-button zero and a full range of units, including lb/oz, offer the flexibility needed for a wide variety of applications.

Offering the unique capability to read lb and oz simultaneously, the 2100 lends itself to portioning and ingredient weighing. The two-button keypad and vibrant display that is visible from all angles make operation so easy that users are sure to lock in the most accurate weighments.

NEMA Type 4X/IP66
304 stainless steel construction
Large, bold 0.8 in light emitting diode (LED) display
Status annunciators: lb, kg, oz, g, negative, motion, center of zero
1 full-duplex RS-232 port
2 digital inputs for remote zero, print and units
12 in column, attachment bracket or tilt stand for table, wall or under counter mounting
Aluminum, single-point load cell
Overload and upload stops on scale base
Stainless steel, non-tactile feel, piezo zero and units buttons
Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
PreVent™ breather vent
Meets USDA requirements

Model	63053	63052	63051	63050	63049	63043	63042	63041	63040	63039	63048	63047	63046	63045	63044
Model	$1,080.30	$1,080.30	$1,080.30	$1,150.50	$1,150.50	$1,080.30	$1,080.30	$1,056.90	$1,150.50	$1,150.50	$1,080.30	$1,080.30	$1,080.30	$1,150.50	$1,150.50
Capacity x Readability	5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz	10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz	25 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 400 x 0.10 oz	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz	100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz	5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz	10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz	25 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 400 x 0.10 oz	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz	100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz	5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz	10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz	25 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 400 x 0.10 oz	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz	100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz
Size	10 x 10 in			12 x 12 in		10 x 10 in			12 x 12 in		10 x 10 in			12 x 12 in
Includes	Tilt Stand					Attachment Bracket					Column 12 in
Legal For Trade	Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Base: NTEP CC 95-072, Class III 5,000 d
Line Voltages:	115 or 230VAC
Frequency	50 or 60Hz
Power Consumption	70mA at 115VAC (8W) 35mA at 230VAC (8W
Display Resolution	10,000 dd
Digital Inputs	2 inputs, TTL or switch closure, active-low
Digital Filter	Software selectable
Serial Communications	Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; 7 or 8 data bits; even, odd or no parity
Display	6-digit light emitting diode (LED) display. 7-segment, 0.8 in (20mm) digits
LED Annunciators:	Negative value, center of zero, motion, kg, g, lb, oz
Keypad	2 stainless steel piezo switche
Operating Temperature	14° F to 104° F (-10°C to 40°C)
Rating/Material	NEMA Type 4X/IP66, stainless steel
Warranty	Two-year limited warranty
Approvals	Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Measurement Canada AM-5374; UL and C-UL listed Base: NTEP CC 95-072, Class III 5,000 d

Model	72476	72477	72478	72479	72480	72481	72482	72483	72484	72485	72486	72487	72488	72489	72490
Model	$1,340.00	$1,340.00	$1,714.50	$1,714.50	$1,714.50	$1,714.50	$1,624.00	$1,624.00	$1,624.00	$1,624.00	$1,624.00	$1,732.00	$1,732.00	$1,732.00	$1,732.00
Capacity x Readability	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.02 oz	100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.02 oz	150 x 0.05 lb 75 x 0.02 kg 75000 x 20 g 2400 x 0.50 oz	300 x 0.1 lb 150 x 0.05 kg 150000 x 50 g 4800 x 1 oz	500 x 0.1 lb 250 x 0.05 kg 250000 x 50 g 8000 x 2 oz	50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.02 oz	150 x 0.05 lb 75 x 0.02 kg 75000 x 20 g 2400 x 0.50 oz	300 x 0.1 lb 150 x 0.05 kg 150000 x 50 g 4800 x 1 oz	500 x 0.1 lb 250 x 0.05 kg 250000 x 50 g 8000 x 2 oz	1000 x 0.2 lb 500 x 0.1 kg 500000 x 100 g 16000 x 5 oz	150 x 0.05 lb 75 x 0.02 kg 75000 x 20 g 2400 x 0.50 oz	300 x 0.1 lb 150 x 0.05 kg 150000 x 50 g 4800 x 1 oz	500 x 0.1 lb 250 x 0.05 kg 250000 x 50 g 8000 x 2 oz	1000 x 0.2 lb 500 x 0.1 kg 500000 x 100 g 16000 x 5 oz
Size	12 x 18 in		18 x 18 in				18 x 24 in					24 x 24 in
Includes	Column 18 in
Legal For Trade	Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Base: NTEP CC 95-072, Class III 5,000 d
Line Voltages:	115 or 230VAC
Frequency	50 or 60Hz
Power Consumption	70mA at 115VAC (8W) 35mA at 230VAC (8W
Display Resolution	10,000 dd
Digital Inputs	2 inputs, TTL or switch closure, active-low
Digital Filter	Software selectable
Serial Communications	Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; 7 or 8 data bits; even, odd or no parity
Display	6-digit light emitting diode (LED) display. 7-segment, 0.8 in (20mm) digits
LED Annunciators:	Negative value, center of zero, motion, kg, g, lb, oz
Keypad	2 stainless steel piezo switche
Operating Temperature	14° F to 104° F (-10°C to 40°C)
Rating/Material	NEMA Type 4X/IP66, stainless steel
Warranty	Two-year limited warranty
Approvals	Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Measurement Canada AM-5374; UL and C-UL listed Base: NTEP CC 95-072, Class III 5,000 d
