Mark 10 Series 2 Digital Force Gauges
Authorized Dealer

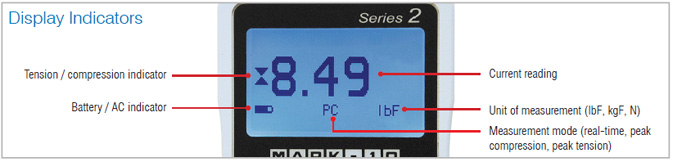

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.
Mark 10 Series 3 Digital Force Gauges

View Specifications Cart

View Grips

View Test Stands

call now

View Mark 10 Force Gauge Comparison Chart

View Specifications Chart

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Features

  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact ergonomic housing
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by 9V battery or available AC adapter
  • Reversible housing for alternate load cell orientation
Mark 10 M2 Series 2 Digital Force Gauges

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

Mark 10  12-1049 Carrying case for M2 Series 2 Force Gauges
Mark 10 12-1049 Carrying case for M2 Series 2 Force Gauges, add $42.75
Mark-10 AC1030 Replacment AC adapter/charger, 110V US
Mark-10 AC1030 Replacment AC adapter/charger, 110V US, add $42.75
Mark-10 23-1031-2 Attachments Kit for M2 Force Gauges from M2-2 to M2-100
Mark-10 23-1031-2 Attachments Kit for M2 Force Gauges from M2-2 to M2-100, add $95.00
Mark-10 23-1031-3 Attachments Kit for M2 Force Gauges from M2-200 to M2-500
Mark-10 23-1031-3 Attachments Kit for M2 Force Gauges from M2-200 to M2-500, add $114.00
Mark-10 AC1032 AC adapter/charger, 220V UK
Mark-10 AC1032 AC adapter/charger, 220V UK, add $42.75
Mark-10 AC1031 AC adapter/charger, 220V Europe
Mark-10 AC1031 AC adapter/charger, 220V Europe, add $42.75
Mark-10 AC1035 AC adapter/charger, 220V AUS
Mark-10 AC1035 AC adapter/charger, 220V AUS, add $42.75
Mark-10 G1024 Extension Rod, 200 lb, 5 in
Mark-10 G1024 Extension Rod, 200 lb, 5 in, add $20.00
Mark-10 G1025 Chisel Point, 200 lb
Mark-10 G1025 Chisel Point, 200 lb, add $20.00
Mark-10 G1026 Cone Point, 200 lb
Mark-10 G1026 Cone Point, 200 lb, add $20.00
Mark-10 G1038 Hook, 200 lb
Mark-10 G1038 Hook, 200 lb, add $15.00
Mark-10 G1039 Thread Adapter, 200 lb
Mark-10 G1039 Thread Adapter, 200 lb, add $15.00
Mark-10 G1029 Flat Head, 200 lb
Mark-10 G1029 Flat Head, 200 lb, add $20.00

Specifications Chart

Model M2-2 M2-5 M2-10 M2-20 M2-50 M2-100 M2-200 M2-500
Price Mark 10  M2-2 Series 2 Ec
$465.50
buy now
Mark 10  M2-5 Series 2 Ec
$465.50
buy now
Mark 10  M2-10 Series 2 E
$465.50
buy now
Mark 10  M2-20 Series 2 E
$465.50
buy now
Mark 10  M2-50 Series 2 E
$465.50
buy now
Mark 10 M2-100 Series 2 E
$465.50
buy now
Mark 10  M2-200 Series 2
$627.00
buy now
Mark 10  M2-500 Series 2
$627.00
buy now
lbF 2 x 0.002 5 x 0.005 10 x 0.01 20 x 0.02 50 x 0.05 100 x 0.1 200 x 0.2 500 x 0.5
kgF 1 x 0.001 2.5 x 0.002 5 x 0.05 10 x 0.01 25 x 0.02 50 x 0.05 100 x 0.1 250 x 0.2
N 10 x 0.01 25 x 0.02 50 x 0.05 100 x 0.1 250 x 0.2 500 x 0.5 1000 x 1 2500 x 0.2
Accuracy ±0.5% of full scale
Sampling 500 Hz
Sampling AC or 9V non-rechargeable battery, with multi-step low battery indicator.
Battery Backlight on / off: up to 24 hours / 92 hours of continuous use
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 0.7 lb [0.33 kg]

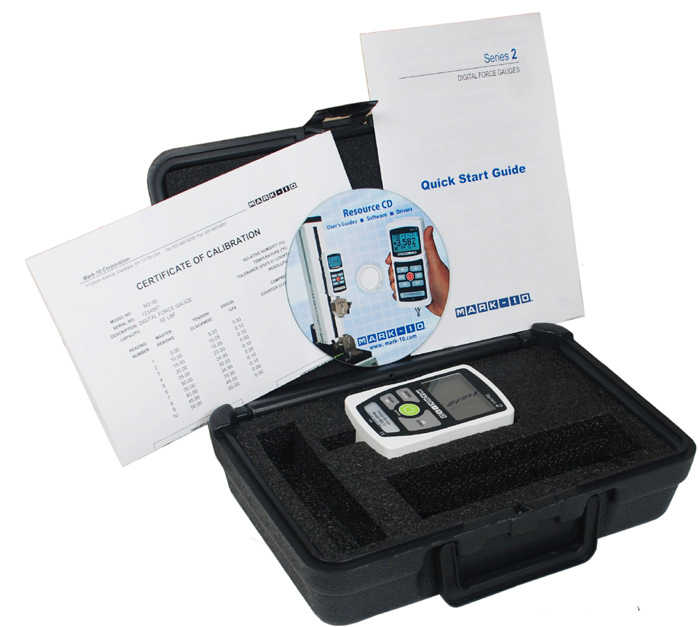

Included Items 9V battery, quick-start guide, resource CD, certificate of conformance.
Enviromnental Requirements 40 - 100°F, max. 96% humidity, non-condensating
Warranty 3 years (see individual statement for further details)
