Mark 10 Series 5 Digital Force Gauges

Force Measurement >> Mark-10

View Spec Cart View Grips View Test Stands View Mark 10 Force Gauge Comparison Chart

Mark 10 Series 5 Digital Force Gauges Model: Select M5-012 $1,676.75 M5-025 $1,676.75 M5-05 $1,339.50 M5-2 $1,187.50 M5-5 $1,187.50 M5-10 $1,187.50 M5-20 $1,187.50 M5-50 $1,187.50 M5-100 $1,187.50 M5-200 $1,339.50 M5-300 $1,339.50 M5-500 $1,339.50 M5-750 $1,615.00 M5-1000 $1,615.00 M5-1500 $1,615.00 M5-2000 $1,615.00    Mark 10 09-1162 Multi-function cable, Series 5,4 to test Stand, add $128.25 Mark-10 09-1163 RS-232, Cable for Series 4/5 Digital Force Gauges, add $76.00 Mark-10 09-1164 Mitutoyo SPC Cable for Series 4/5 Digital Force Gauges, add $76.00 Mark-10 09-1163 RS-232, Cable for Series 4/5 Digital Force Gauges, add $76.00 Mark 10 09-1056 Serial cable, controller to PC, add $28.50 Mark-10 15-1004 MESURGauge Data Collection Software, add $505.40 Mark-10 08-1026 Replacement battery, 8.4V NiMH, for Series 5/4/3 gauges , add $20.00 Mark-10 09-1166 Gauge to Dual Banana Plug Analog Cable, add $76.00 Mark-10 09-1214 Gauge to Test Stand Crosshead Interface Cable, add $128.25

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

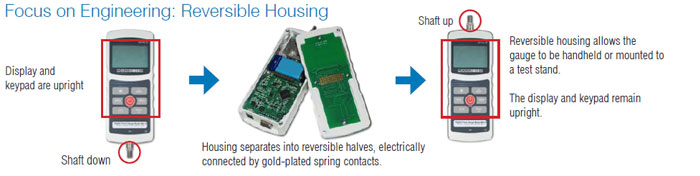

The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software.

Features

• High-speed 7,000 Hz peak sampling rate
• USB, RS-232, Mitutoyo, and analog outputs
• Large backlit graphic display
• 1,000-point data memory with statistics and outputs
• Live load bar graph with set point markers
• Programmable set points, with alarms and outputs

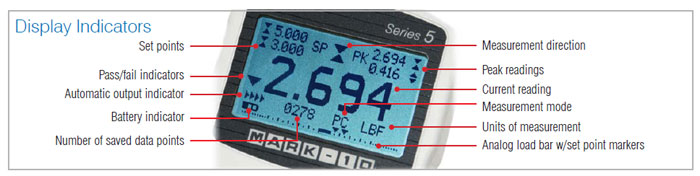

• Peak readings and set points always displayed
• Averaging mode - calculates average readings over time
• External trigger mode - for switch contact testing or remotely stopping display update
• Automatic data output via USB/RS-232
• 5 selectable units of measurement
• Configurable audio alarms and key tones
• Password protection, configurable for individual keys and calibration

Model	M5-012	M5-025	M5-05	M5-2	M5-5	M5-10	M5-20	M5-50	M5-100	M5-200	M5-300	M5-500	M5-750	M5-1000	M5-1500	M5-2000
Price	$1,676.75	$1,676.75	$1,339.50	$1,187.50	$1,187.50	$1,187.50	$1,187.50	$1,187.50	$1,187.50	$1,339.50	$1,339.50	$1,339.50	$1,615.00	$1,615.00	$1,615.00	$1,615.00
Capacity X Resolution lb	0.12 x 0.00002 lb	0.25 x 0.00005 lb	0.5 x 0.0001 lb	2 x 0.0005 lb	5 x 0.001 lb	10 x 0.002 lb	20 x 0.005 lb	50 x 0.01 lb	100 x 0.02 lb	200 x 0.05 lb	300 x 0.1 lb	500 x 0.1 lb	750 x 0.5 lb	1000 x 0.5 lb	1500 x 1 lb	2000 x 1 lb
Capacity X Resolution oz	2 x 0.0005 oz	4 x 0.001 oz	8 x 0.002 oz	32 x 0.01 oz	80 x 0.02 oz	160 x 0.05 oz	320 x 0.1 oz	800 x 0.2 oz	1600 x 0.5 oz	3200 x 1 oz	4800 x 2 oz	8000 x 2 oz	12000 x 10 oz	16000 x 5 oz	24000 x 20 oz	32000 x 20 oz
Capacity X Resolution kg	-	-	-	1 x 0.0002 kg	2.5 x 0.0005 kg	5 x 0.001 kg	10 x 0.002 kg	25 x 0.005 kg	50 x 0.01 kg	100 x 0.02 kg	150 x 0.05 kg	250 x 0.05 kg	375 x 0.2 kg	500 x 0.2 kg	750 x 0.5 kg	1000 x 0.5 kg
Capacity X Resolution g	50 x 0.01 g	100 x 0.02 g	250 x 0.05 g	1000 x 0.2 g	2500 x 0.5 g	5000 x 1 g	10000 x 2 g	25000 x 5 g	50000 x 10 g	-	-	-	-	-	-	-
Capacity X Resolution N	0.5 x 0.0001 N	1 x 0.0002 N	2.5 x 0.0005 N	10 x 0.002 N	25 x 0.005 N	50 x 0.01 N	100 x 0.02 N	250 x 0.05 N	500 x 0.1 N	1000 x 0.2 N	1500 x 0.5 N	2500 x 0.5 N	3750 x 2 N	5000 x 2 N	7500 x 5 N	10000 x 5 N
Capacity X Resolution kN	-	-	-	-	-	-	-	-	-	1 x 0.0002 kN	2.5 x 0.0005 kN	1.5 x 0.0005 kN	3.75 x 0.002 kN	5 x 0.002 kN	7.5 x 0.005 kN	10 x 0.005 kN
Capacity X Resolution mN	500 x 0.1 mN	1000 x 0.2 mN	2500 x 0.5 mN	-	-	-	-	-	-	-	-	-	-	-	-	-
Accuracy	±0.1% of full scale ±1 digit
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low All models include 110V AC adapters. euro plug (220V) or UK plug (220V) avaliable.
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lb, oz, g, kg, N, kN, mN (depending on model)
Outputs	USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices Analog: ±1 VCD, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input Set points: Three open drain lines
Configurable settings	Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload	150% of full scale (display shows “OVLD” at 110% and above)
Weight (gauge only)	1.0 lb [0.45 kg]									1.2 lb [0.54 kg]				1.8 lb [0.82 kg]
Included items	Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide,USB cable, resource CD (USB driver, MESURgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data.
Warranty	3 years (see individual statement for further details)
Model	M5-012	M5-025	M5-05	M5-2	M5-5	M5-10	M5-20	M5-50	M5-100	M5-200	M5-300	M5-500	M5-750	M5-1000	M5-1500	M5-2000
Included Extension Rods	G1024									G1031
Included Cone	G1026									G1033
Included Chisel	G1025									G1032
Included V-Groove	G1027									G1034
Included Flat	G1029									G1036
Included Hook	G1028							G1038		G1035			G1042		-
Included Coupling	-							G1039		G1037			-
Thread Adapter	-													G1041

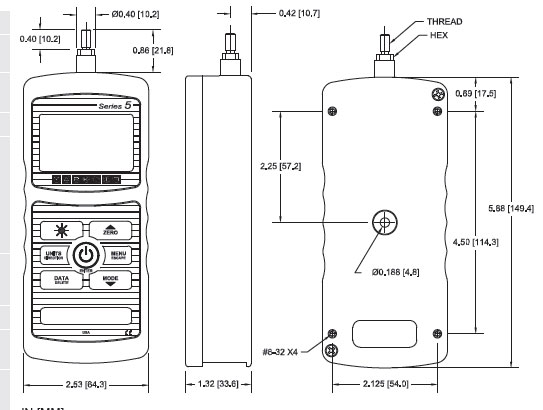

M5-012 -M5-500

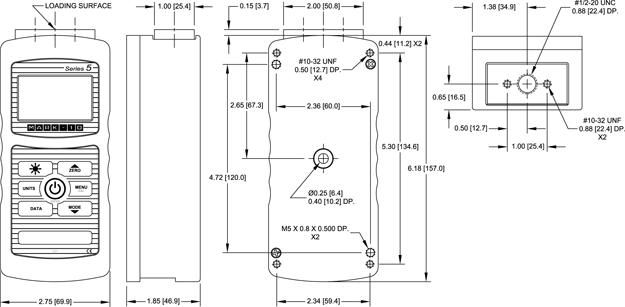

M5-1000,M5-2000
