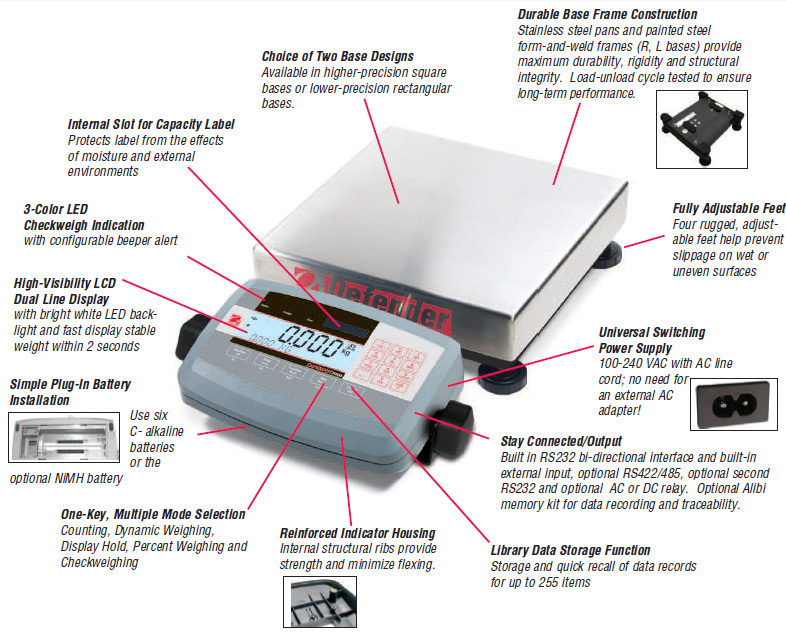

OverviewThe OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, available either in a dry-use plastic T71P, or as the NEMA 4X/IP66 stainless steel T71XW. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers aa advanced multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications.
|
The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, available either in a dry-use plastic T71P, or as the NEMA 4X/IP66 stainless steel T71XW. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers aa advanced multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations. The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P advanced indicator with painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. Features
Specifications
Model Number |
D71P-10Q-R5 | D71P-25Q-R5 | D71P-50Q-L5 | D71P-100Q-L5 | D71P-250Q-X5 |
---|---|---|---|---|---|
Capacity x Readability |
25 lb x 0.002 lb | 50 lb x 0.005 lb | 100 lb x 0.01 lb | 250 lb x 0.02 lb | 500 lb x 0.05 lb |
400 oz x 0.05 oz | 800 oz x 0.1 oz | 1600 oz x 0.2 oz | 4000 oz x .5 oz | 8000 oz x 1 oz | |
25 lb : 0.05 oz | 50 lb x 0.1 oz | 160 lb : 0.2 oz | 250 lb : .5 oz | 500 lb : 1 oz | |
10 kg x 0.001 kg | 25 kg x 0.002 kg | 50 kg x 0.005 kg | 100 kg x 0.01 kg | 250 kg x 0.02 kg | |
10000 g x 1 g | 25000 g x 2 g | 50000 g x 5 g | 100000 g x 10 g | 250000 g x 20 g | |
Maximum Displayed Resolution |
1:12500 | 1:12500 | 1:10000 | 1:12500 | 1:12500 |

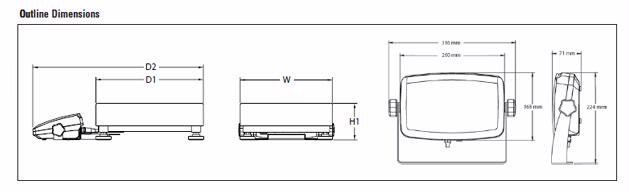

Scale Dimensions |
12 x 3.7 x 12 x 20.8 in 305 x 95 x 305 x 530 mm |
18 x 4.5 x 18 x 26.8 in 457 x 115 x 457 x 680 mm |
24 x 5.4 x 24 x 32.8 in 610 x 137 x 610 x 833 mm |
||
Shipping Dimensions |
19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm |
31.2 x 23.6 x 9.5 in 810 x 600 x 240 mm |
39.4 x 29.9 x 9.8 in 1000 x 760 x 250 mm |
||
Net Weight | 30.6 lb / 13.9 kg | 63.7 lb / 28.9 kg | 80.9 lb / 36.7 kg | ||
Shipping Weight | 35.9 lb / 16.3 kg | 68.5 lb / 31.1 kg | 95.0 lb / 43.1 kg | ||
Indicator Model | T71P | ||||
Housing | ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum load cell, painted steel mounting bracket and base construction | ||||
Safe Overload Capacity | 150% of maximum capacity | ||||
Weighing Units | lb, oz, lb:oz, kg, g, custom unit | ||||
Modes/Features | Static Weighting (single ordual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display hold, Accumulation, Library | ||||
Display | 6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight | ||||
Keyboard | Positive feedback membrane keys, 5 function keys and alpha-numeric keypad | ||||
Stabilization Time | Within 2 seconds | ||||
Auto-zero Tracking | Off, 0.5, 1 or 3 d | ||||
Zeroing Range | 2% or 100% of capacity | ||||
Calibration | Span: 1 kg or 1 lb to 100% of capacity / 3-point linearity (0 - 50% - 100% fixed) | ||||
Power | 100-240 VAC / 50-60Hz internal universal power supply, 6 'C' Cell batteries (not supplied) with 80 hour life | ||||
Interface | RS232 and external input | ||||
Operating Temperature Range | 14ºF to 104ºF / -10ºC to 40ºC |
$1,945.78 |
|
