Scales > Industrial Scales > Bench Scales | ||||||
|
||||||

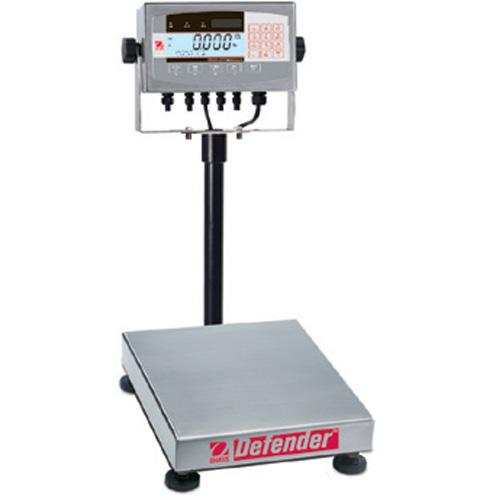

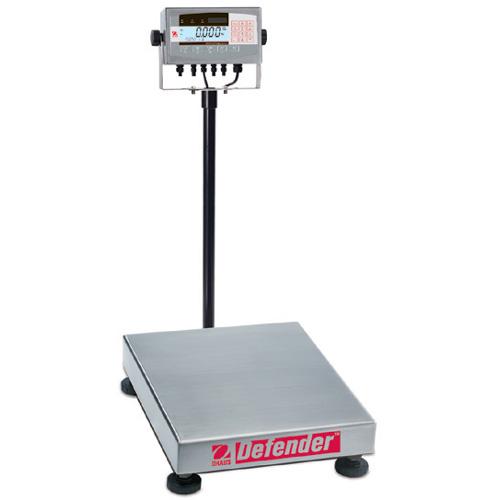

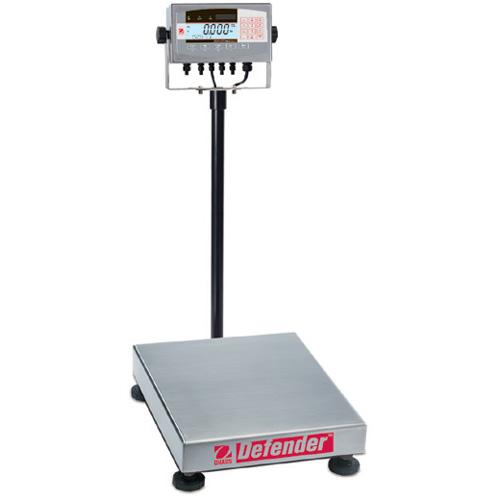

OverviewThe OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW advanced indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications.
|
The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations. The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW advanced indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. Standard Features
Model Number |
D71X-W15-HR1 | D71X-W30-HR1 | D71X-W60-HR1 | D71X-W60-HL2 | D71X-W100-HL2 | D71X-W150-HX2 | D71X-W300-HX2 |
---|---|---|---|---|---|---|---|
Capacity x Readability |
30 lb x 0.005 lb | 60 lb x 0.0 1lb | 150 lb x 0.02 lb | 250 lb x 0.05 lb | 300 lb x 0.05 lb | 600 lb x 0.1 lb | |
480 oz x 0.1 oz | 960 oz x 0.2 oz | 2400 oz x 0.5 oz | 4000 oz x 1 oz | 4800 oz x 1 oz | 9600 oz x 2 oz | ||
30 lb : 0.1 oz | 60 lb x 0.2 oz | 150 lb : 0.5 oz | 250 lb : 1 oz | 300 lb : 1 oz | 600 lb : 2 oz | ||
15 kg x 0.002 kg | 30 kg x 0.005 kg | 60 kg x 0.01 kg | 100 kg x 0.02 kg | 150 kg x 0.02 kg | 300 kg x 0.05 kg | ||
15000 g x 2 g | 30000 g x 5 g | 60000 g x 10 g | 100000 g x 20 g | 150000 g x 20 g | 300000 g x 50 g | ||
Maximum Displayed Resolution |
1:7500 | 1:6000 | 1:7500 | 1:5000 | 1:7500 | 1:6000 | |

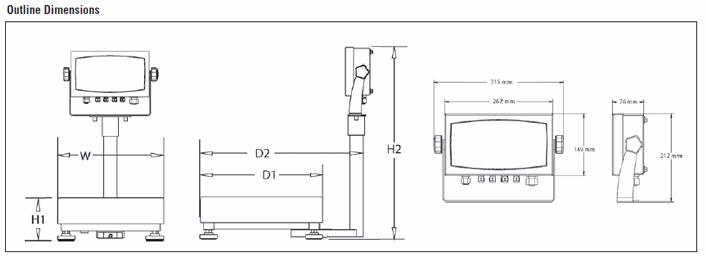

Scale Dimensions |
12 x 3.7 x 23.6 x 14 x 18.7 in 305 x 95 x 600 x 355 x 475 mm |
15.7 x 4.1 x 37 x 19.7 x 24.4 in 400 x 105 x 940 x 500 x 620 mm |
16.5 x 4.9 x 37 x 21.7 x 26.4 in 420 x 125 x 940 x 550 x 670 mm |
||||
Shipping Dimensions |
19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm |
29.1 x 27.2 x 9.1 in 740 x 690 x 230 mm |
29.5 x 30 x 9.1 in 750 x 710 x 230 mm |
||||
Net Weight | 28.4 lb / 12.9 kg | 52.2 lb / 23.7 kg | 64.1 lb / 29.1 kg | ||||
Shipping Weight | 33.3 lb / 15.1 kg | 59.5 lb / 27 kg | 70.7 lb / 32.1 kg | ||||
Indicator Model | T71XW | Column | 13.8 in / 350 mm stainless steel | 26.8 in / 680 mm stainless steel | |||
Construction | Stainless steel indicator, removable weighing platform, painted steel column and base construction, aluminum loadcell | ||||||
Safe Overload Capacity | 150% of maximum capacity | ||||||
Protection | NEMA 4X/IP66 for indicator, IP67 for loadcell | Weighing Units | lb, oz, lb:oz, kg, g, custom unit | ||||
Modes/Features | Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library | ||||||
Display | 6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight | ||||||
Keypad | Positive feedback membrane keys, 5 function keys and alpha-numeric keypad | ||||||
Stabilization Time | Within 2 seconds | ||||||
Auto-zero Tracking | Off, 0.5, 1 or 3 d | ||||||
Zeroing Range | 2% or 100% of capacity | ||||||
Calibration | Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point | ||||||
Power | 100-240 VAC / 50-60Hz internal universal power supply | ||||||
Interface | RS232 and external input | ||||||
Operating Temperature Range | 14°F to 104°F / -10°C to 40°C |
$1,576.89 |
|
