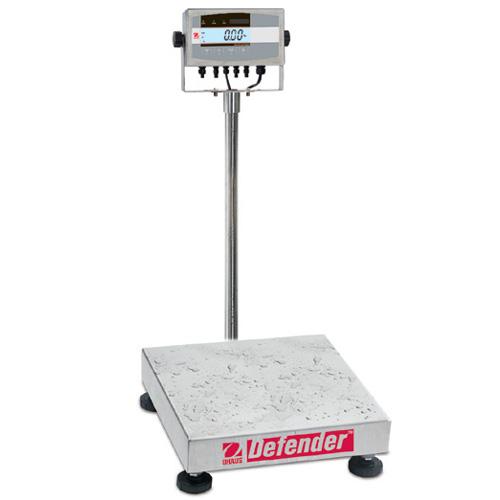

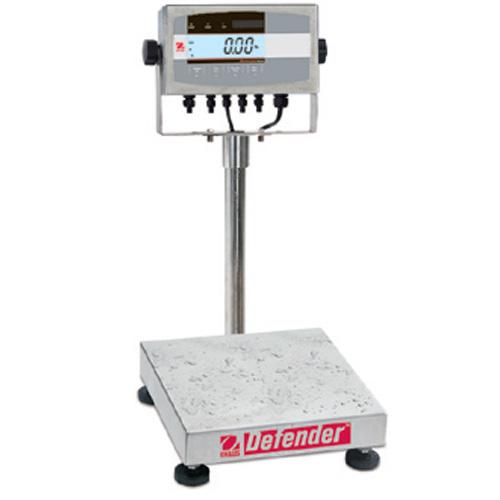

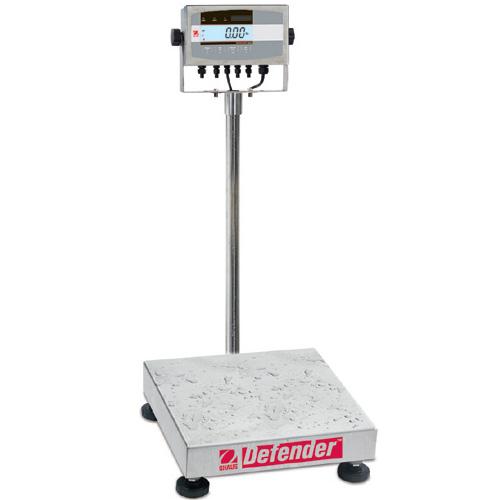

Ohaus D51XW250WX4 Defender 5000XW Extreme Square Washdown Scales, 500lb x 0.05lb

Features

The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining a stainless steel D51XW indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for production, packaging and general commercial and industrial weighing applications where full washdown protection is required, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged steel construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.

The Defender 5000 Offers Multiple Features and Easy Configuration:

To meet different operational needs, the Defender 5000 includes a suite of configurable software:

Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:300,000 (minimum APW equal to 0.1d), selectable autooptimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
Dynamic/Animal Weighing with selectable weigh times from 0-60 seconds
Checkweighing function for packaging and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range.
Target weight values can be displayed at any time using a quick key press
Display Hold mode for weighing large packages holds last stable weight on display until cleared
The Defender 5000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
It supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 5000 features selectable print options for data and print format
To limit operator access to functions, the Defender 5000 offers both software lockouts for menu items as well as individual key functions.

Model Number	D51XW10WR3	D51XW25WR3	D51XW50WL4	D51XW100WL4	D51XW250WX4
Default Capacity x Readability (lb / kg)	25lb x 0.002lb / 3 kg x 0.0005 kg	15 lb x 0.002 lb / 6 kg x 0.001 kg	30 lb x 0.005 lb / 15 kg x 0.002 kg	60 lb x 0.01 lb / 30 kg x 0.005 kg	500 lb x 0.05 lb / 250kg x 0.02 kg
Max Displayed Resolution	1:12500	1:12500	1:10000	1:12500	1:12500
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Mode	Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Display	1 in / 25mm high 6-digit, 7-segment bright white backlit LCD
Auto Zero Tracking	Off, 0.5, 1 or 3 d
Keyboard	4-button membrane switch
Construction	Stainless steel indicator, removable weighing platform, column, base construction and loadcell
Interface	RS232 and external tare input
Protection	NEMA 4X/IP66 for indicator, IP67 for loadcell
Dimensions (W x H x D)	12 x 3.7 x 23.2 x 12 x 16.7 in		18 x 4.5 x 37 x 18 x 22.7 in		24 x 5.4 x 37 x 24 x 28.7 in
Weight (lb/kg)	35.5 lb		69.6 lb		86.8 lb
Operating Temperature	14°F to 104°F / -10°C to 40°C

Other Models

Ohaus D51XW10WR3 Defender 5000XW Extreme Square Washdown Scales, 25lb x 0.002lb

$1,266.88

Ohaus D51XW25WR3 Defender 5000XW Extreme Square Washdown Scales, 50lb x .005lb

$1,289.82

Ohaus D51XW250WX4 Defender 5000XW Extreme Square Washdown Scales, 500lb x 0.05lb

You are viewing this product

$2,861.33

Ohaus D51XW100WL4 Defender 5000XW Extreme Square Washdown Scales, 250lb x 0.2lb

$2,499.56
