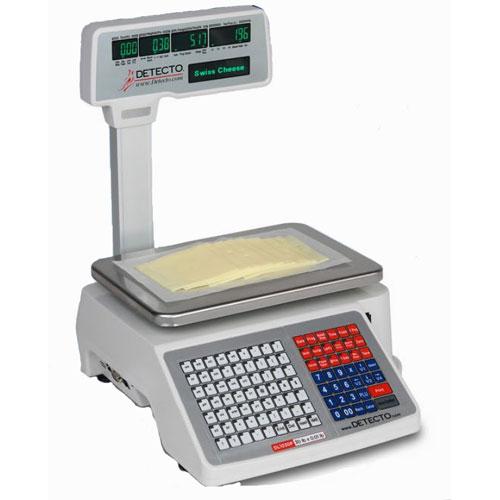

Detecto DL1060P NTEP Digital Tower Pole Price Computing Printing Scale, 60 lb x 0.02 lb
DETECTO’s versatile DL series
price computing scales
with integral label printers
are designed for highly customizable
retail use in delis,
supermarkets, produce sections,
convenience stores, and grocery
store meat sections. more ...
ALL-IN-ONE PRICE COMPUTING AND LABEL PRINTING SCALE
DETECTO’s versatile DL series
price computing scales
with integral label printers
are designed for highly customizable
retail use in delis,
supermarkets, produce sections,
convenience stores, and grocery
store meat sections. With 5,990
PLUs and 2-MB memory, the DL
series is economical, durable,
user-friendly and incorporates all
of the essential features needed
for legal-for-trade weighing and
label printing.
VIVID DISPLAY
Bright green, easy-to-read LED
display readouts ensure visual
accuracy for both the operator
and the customer. The 5-window
display includes 1 dot matrix
message display.

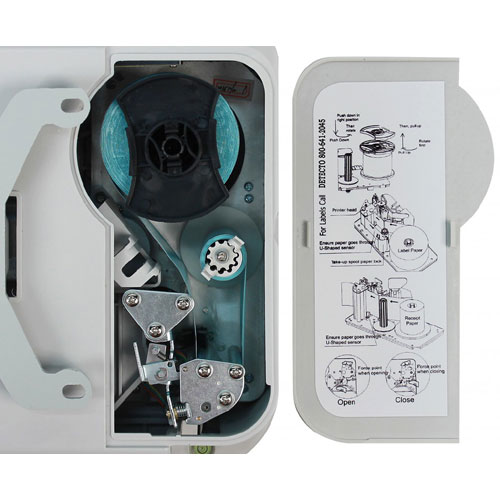

CUSTOMIZE WHAT YOU PRINT
DETECTO’s DL series
prints labels in a
wide variety of styles,
sizes, and printed
information: bar codes,
QR codes, safe handling
images, ingredients,
weights, date formats
with month/day or
time, nutritional facts,
discounts, logos,
and more.
50 label types available
via included software
with the DL serie
INCLUDES PC SOFTWARE
DETECTO’s DL retail scale is as
intuitive to set up as it is to use,
simplifying both management
and employees tasks. The scale
comes with versatile PC setup
software and networking
capabilities allowing you to make
updates to multiple scales for your
facility. Customized reporting
features provide you with all the
information you require to make
your accurate business decisions
for your store.
Flexible and easy-to-use PC software with
drag-and-drop graphics set-up:
Over 50 label types are available to set
up via included software
Simplified exporting and importing
PLUs to and from Excel
Full control over PLU data

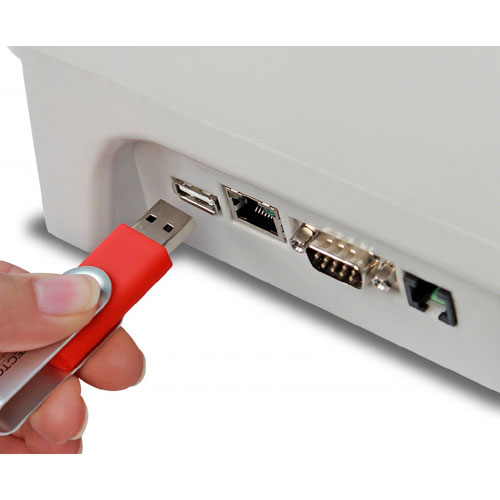

Easy firmware USB upgrades using USB
drive (flash memory) with no need to
break the NTEP inspection seal
Full back up of all specifications
(duplicates a scale’s setup in minutes)
Each PLU can easily be created, viewed,
and modified within the DLX50 utility. PLUs
created at the scale can be imported to the
utility and viewed/modified as well
PLU and setup information can be
imported and exported via RS232, USB,
or Ethernet at the click of a button
Custom bitmap graphics can be loaded onto
the DL Series scales for use in label printing.
Labels have fully customizable layouts
and font sizes by use of this user-friendly
graphic interface.
This graphic display allows PLUs to be
quickly assigned to quick keys. This page
can then be printed and used as the
quick key overlay for the DL Series scale
EXTENSIVE CONNECTIVITY AVAILABLE
The DL Series comes with four communication
ports to accommodate the interface
requirements of various integration
communication setups.
WHATS INCLUDED
Scale
Operation manual
DL series set-up utility CD
for PC software
Four (4) overlays for PLU
shortcuts
AC power cord
Model Number
DL-1030
DL-1030P
DL-1060
DL-1060P
Capacity x Readability
30 lb x 0.01 lb
30 lb x 0.01 lb With Tower Pole Display
60 lb x 0.02 lb
60 lb x 0.02 lb With Tower Pole Display
Display
Front – 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters); Back: 4 seven-segment LED screens
Front – 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters);
Back: 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters)
Display Digits
4 digit Tare, 6 digit Unit Price, 5 digit Weight, 6 digit Total Price
Max PLU
5,990 PLUs
Total Keys
89
103
Speed Keys
40 (doubles to 80 when pressing SHIFT +
the quick key for a second PLU from the same key)
63 (doubles to 126 when pressing SHIFT +
the quick key for a second PLU from the same key)
Measurement Type
Load Cell
Printer
Thermal
Label Size
Width: 40 mm – 60 mm; Length: 128 mm
Interface

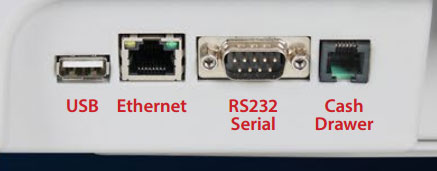

USB, Ethernet, RS232 serial, and cash drawer port
Power Source
120VAC, 50-60 Hz (AC power cord included)
Operating Temperature
32° F – 104° F / 0° C – 40° C
Operating Humidity
15% - 85% relative humidity non-condensing
Construction
Stainless steel platform and ABS plastic scale enclosure
Platform Size
12.8 in W X 8.9 in D / 32.5 cm W X 22.6 cm D
Overall Dimensions
13.8 in W x 15.5 in D x 6.8 in H /
35.1 cm W X 39.4 cm D X 17.3 cm H
13.8 in W x 17.4 in D x 18.1 in H /
35.1 cm W X 44.2 cm D X 46 cm H
